Matt Painted Carbon Fibre Tubes Wound Plain Weave 3K

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: Carbon Fibre Tubes Wound Length: 0~2000mm
Surface: Black Glossy/matte Surface/painted Material: 100% Carbon Fiber
Feature: Light Weight High Strength Weave: 3K Plain / 3K Twill
Working Temperature: Usually, -30-120 Degrees
High Light:

Matt Painted Carbon Fibre Tube

,

Wound Plain Weave Carbon Fibre Pole

,

3K Pultruded Carbon Fiber Tube

Product Description

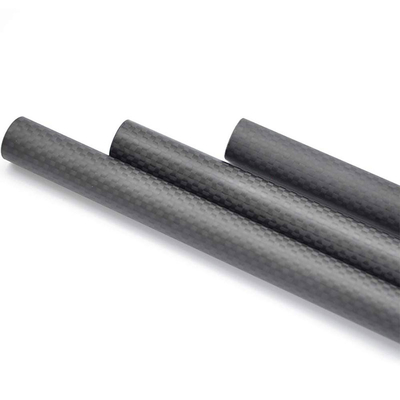

High performance carbon fibre tubes wound, plain weave (3k) matt painted



These carbon fiber tubes are tightly wound when roll-wrapped for a low resin content 100% carbon fiber continuous tube. Each tube's inner and outer diameter specifications are very accurate. These ultra stiff and lightweight tubes make excellent spars or drone arms/gimbal parts.



Roll wrapped carbon fibre tubes with a smooth surface finish made of 3k carbon fabric prepreg in plain weave, clear-coated matt. Subjacent layers from unidirectional non-crimp fabric. High-quality epoxy resin matrix.



Roll wrapped carbon fiber tubes are universally strong and can tolerate all forces equally. Unlike carbon fiber pultruded tubes they can withstand twist (torque) force, compression, tension and deflection without splitting. This is because the fibres have been wound around the diameter of the tube as well as running length ways. First the tube mandrel is wound with unidirectional carbon fibre around the diameter, then it is wrapped with the fibres running the length (longitudinally), finally it is finished with a wrap of 3K twill before it is cured in an autoclave, roll sanded and recoated with epoxy.



Carbon fiber roll wrapped tubes are ideal for all kinds of construction projects that require a light weight high performance sporting tube that can deal with forces from any direction.


The benefits of carbon fiber tubes:

  • High strength and stiffness with low weight
  • Excellent fatigue resistance
  • Dimensional stability: Low to Zero CTE (Coefficient of Thermal Expansion)
  • Extreme low weight
  • Easy to use in a big variety of applications
  • Carbon fiber tubes application
Material Carbon Fiber Tube
Shape Round/oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm



FAQ:

1. Can you produce according to the samples or drawings?
Yes, we can produce your samples or technical drawings. We can create the molds and fixtures.


2. What are your terms of payment?
Usually, we accept T/T, irrevocable L/C at sight. For regular orders, Terms of payment 30% deposit, balance before shipment.


3. What is the lead time?
It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


4. What are your terms of packing?
Generally, we pack our goods in neutral cartons. It is fragile we will make the wooden frame. and we also can according to your requirements.


5. What are your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost-effective for you.


6. How to solve the quality problems after sales?
Take photos of the problems and send them to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.


7. Is it OK to print my logo on carbon fiber products?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


8. You are a manufacturer or trading company?
We are a factory. Welcome to visit our factory at any time.
