Low Weight Twill Carbon Fiber Plate 50 X 100 Cm Thickness 0.5 Mm

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Product Name: 0.5mm Carbon Fiber Plate Surface Weave: Plain/Twill
Material: Carbon Fiber Skin Layer: 3K
Fiber Orientation: 2/2 Dimensions: 500 Mm X 1000 Mm (0.5 X 1 Meter) / 19.7 Inch X 39.4 Inch.
Standard Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, Etc. Applications: Robotics, RC Models, UAVs, Aerospace, Motorsports, Marine Applications, Musical Instruments Etc.
High Light:

0.5mm Carbon Fiber Plate

,

50x100cm Carbon Fiber Sheeting

,

Twill Carbon Laminate Sheets

Product Description

High Quality Low Weight Carbon Fiber Plate 50x100 cm, thickness 0.5 mm



High Strength Carbon Fiber Plate is manufactured using 100% carbon fibre reinforcement and epoxy resin matrix, cured under pressure at elevated temperature to produce a carbon fibre sheet with engineering-grade mechanical properties and a class-A surface finish.



High quality carbon fiber sheet made from carbon fiber and epoxy resins. The sheet is made from 100% carbon fiber (aka full carbon), recommended in particular for construction purposes where high bending strength and stiffness is crucial.



Advantages:

  • Sheet made with advanced infusion technology (in vacuum) that ensures stiffness improved by approximately 30% compared to manually produced sheets.
  • Made from high-quality 100% carbon fiber.
  • Mirror-like perfect gloss of top layer.
  • Extraordinary appearance, without any defects related to air micro bubbles (pinholes) – very common in the case of manually produced sheets.
  • Low weight – only ~ 365 gr (0.89 lb).
  • The sheet is cured in production at 50 °C to improve bending strength, stiffness and thermal resistance up to 70 °C.
  • Cut to dimensions with a CNC machining center – which ensures stable and precise dimensions.
  • Easily cutting with traditional tools such as a scroll saw, blade or grinder.

Carbon fiber sheet with two different finishes: one of perfect mirror-like gloss and smoothness and the other is a matt side that is perfect for adhesive bonding.



Dimensions: 500 mm x 1000 mm (0.5 x 1 meter) / 19.7 inch x 39.4 inch.
Thickness: 0.5 mm / 0.0196 inch (+0.2 mm tolerance).
Thickness tolerance: 0.2mm thickness tolerance ensured by infusion technology Consequently the sheet 0.5 mm may actually be from 0.5 mm to 0.7mm thick.
Weight: ~365 gr (0.89 lb).
Fiber orientation: 2/2.
Finish: one- side gloss, protection against UV, mat reverse side with surface ready for assembly with adhesive bonding.



Single-Sided Carbon Fiber Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



FAQ:



1. Are you a factory or a trader?

We are a factory, with more than 16 years experience in composite products. We are one of the top manufacturers of carbon fiber tubes in China.



2. Can you send us a sample to check?

Yes, we can send you a free sample to check. You can pay the freight costs. When you place an order, we will return the freight cost to you.



3. What about the terms of payment?

T/T, L/C, Western union, etc



4. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.



5. What’s the difference between Chengcheng and other factories?

We have our own technology and research team. Our products strictly follow the quality control system in the composite products field.



6. Do you provide OEM service

Yes. OEM is welcome. We can make molds according to customers’ drawings and samples

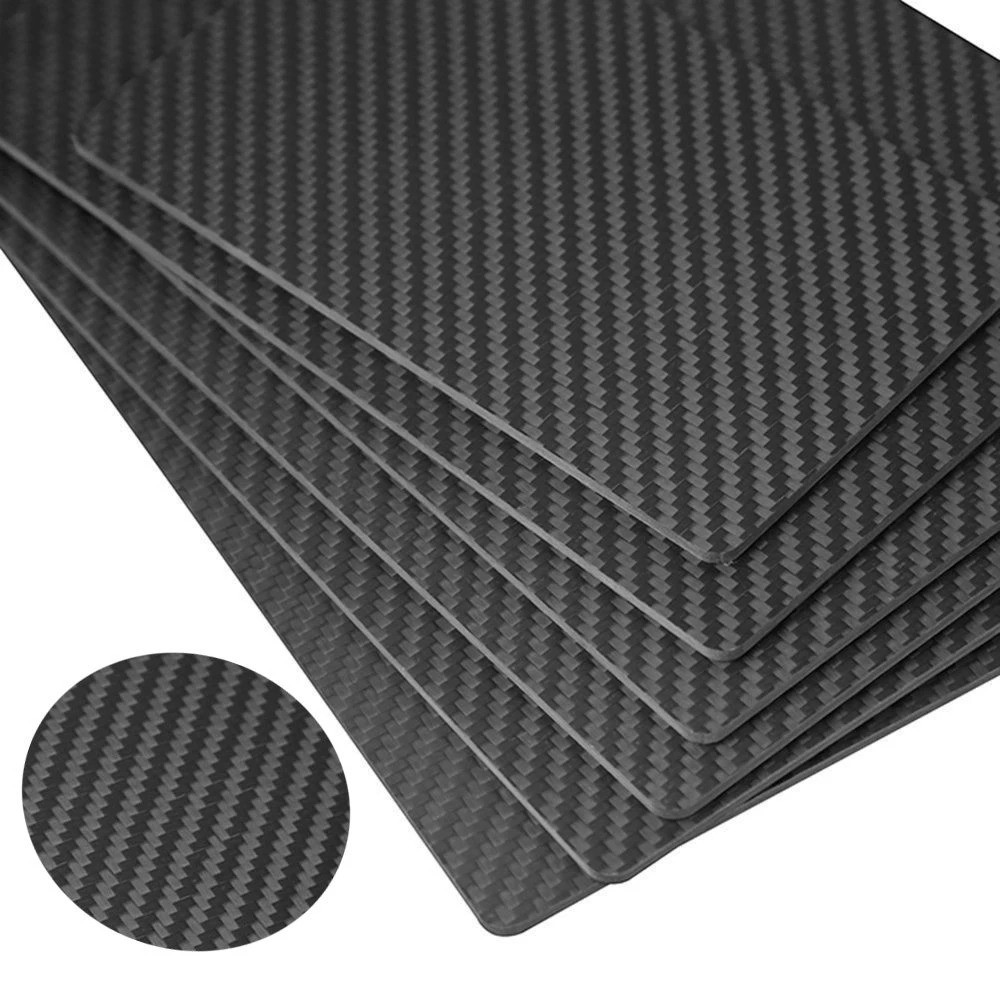

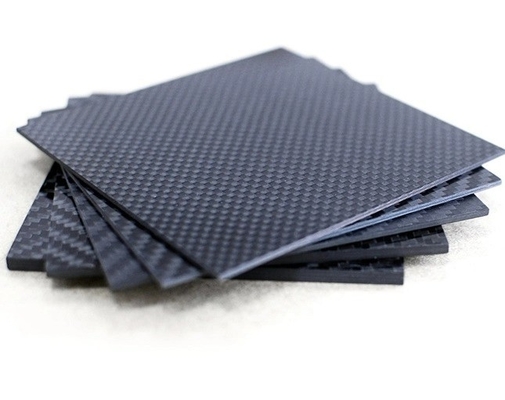

Low Weight Twill Carbon Fiber Plate 50 X 100 Cm Thickness 0.5 Mm 0Low Weight Twill Carbon Fiber Plate 50 X 100 Cm Thickness 0.5 Mm 1Low Weight Twill Carbon Fiber Plate 50 X 100 Cm Thickness 0.5 Mm 2
