Roll Wrapped 100% 3K Carbon Fiber Tube Twill Weave Ultra Light Weight

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Features: Corrosion Resistance Product Name: Light Weight Carbon Fiber Tube
Pattern: Twill, Plain Technology: Roll-wrapped
Weaves: 3K Plain / 3K Twill / Unidirection Density: 1.5g/cm^3
Fibre Orientation: 0, 90 Applications: Automotive, Light Aircraft Tubing, Construction, Etc.
High Light:

Ultra Lightweight Carbon Fiber Rod Tube

,

Twill Weave Carbon Fibre Pole

,

Roll Wrapped Carbon Fiber Pipe 3K

Product Description

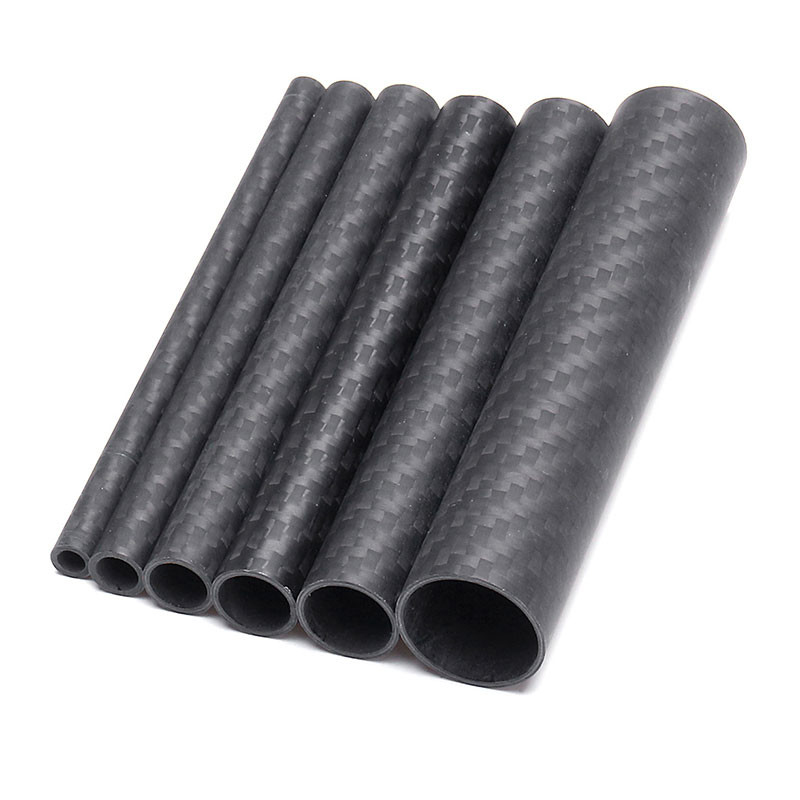

Ultra Light Weight Roll Wrapped 100% 3K Carbon Fiber Tube - Twill Weave


Carbon fiber tubes are made with a high-strength plastic composite that’s both stiff and lightweight. They conduct heat and electricity and offer excellent machinability. They are commonly used in applications that require high strength-to-weight and high stiffness-to-weight applications in aerospace, military structures, robotics, and manufacturing fixtures and sports equipment.



Ultra lightweight carbon fibre tubes with a twill fabric top layer and a UV protective high gloss coating. This product is characterized by a wall thickness of 0,5mm. Very suitable for super lightweight construction with good stiffness and reasonable strength.



These woven carbon fiber tubes, also known as CF or graphite fiber, provide high stiffness, high tensile strength, low weight, high chemical resistance, high-temperature tolerance, and low thermal expansion. They are commonly used when building frames and structures, and are also used for sporting equipment, automobiles, bicycles, and boats.



Advantages

  1. Excellent physical and chemical properties: The density of carbon fiber is less than 1/4 of that of steel, generally in the range of 1.5-2.0 g/cm³, and its tensile strength is 7-9 times that of steel, which can reach 1-7 GPa. Generally, the modulus of carbon fiber is more than three times that of traditional glass fiber, and the modulus of high modulus carbon fiber can be as high as 700GPa. Moreover, carbon fiber has both the flexibility and processability of textile fiber.
  2. Abrasion resistanceThere is very little wear when carbon fiber and metal are paired. Carbon fiber is usually used instead of asbestos to make advanced friction materials.
  3. Good thermal conductivityGenerally, the thermal conductivity of inorganic and organic materials is poor, but the thermal conductivity of carbon fiber is close to that of steel. Using this advantage, it can be used as a material for solar heat collectors and a heat-conducting shell material with uniform heat transfer.
Material Light Weight Carbon Fiber Tube
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm



Carbon Fiber Tube - Manufacturers, Suppliers, Factory



Our pursuit and company goal is to "Always satisfy our customer requirements". We continue to develop and design superior quality products for both our old and new customers and achieve a win-win prospect for our clients as well as us for. We sincerely welcome friends from all over the world to cooperate with us on the basis of long-term mutual benefits. The product will supply to all over the world, such as Europe, America, Australia, Netherlands, Kyrgyzstan, and Zambia, Being the top solutions of our factory, our solutions series have been tested and won us experienced authority certifications. For additional parameters and item list details, please click the button to acquire additional information.



Roll Wrapped 100% 3K Carbon Fiber Tube Twill Weave Ultra Light Weight 0Roll Wrapped 100% 3K Carbon Fiber Tube Twill Weave Ultra Light Weight 1Roll Wrapped 100% 3K Carbon Fiber Tube Twill Weave Ultra Light Weight 2Roll Wrapped 100% 3K Carbon Fiber Tube Twill Weave Ultra Light Weight 3Roll Wrapped 100% 3K Carbon Fiber Tube Twill Weave Ultra Light Weight 4
