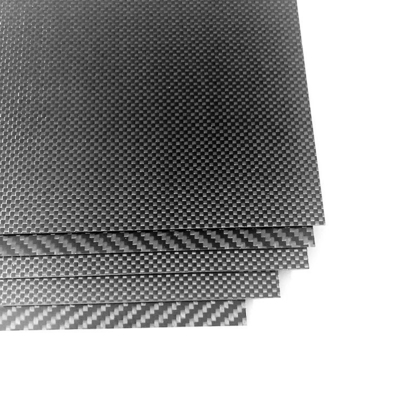

High Strength Stiffness Carbon Fiber Plate Panels 3K Twill Matte Finishing

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Product Name: Carbon Fiber Plate Panels Surface Weave: Plain/Twill
Material: Carbon Fiber Surface: 3K, Twill Or Plain, Matt Or Gloss Surface
Shape: Sheet/Plate Skin Layer: 3K
Surface Finishing: Matte/Gloss Standard Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, Etc.
Port: Shanghai
High Light:

Carbon Fiber Panels 3K Twill

,

High Stiffness Carbon Fiber Board

,

Matte Flexible Carbon Fiber Sheets

Product Description

High Strength High Stiffness 100% 3K Twill Matte Carbon Fiber Plate Panels



Standard Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, 5mm, 8mm, 20mm, 50mm etc.
Standard Size: 400x500mm, 500x500mm, 500x600, 1000x1000 mm etc
Skin Layer: 3k carbon fabric, Kevlar-Carbon hybrid fabric
Core layers:12k UD carbon fabric, Fiberglass fabric, Kevlar fabric
Surface Weave: Plain/Twill
Surface Finishing: Matte/Gloss
Typical uses for carbon fiber sheets include Robotics, RC models, UAVs, aerospace, motorsports, marine applications, musical instruments etc. We also offer CNC service



Strength, Stiffness, and Comparisons With Other Materials



Carbon fiber is extremely strong. It is typical in engineering to measure the benefit of a material in terms of strength to weight ratio and stiffness to weight ratio, particularly in structural design, where added weight may translate into increased lifecycle costs or unsatisfactory performance. The stiffness of a material is measured by its modulus of elasticity. The modulus of carbon fiber is typically 33 msi (228 GPa) and its ultimate tensile strength is typically 500 ksi (3.5 Gpa). High stiffness and strength carbon fiber materials are also available through specialized heat treatment processes with much higher values. Compare this with 2024-T3 Aluminum, which has a modulus of only 10 msi and ultimate tensile strength of 65 ksi, and 4130 Steel, which has a modulus of 30 msi and ultimate tensile strength of 125 ksi.



Steel will permanently deform at a stress level below its ultimate tensile strength. The stress level at which this occurs is called the yield strength. Carbon fiber, on the other hand, will not permanently deform below its ultimate tensile strength, so it effectively has no yield strength.



As an example, a plain-weave carbon fiber reinforced laminate has an elastic modulus of approximately 6 msi and a volumetric density of about 83 lbs/ft3. Thus the stiffness to weight for this material is 107 ft. By comparison, the density of aluminum is 169 lbs/ft3, which yields a stiffness to weight of 8.5 x 106 ft, and the density of 4130 steel is 489 lbs/ft3, which yields a stiffness to weight of 8.8 x 106 ft. Hence even a basic plain-weave carbon fiber panel has a stiffness-to-weight ratio 18% greater than aluminum and 14% greater than steel. The utilization of prepreg, and in particular high modulus and ultra high modulus carbon fiber prepregs, yields substantially higher stiffness to weight ratios. For example, a panel comprising a 0/90 layup of standard modulus prepreg carbon fiber will have a bending modulus of about 8 msi, or about 30% more rigid than non-prepreg options. For very demanding applications where maximum stiffness is required, 110 msi ultra high modulus carbon fiber can be used. This specialized pitch-based carbon fiber has a bending stiffness over 3 times that of a standard modulus prepreg panel (about 25 msi). When one considers the possibility of customized carbon fiber panel stiffness through strategic laminate placement, a panel (or other cross-section, such as a tube) can be fabricated with bending stiffness on the order of 50 msi.



Testing performed by LIJIN has demonstrated all zero-degree oriented uni-directional ultra high modulus coupon samples to have tensile stiffness in excess of 75 msi, or over twice the stiffness of steel, yet still only half the weight of aluminum. Using the aforementioned comparison, the stiffness to weight ratio of this material is then over 10 times that of either steel or aluminum. When one includes the potentially massive increases in both strength to weight and stiffness to weight ratios possible when these materials are paired with lightweight honeycomb and foam cores, is it obvious the impact advanced carbon fiber composites can make on a wide variety of applications.



Single-Sided Carbon Fiber Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



FAQ:



1. Are you a factory or a trading?

We are a factory, with more than 16 years experience in composite products. We are one of the top manufacturers of carbon fiber tubes in China.



2. Can you send us a sample to check?

Yes, we can send you a free sample to check. You can pay the freight costs. When you place an order, we will return the freight cost to you.



3. What about the terms of payment?

T/T, L/C, Western union, etc



4. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.



5. What’s the difference between Chengcheng and other factories?

We have our own technology and research team. Our products strictly follow the quality control system in the composite products field.



6. Do you provide OEM service

Yes. OEM is welcome. We can make molds according to customers’ drawings and samples
