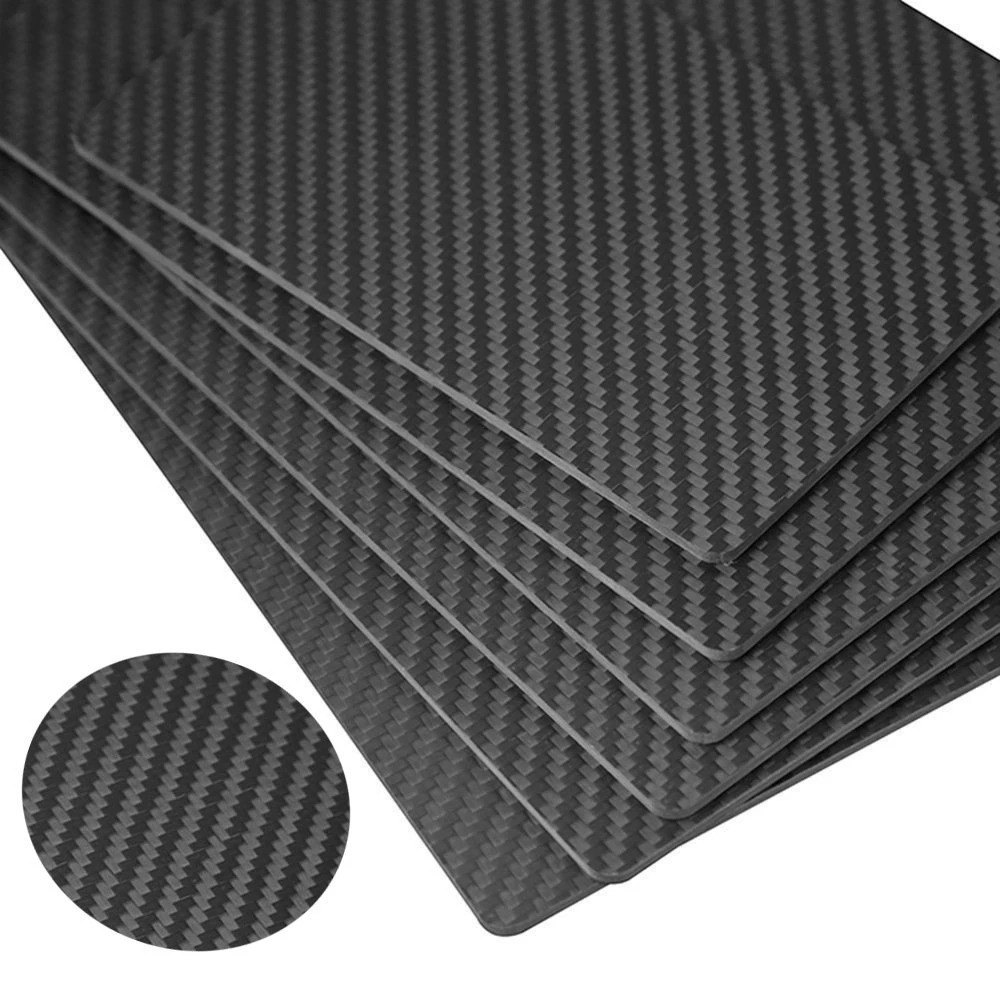

100% Full 3K Twill Carbon Fiber Sheet Wear Resistant

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Product Name: Carbon Fiber Sheet Product Type: Carbon Fiber Fabric
Supply Type: Make-to-Order Material: 100% Carbon Fiber
Style: Twill Use: Industry
Weight: Depending Color: Black、
Feature: Abrasion-Resistant, Anti-Static, Heat-Insulation, Waterproof, High Strength, Solid
High Light:

Full 3K Carbon Fiber Sheet

,

Carbon Fiber Sheet 2.5mm

,

Twill Carbon Fiber Panels Wear Resistant

Product Description

High Performance Excellent Durable Wear-Resistant 100% Full 3K Carbon Fiber Sheet



Description



Full 3k carbon fiber sheet with high tensile strength, the strength of the carbon fibre is 6-12 times as steel, it can endure more than 3000 mpa. Perfect for any application including RC airplanes, drones, helicopters, multicopter, etc.



3k carbon fiber sheet has extremely high strength, light weight, with shiny and clear appearance, widely used for model helicopter parts and hobby market. It can be made into pure carbon fiber or glass fiber core with carbon fiber surfaces, thickness range from 0.2mm to 60mm, customized thicknesses and sizes are available. Stand for complete solution, we supply full size to pre-cut panel, as well as CNC machined parts to your specification.



LIJIN Carbon sheets are fabricated from woven carbon fiber material. The layers are oriented to provide high bending stiffness and axial strength. The outer layer provide a bias support in addition to an attractive appearance. This product is ideal for building lightweight frames and structures and any other applications where low weight and high stiffness are essential, yet appearance is also important.



This sheet has a twill weave pattern, one of the most common weave patterns in many markets. The one side of this sheet has a classic twill, woven carbon fiber appearance and is nearly pinhole-free with a matt finish.



Features:


1. Excellent durable.Features:
2. Light weight.
3. High strength, good flexibility.
4. Wear-resistant, impact-resistant.
5. Anti-aging and corrosion resistance.



Our high strength vacuum infused composite sheets are manufactured using 100% carbon fiber reinforced with a near-clear epoxy resin matrix. All composite stacks are laid by hand to ensure maximum homogenization of fiber alignment. Stacks are then vacuum infused and cured under pressure greater than 28 inches of mercury. The tool is then elevated to an optimal temperature to produce a near-perfect composite sheet with high-grade mechanical properties and a class-A surface finish.



Advantages:

  • Sheet made with advanced infusion technology (in vacuum) that ensures stiffness improved by approximately 30% compared to manually produced sheets.
  • Made from high quality 100% carbon fiber.
  • Mirror-like perfect gloss of top layer.
  • Extraordinary appearance, without any defects related to air micro bubbles (pinholes) – very common in the case of manually produced sheets.
  • The sheet is cured in production at 50 °C to improve bending strength, stiffness and thermal resistance up to 70 °C.
  • Cut to dimensions with CNC machining center – which ensures stable and precise dimensions.
  • Easily cutting with traditional tools such as a scroll saw, blade or grinder.

Feature

  1. 100% 3K Carbon Fiber Strong Strength and Light Weight.
  2. Perfect for any application including RC, drones, helicopters, etc.
  3. The surface is cross-grain, the nice surface without any glass fiber contents.
  4. These carbon fiber sheets contain 100% carbon fiber imported from Japan.
  5. It is especially applicable for Multicopter, Helicopter and RC airplanes.



Application



1. Aerospace, RC model parts Helicopters Model Drone, UAVS

2. Decoration parts for Car and jewelry

3. Manufacture fixtures and tooling

4. Industrial automation and robotics

5. Sports equipment

6. Musical instruments

7. Scientific apparatus

8. Medical device

9. Others



Single-Sided Carbon Fiber Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



SHANGHAI LIJIN IMP.&EXP. CO., LTD is a professional manufacturer of carbon fiber and fiberglass products, dedicated to designing, developing, producing, and sales of composites products for more than 10 years. Our main products include carbon fiber tubes, carbon fiber rods, carbon fiber molding products, fiberglass rods, fiberglass pipes, etc. We constantly diversify and expand our capabilities to meet an extensive assortment of composite applications.



Our product line consists of various sizes and shapes of pultruded fiberglass/carbon (GFRP/CFRP) composite rods, tubes, bars, strips, complex profiles, and pull wound tubes for kites, sails, umbrellas, tents, golf bags, fence systems, nursery stakes, transformers, tool handles, antenna rods and enclosures, ladder rails, brushes, toys, pet products as well as for tripods, flags poles, ski poles, insulators, gratings, composite rock bolts, fiberglass/carbon rebars, etc. Any combination of different reinforcements such as fiberglass, carbon fiber, fiberglass/carbon fiber hybrid, and resin matrixes such as polyester, vinyl ester, epoxy as well as various colors are available.
