3K Twill Weave Matte Carbon Fiber Tubes Frames For Kite Bone

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Features: Lightweight, High Strength Product Name: Matte Carbon Fiber Tube
Material Description: 100% Carbon Fiber Pattern: Twill, Plain
Shape: Round Or Custom Technology: Roll-wrapped
Weaves: 3K Plain / 3K Twill / Unidirection Density: 1.5g/cm^3
Fibre Orientation: 0, 90 Port: Shanghai
High Light:

Matte Carbon Fiber Pipes

,

3K Twill Carbon Composite Tube

,

Kite Bone Carbon Fiber Pole

Product Description

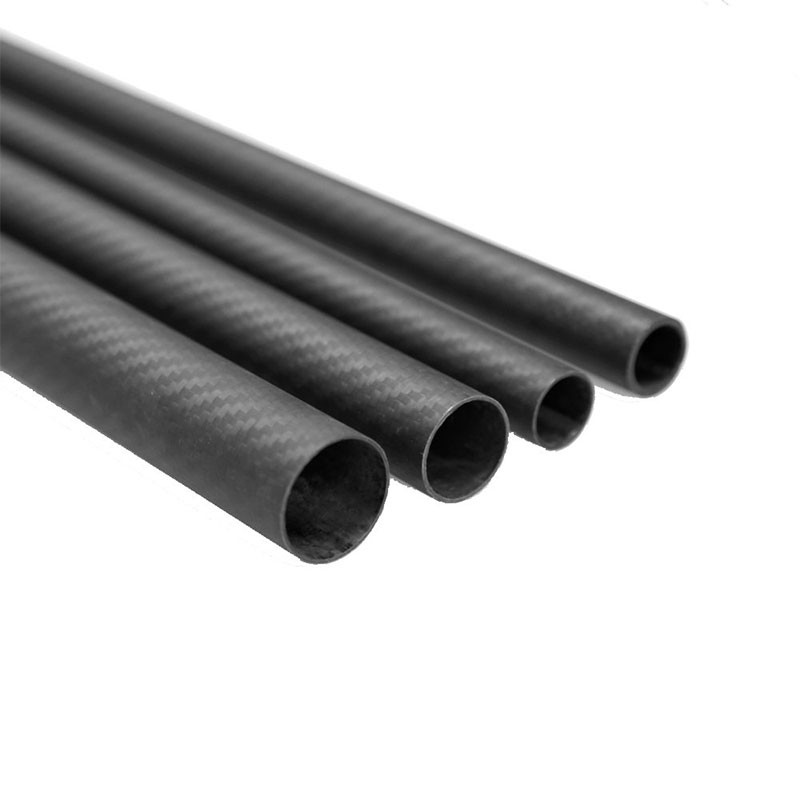

3K Twill Weave Glossy/Matte Carbon Fiber Tubes Frames for Kite Bone/Tools/Toys


This type of carbon fiber tube was made by 100% carbon fiber twill prepreg, Surface can be glossy or Matte(someone calls it semi-glossy) or sanded(smooth) surface. It can be customized by clients.



For glossy surface- It is a transparent painting, looks very bright. Someone like it, Because it is very beautiful.



For Matte surface- it is a transparent painting, Looks a little dark than glossy, Someone like matte.



For Sanded--We also make the carbon fiber tube surface smooth, Someone like this surface, Because they will process the surface again.



Whether your project is big or small, we are bound to have round carbon fiber tubing that suits your needs. As an added bonus we are generally able to ship right away on most products listed in our store! Aside from aesthetic variations of our many round stock tubes, you might also wish to consider their superb mechanical properties as well. That is after all the main reason we love carbon fiber so much! Of course, it's an added bonus that it looks incredible too.



Composition



Roll wrapped tubing is manufactured using multiple layers of prepreg carbon fiber (and if noted, other) materials. In general each layer is about 0.006 inches thick which means that a tube with a wall thickness of 0.060 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers (plys) allows us to vary the orientation of the fibers throughout the thickness, creating a high performance, engineered product.





Applications

  • Automotive
  • Light Aircraft Tubing
  • Construction
  • Duct rod / Fish rods
  • Aerospace Instrument & Interior Supports
  • Photography & Sound Booms
  • Outer Space & Terrestrial Antennae Supports
  • Corrosion Resistant Equipment Marine
  • Sporting Goods
  • Oil & Gas
  • Robotic Arms & Supports
  • Power Generation
  • Window Shades
  • Wastewater Treatment
  • Advertising Panels


How to work with us?



If you want to get our carbon fiber tube price, please include ID, OD, length, dimensional tolerances, quantity, structural requirements, surface finish, surface pattern, material (if you know), temperature requirements, processing technology, etc. According to these points, we can easily and quickly quote you the price.



Material Matte Carbon Fiber Tube
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


Our Service:

1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.
