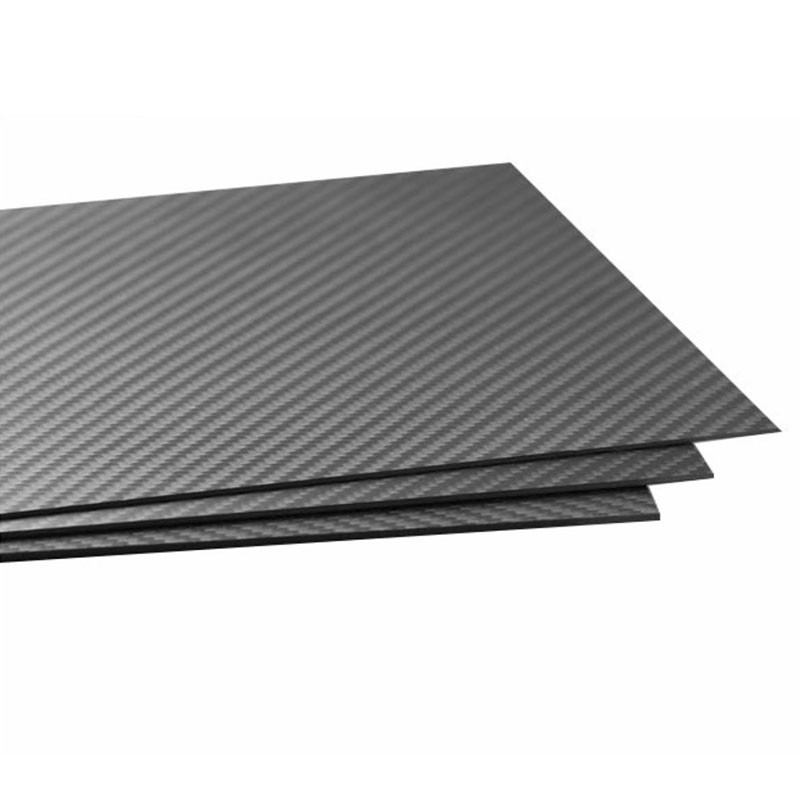

CNC Cutting 3K Plain Carbon Fiber Plate For Automotive 0.5mm

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Product Name: Carbon Fibre Sheet Surface Weave: Plain/Twill
Material: Carbon Fiber Performance: High-Strength Type
Surface: 3K, Twill Or Plain, Matt Or Gloss Surface Color: Black
Skin Layer: 3K Surface Finishing: Matte/Gloss
Standard Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, Etc.
High Light:

CNC Cutting Carbon Fibre Panel

,

Automotive Carbon Fiber Sheeting 0.5mm

,

3K Plain Carbon Fiber Board

Product Description

CNC Cutting CNC Cutting Carbonfiber Sheet, 3K Carbon Fiber Panels, Carbon Fiber Plate



LIJIN‘’s Carbon Fibre sheets and panels are suitable for a multitude of applications from automotive to marine to commercial to use in the home and much more. We manufacture Carbon flat sheet from high quality pre-preg Carbon Fibre in thicknesses ranging from 0.3mm up to 5.0mm. Thinner sheets are suitable for use as a cosmetic trim, thicker panels can be used to make dash boards or door panels, interior trim or structural components.



For extra stiffness, we also manufacture double gloss Carbon Fibre sheets/panels with Airex foam, Nomex honeycomb, and Aluminium honeycomb cores available in thicknesses ranging from 0.3mm to 10mm.



LIJIN carbon fibre sheet materials are suitable for a multitude of applications including flooring, veneers, and decorative trim. Our carbon fibre flat sheet is autoclave cured using 199gsm epoxy thermoset pre-preg surface ply 2x2 twill T300 carbon @ 0/90' fibre orientation. Our carbon sheets are available from 1 ply to 5 plies ranging in thickness from 0.3mm to 1.46mm, with one moulded side gloss, rear side non moulded bag finish.



(Double sided gloss available on special request). We also produce Carbon sheets with thicknesses of 3.0mm & 5.0mm with bulking plies.



Thinner sheets are suitable for use as a cosmetic trim, thicker panels to make dash boards or door panels, interior trim or structural components by cutting with carbide cut-off wheels in a high-speed dremel or CNC water jet cutting. A single ply can be cut to shape using a good quality pair of tailor's scissors, thicker sheets can be cut with reinforced carbide or diamond cut off wheels in a high speed hand grinder.



Standard Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, 5mm, 8mm, 20mm, 50mm etc.
Standard Size: 400x500mm, 500x500mm, 500x600, 1000x1000 mm etc
Skin Layer: 3k carbon fabric, Kevlar-Carbon hybrid fabric
Core layers:12k UD carbon fabric, Fiberglass fabric, Kevlar fabric
Surface Weave: Plain/Twill
Surface Finishing: Matte/Gloss
Typical uses for carbon fiber sheets include Robotics, RC models, UAVs, aerospace, motorsports, marine applications, musical instruments etc. We also offer CNC service



Dear Client, When you order carbon fiber solid board/plate/sheet. just let us know the thickness=? Width=? Length=? So that we can produce for you.



When you order carbon fiber sandwich panel, Just let us know, Face thickness=? what material for the middle, Total thickness=? and length=? width=?



So that we can produce for you. Thank you!



Single-Sided Carbon Fiber Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



FAQ:



1. Are you a factory or a trading?

We are a factory, with more than 16 years experience in composite products. We are one of the top manufacturers of carbon fiber tubes in China.



2. Can you send us a sample to check?

Yes, we can send you a free sample to check. You can pay the freight costs. When you place an order, we will return the freight cost to you.



3. What about the terms of payment?

T/T, L/C, Western union, etc



4. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.



5. What’s the difference between Chengcheng and other factories?

We have our own technology and research team. Our products strictly follow the quality control system in the composite products field.



6. Do you provide OEM service

Yes. OEM is welcome. We can make molds according to customers’ drawings and samples
