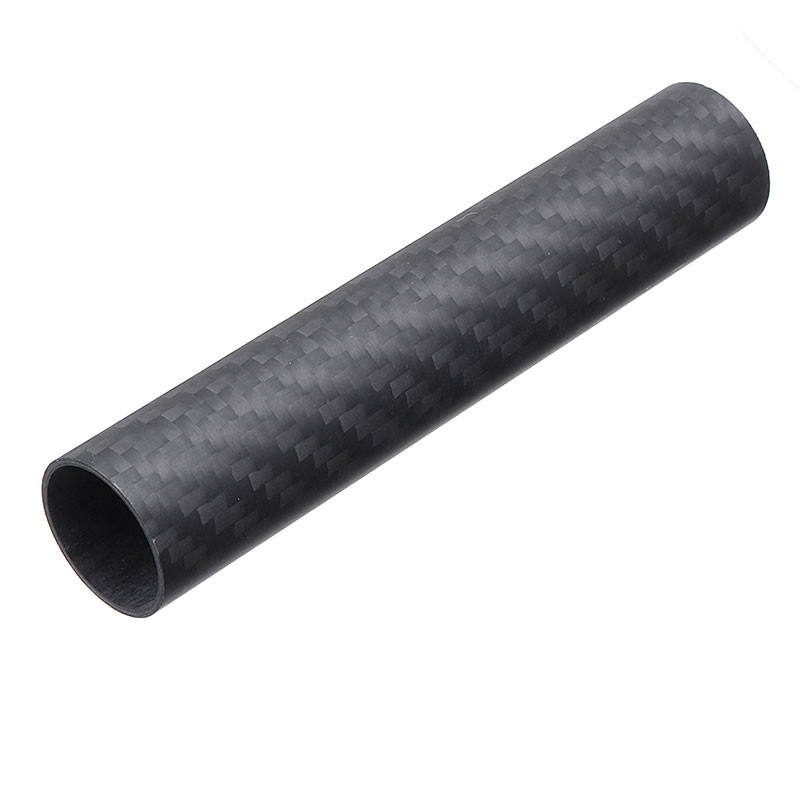

Lightweight Round Carbon Fiber Tube 3K Twill For Arrow Shaft

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Features: Lightweight, High Strength Product Name: Carbon Fiber Tube
Material Description: 100% Carbon Fiber Pattern: Twill, Plain
Shape: Round Or Custom Technology: Roll-wrapped
Weaves: 3K Plain / 3K Twill / Unidirection Density: 1.5g/cm^3
Fibre Orientation: 0, 90 Port: Shanghai
Highlight:

Arrow Shaft Carbon Fiber Round Tube

,

Lightweight Twill Carbon Fiber Rod

,

Round Carbon Fiber Pipes

Product Description

High Stiffness-to-Weight Carbon Fiber - Lightweight High-Strength Tubes



LIJIN has developed a unique composite tube manufacturing process, combing precise control of the fibre lay-up angles with the enhanced properties of Thin Ply Prepregs. The process is ideal for any tubular structure where weight, performance and cost are critical factors. Automotive drive shafts, aircraft struts, windsurf masts and golf shafts are just a few examples of possible applications.



With any tubular product, or indeed any composite structure, the use of thinner plies offers nearly unlimited options for fibre angles and fibre type combinations; and the micro-structure of a thin ply laminate results in higher mechanical properties. LIJIN’s novel tube manufacturing process ensures that each of these thin carbon plies is wound continuously, resulting in a symmetrically stiff tube with no spine, unlike the traditional table rolling methods that have dominated the market until now. This new process affords precise control over the alignment of perfectly axial fibre, which is difficult to achieve with filament winding. The ratio of longitudinal fibres to off-axis fibres along the length and through the thickness of the tube can be controlled, enabling optimization and higher quality in demanding applications.



Carbon fiber tubes are made with a high-strength plastic composite that’s both stiff and lightweight. They conduct heat and electricity and offer excellent machinability. They are commonly used in applications that require high strength-to-weight and high stiffness-to-weight applications in aerospace, military structures, robotics, and manufacturing fixtures and sports equipment.



Due to their unique properties, carbon fiber tubes are used in numerous applications over traditional materials such as aluminum, steel and titanium.



Features are:

  • High strength and stiffness with light weight
  • Excellent fatigue resistance
  • Dimensional stability: Low to Zero CTE (Coefficient of Thermal Expansion)

LIJIN can provide an extensive range of high-performance, lightweight composite tubing for use in a wide variety of industries and applications. These lightweight, composite tubes exhibit outstanding strength, durability and rigidity. They deliver excellent tensile strength characteristics compared to conventional structural metals and are the first choice in a variety of performance applications.



Whether it's aesthetic variations or superb mechanical properties, we've got the carbon fiber tubes for you!



Material Straight Carbon Fiber Tube
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


Our Service:

1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.
Lightweight Round Carbon Fiber Tube 3K Twill For Arrow Shaft 0Lightweight Round Carbon Fiber Tube 3K Twill For Arrow Shaft 1Lightweight Round Carbon Fiber Tube 3K Twill For Arrow Shaft 2Lightweight Round Carbon Fiber Tube 3K Twill For Arrow Shaft 3Lightweight Round Carbon Fiber Tube 3K Twill For Arrow Shaft 4
