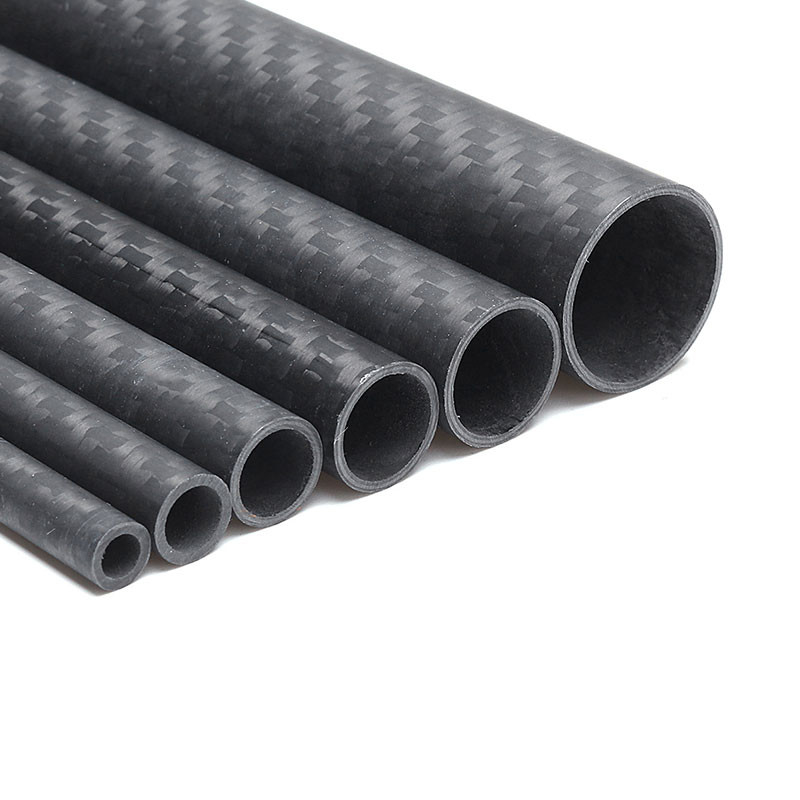

Carbon Fiber Filament Wound Tube UV Resistant Roll Wrapped

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Features: Lightweight, High Strength Product Name: Filament Wound Carbon Fiber Tube
Material Description: 100% Carbon Fiber Pattern: Twill, Plain
Shape: Round Or Custom Technology: Roll-wrapped
Weaves: 3K Plain / 3K Twill / Unidirection Density: 1.5g/cm^3
Fibre Orientation: 0, 90 Port: Shanghai
High Light:

Roll Wrapped Filament Wound Tube

,

Carbon Fiber Filament Wound Tube

,

UV Resistant Carbon Fiber Rod Tube

Product Description

Low Thermal Conductivity UV Resistant Filament Wound Carbon Fiber Tube


Filament wound tubes have very long continuous fibers which add to the strength and stiffness of the structure. The manufacturing process allows for longer length carbon fiber tubes than our standard roll wrapping process. If you are looking for a higher temperature Tg, we can build almost all of these tubes with a different resin system good for up to 400F. Contact us for a quote! The angles used in the winding process makes the final product an excellent choice for torsion applications. And for high volume orders, it can be a very economical solution. Available in a gloss finish, a sanded matte finish, or with a twill over wrap.



Filament winding process allows for longer length carbon fiber tubes Available with a 400F high temp resin Great for torsion applications Beautiful finish.



Filament Wound & Wrapped Carbon Tubing



This tube is made of 100% carbon fiber/standard temp epoxy. This tube is laid up as a thin walled roll wrapped tube. Once cured this tube is prepped and filament wound around the roll wrapped core. This method of construction creates a tube that combines the characteristics of a roll wrapped tube (bending stiffness) and the characteristics of a filament wound tube (torsional or internal pressure loads). We have discounted this tubing due to this slight defect. These are very strong tubes! Call for quantity pricing.



Appearance



LIJIN manufactures a wide variety of tubes for OEM, military, and commercial applications. LIJIN filament-wound, filament winding products utilize fiberglass roving reinforcements in a specialized epoxy resin matrix. Filament-wound (filament winding) carbon fiber tubes and carbon fiber tubing provide a very high strength-to-weight ratio, excellent electrical insulation properties and high resistance to corrosion.



We produce carbon tubes of various dimensions for many applications.



For manufacturing we use:

  • Winding machines designed and made by M-Carbo engineers
  • Carbon tow 12K / 24K normal grade (special grade upon request)
  • High precision chromium-plated mandrels long up to 7 meters
  • Regular epoxy resin (long term up to 80 C / 176 F)

Some of carbon tubes applying:

  • carbon bike frames
  • paddle shafts
  • UAV vehicles
  • medical external fixators
  • stunt equipment
  • take-up shafts for polymer film roll rewinders
  • car driveshafts
  • rifle forends
  • shaft idler rollers and many other uses



Material 3K Carbon Fibre Tube
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


Our Service:

1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.
Carbon Fiber Filament Wound Tube UV Resistant Roll Wrapped 0Carbon Fiber Filament Wound Tube UV Resistant Roll Wrapped 1Carbon Fiber Filament Wound Tube UV Resistant Roll Wrapped 2Carbon Fiber Filament Wound Tube UV Resistant Roll Wrapped 3Carbon Fiber Filament Wound Tube UV Resistant Roll Wrapped 4
