Light Weight Pullwinding Carbon Fiber Tube Round Pultrusion Process
Contact Person : Terry.Chang, Annie.Liang
Phone Number : +86-13681832139
WhatsApp : +8613681832139
|Minimum Order Quantity :||Negotiable||Price :||Negotiable|
|Packaging Details :||Normal Corrugated Carton Packing for International Shipment||Delivery Time :||7 working days after receiving Order Pay|
|Payment Terms :||T/T, Western Union, L/C||Supply Ability :||1500pcs month|
|Place of Origin:||China||Brand Name:||Tanku|
|Certification:||SGS, ROHS||Model Number:||OEM|
|Product Name:||Carbon Fiber Tube 14mm X 12mm||Material Description:||100% Carbon Fiber|
|Pattern:||Twill, Plain||Shape:||Round Or Custom|
|Technology:||Roll-wrapped||Weaves:||3K Plain / 3K Twill / Unidirection|
|Fibre Orientation:||0, 90|
Flexibility Carbon Fiber Rod Tube,
Plain Oval Carbon Fiber Tube,
Corrosion Resistance Pultruded Carbon Fiber

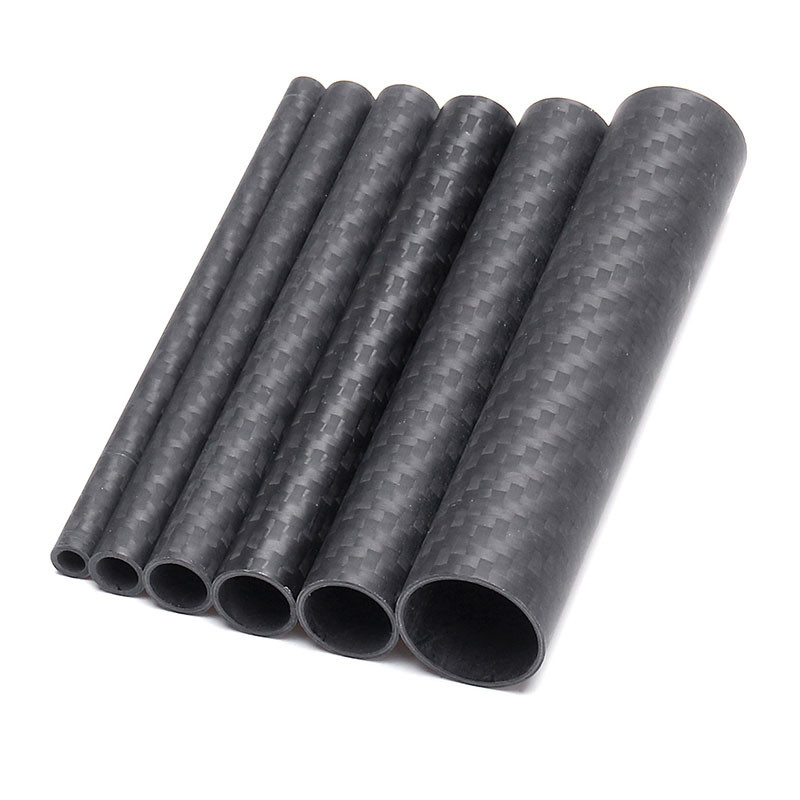

Corrosion Resistance Flexibility Carbon Fiber TUBE 14mm x 12mm x 1000mm
These pultruded Carbon Fiber TUBES are great for reinforcing models or other arts and crafts. Use them in the wings, fuselage, or other parts of the model.
These tubes are comprised of carbon fiber braid and unidirectional fabrics. This product is ideal for building lightweight frames and structures such as trusses. Our carbon fiber tubes have been engineered to be much stronger under torsional and side loading than pultruded tubing. They're also significantly lighter than pultruded tubing. Also the product unidirectional layers are captured, eliminating longitudinal cracking and splitting. The finish on this product is different from other product lines. These Carbon fiber tube show the texture of the carbon fiber braid with a wet and shiny appearance.
Do not see exactly what you’re looking for? Contact us about custom thicknesses, sizes, and finished lengths. Users are responsible for the design and test of any structures involving Carbon Fiber Tube and gussets and are responsible for determining the safety and suitability of these products for their own purposes.
Roll wrapped Carbon fiber tube (Tubing) is manufactured using multiple layers of prepreg carbon fiber (and if noted, other) materials. In general each layer is about 0.005 inches (0.12mm-0.15mm) thick which means that a Carbon fiber tube with a wall thickness of 0.050 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers (plys) allows us to vary the orientation of the fibers throughout the thickness, creating a high performance, engineered product.
|Material||Tensile Strength Carbon Fiber Tube|
|Technology||Roll-wrapped or pultrusion|
|Dimension||The existing inner diameter of the mold is 4mm-50mm with a length of 1m.|
|Customizable size: The maximum diameter can be 200mm, the longest can be 3m.|
|Surface||Black glossy/matte surface/painted|
|Glossy 3k weave/matte 3k weave|
|Color metal wire weave|
|Feature||lightweight, high strength|
|Working Temperature||Usually, -30-120 degrees, if special requirement, please let us know.|
|Place Of Origin||China|
|Function||Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products|
|Tolerance||Diameter Tolerance: +/-0.1mm|
What are the uses of carbon fiber tubes?
Carbon fiber has various excellent properties of elemental carbon, such as low specific gravity, excellent heat resistance, low coefficient of thermal expansion, high thermal conductivity, good corrosion resistance and conductivity. At the same time, it has the flexibility of fiber, which can be used for weaving and winding.
The most excellent performance of carbon fiber is that its specific strength and specific modulus are higher than that of ordinary reinforced fiber. The specific strength and specific modulus of the composite formed by carbon fiber and resin are about three times higher than that of steel and aluminum alloy. Carbon fiber composite pipes are widely used in many fields, which can significantly reduce the weight, improve the payload and performance. They are important structural materials in aerospace industry.
Carbon fiber composites have long been used in satellite structures, solar panels and antennas due to their advantages of light weight, high rigidity, high strength, stable size and good thermal conductivity. Nowadays, most of the deployable solar cells on artificial satellites are made of carbon fiber composite materials, and some key parts of space station and space transportation system are also made of carbon fiber composite materials.
Carbon fiber tube is also very good in UAV applications. In practical applications, it can be applied to different parts of UAV body, such as arm, frame and so on. Compared with aluminum alloy, the application of carbon fiber tube in UAV can reduce weight by about 30%, which can improve the load capacity and endurance of UAV. Carbon fiber tube has the advantages of high tensile strength, corrosion resistance and good anti-seismic effect, which can effectively guarantee the life of UAV.
2. Mechanical equipment
Application of carbon fiber composite material in robot end picker the end picker is a kind of fixture used in the transmission process of stamping production line. It is installed on the loading and unloading robot of the press, and drives the end picker to carry the workpiece through trajectory teaching. Among many new materials, carbon fiber composite is the most popular.
The proportion of carbon fiber composite is less than 1 / 4 of that of steel, but its strength is several times of that of steel. The robot end pickup made of carbon fiber composite can reduce the shaking and self burden when handling Automobile parts, and its stability can be greatly improved.
3. Military industry
Carbon fiber has the characteristics of light weight, high strength, high modulus, corrosion resistance, fatigue resistance, high temperature resistance, thermal conductivity, good heat dissipation and low coefficient of thermal expansion. Carbon fiber and its composites are widely used in rocket, missile, military aircraft, personal protection and other military fields, and the amount is increasing with each passing day, which makes the performance of military equipment improve continuously. Carbon fiber and its composites have become important strategic materials for the development of modern defense and military weapons.
In terms of military rockets and missiles, the excellent performance of carbon fiber composite materials has also been better applied and developed, such as "Pegasus", "delta" carrier rocket, "Trident II (D5)," dwarf "missile, etc. carbon fiber composite materials are used; while the U.S. strategic missile MX intercontinental missile, Russian strategic missile" poplar "M Missiles also use advanced composite launchers.
4. Sporting goods
Most of the traditional sports products are made of wood, but the mechanical properties of carbon fiber reinforced composites are much higher than that of wood. The specific strength and specific modulus of carbon fiber reinforced composites are 4 times and 3 times that of Chinese fir, 3.4 times and 4.4 times that of Wutong wood. Therefore, it has been widely used in sports goods, and its consumption accounts for about 40% of the total consumption of carbon fiber in the world. In the field of sporting goods, carbon fiber pipes are mainly used in the following aspects: golf clubs, fishing poles, tennis rackets, badminton rackets, ice hockey clubs, bows and arrows, sailing masts, etc.
Taking the tennis racket as an example, the tennis racket made of carbon fiber composite material is light and strong, with large rigidity and small strain, which can reduce the deviation when the ball is in contact with the racket; at the same time, the CFRP has good damping property, which can extend the contact time between the gut and the ball, so that the tennis ball can obtain greater acceleration. For example, the contact time of wooden racket is 4.33 MS, that of steel product is 4.09 MS, and that of CFRP is 4.66 Ms. the corresponding initial velocity of the ball is 1.38 km / h, 149.6 km / h and 157.4 km / h respectively.
In addition to the above fields, carbon fiber composites are also widely used in rail transit, wind power, medical devices and other fields. With the continuous breakthrough of carbon fiber raw material manufacturing and subsequent processing technology, the price of carbon fiber raw materials is expected to become more people-friendly.
