3K Twill Round Carbon Fibre Tubes Poles With Roll Wrapping

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Features: Lightweight, High Strength Product Name: Carbon Fibre Tubes
Material Description: 100% Carbon Fiber Pattern: Twill, Plain
Shape: Round Or Custom Technology: Roll-wrapped
Weaves: 3K Plain / 3K Twill / Unidirection Density: 1.5g/cm^3
Fibre Orientation: 0, 90 Port: Shanghai
High Light:

Carbon Fibre Tube Pole

,

3K Hollow Carbon Fiber Rod

,

Round Twill Carbon Fiber Pipe

Product Description

Customized 1k ,3K 6K,12K carbon fibre tubes poles with roll wrapping processing

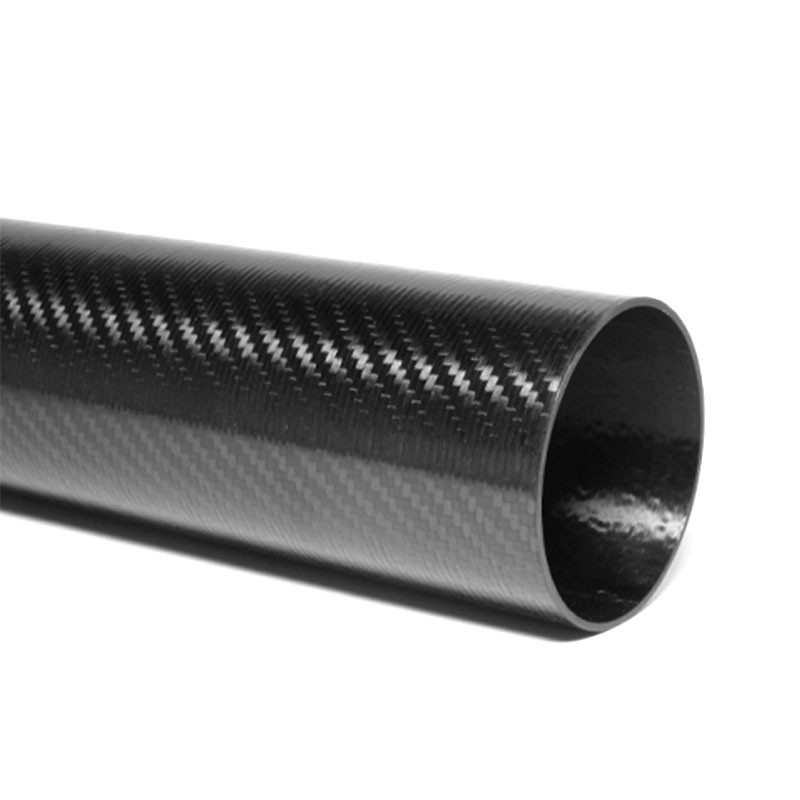

LIJIN carbon fibre roll wrap tube uses high strength unidirectional carbon fibre (24T) running length-ways down the tube for stiffness and at 90° around the tube to provide hoop strength and resilience to crush, burst and torsional loads. In addition to this high strength uni core, our tubes are finished with a classic final layer of 2×2 twill weave carbon fibre and UV stable clear high gloss finish. The end result is a carbon fibre tube ideally suited for use in applications where it will be seen.



Features:

  • Light Weight – Less Density – 20% Of Steel
  • High Strength
  • High Corrosion Resistance
  • Superior Dimensional Stability
  • Consistent Cross Section
  • Lasting Performance
  • Excellent Structural Properties
  • Environmentally Safe
  • Non-Magnetic Electromagnetic
  • Ease Of Fabrication & Installation

Applications:

  • Automotive
  • Light Aircraft Tubing
  • Construction
  • Duct rod / Fish rods
  • Aerospace Instrument & Interior Supports
  • Photography & Sound Booms
  • Outer Space & Terrestrial Antennae Supports
  • Corrosion Resistant Equipment Marine
  • Sporting Goods
  • Robotic Arms & Supports
  • Advertising Panels
  • Lifting Spars

How to Cut and Shape



They can be cut with a fine band saw, hacksaw, or dremel tool. Enhanced Composites roll wrap carbon fibre tubes are manufactured using an epoxy matrix, therefore they will easily bond with other epoxy resins.



Typical Uses



Roll wrapped tubes are better for applications where the tube may be subject to a variety of forces including bend, twist and crush. These light 10mm tubes are suitable for demanding engineering applications including scale aircraft, gliders, helicopter U.A.V.’s, lightweight frames or structures, tubular vessels, poles, column supports or any construction that requires strength, rigidity and lightness yet appearance is also important. They are equally suited to other precision applications like robotics and automation.



Tubes made with epoxy resin systems have virtually zero water absorption making them suitable for marine based use than lower quality tubing made with vinylester or polyester resin systems.



Material carbon fibre tubes
Shape Round/Oval
Technology Roll-wrapped or pultrusion

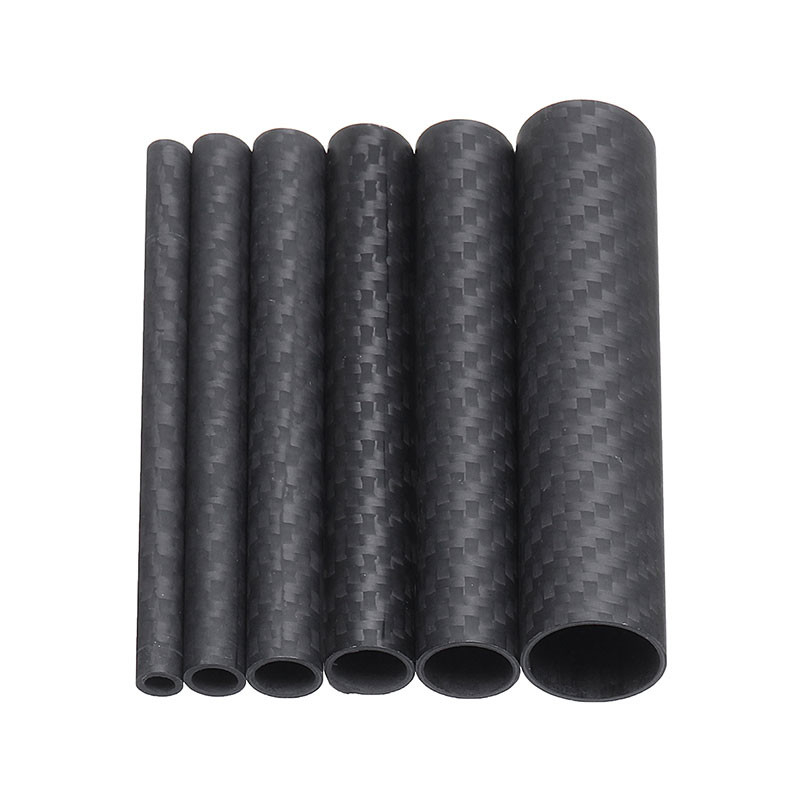

Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


Our Service:

1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.
