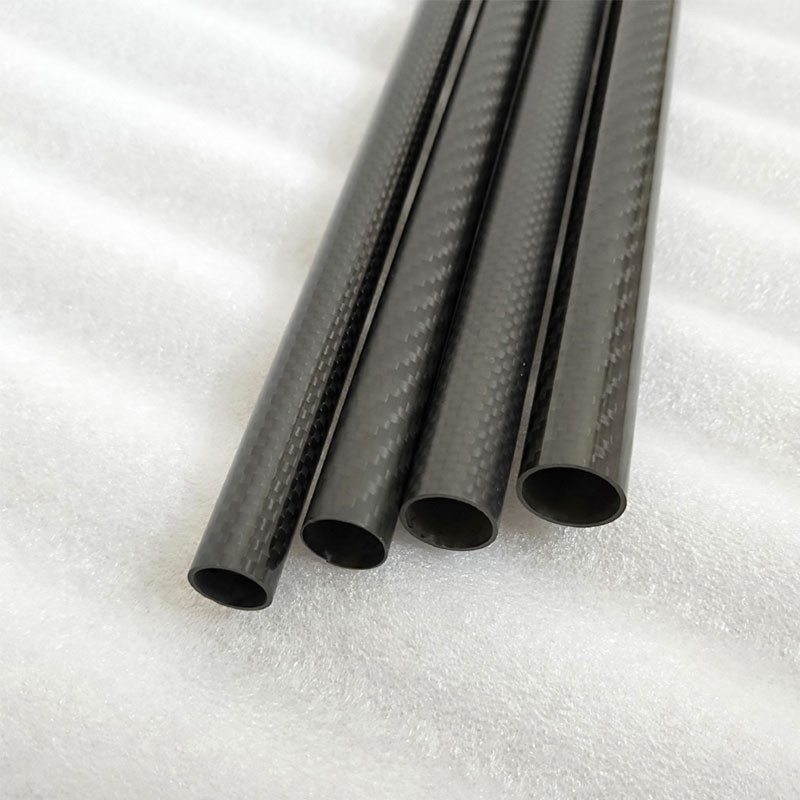

Epoxy Resin 3K Carbon Fiber Tube High Temperature Heat Resistance Glossy Surface

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: Heat Resistance Carbon Fiber Tube Material Finish: 3K Glossy Twill Surface
Pattern: Twill, Plain Technology: Roll-wrapped
Tolerance: Diameter Tolerance: +/-0.1mm Density: 1.5g/cm^3
Length Tolerance: +/-1mm Fibre Orientation: 0, 90
Feature: Light Weight, High Strength We Supply: Eco-Friendly Products, OEM Products, ODM Products, Etc.
High Light:

Epoxy Resin Carbon Fiber Tube

,

3K Glossy Carbon Fiber Tube

,

Heat Resistance 3K Carbon Fiber Tube

Product Description

High Temperature Heat Resistance Epoxy Resin 3K Carbon Fiber Tube/Pipe



Carbon fibre rods and tubes are manufactured by pulling or wrapping carbon fibres and epoxy resin to a desired diameter/cross-section to form a densely reinforced carbon composite. Carbon fibre has unique properties making it ideal for applications ranging from aerospace to automobiles, to sporting goods.



Here you can get Pultruded Carbon Fibre rod, Pulbraided Carbon Fibre rod and 3K Roll-wrapped Carbon fibre rod of varying dimensions. This Carbon Fiber Rods are exceptionally straight and rigid, UV resistant and are the ideal building material for frames, trusses and for use as reinforcing material.



Fabric

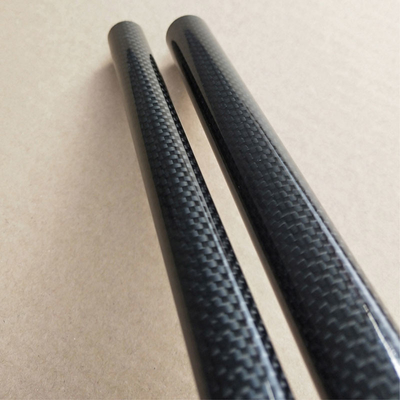

Looks dark black, has a woven exterior (traditional Carbon Fiber look) and is glossy – texture has cello lines (textured ribbing)
Sanded version retains the woven exterior, looks grey in color, matte and is paint / bond ready – texture is smooth
Comprised of various angle plies throughout the layup with the outer (and sometimes inner ply) being a woven carbon fiber fabric either plain weave (checkerboard pattern) or twill (diagonal bias pattern)


IN GENERAL tubes listed as "Fabric" are comprised of ~65% (0) degree unidirectional plies = Good bending stiffness & ~25% (90) or (+45/-45) degree Multi-directional plies = Good torque resistance & crushing strength & ~10% (0/90) weave for the outermost layer = Good looks and provides good strength guarding against damage


Uni



Looks solid dark black and is glossy – texture has cello lines (textured ribbing)
Sanded version looks solid grey in color, matte and is paint / bond ready – texture is smooth
Also comprised of various angle plies throughout the layup with the outer ply being a unidirectional layer of Carbon Fiber
IN GENERAL tubes listed as "Uni" are comprised of ~70% (0) degree unidirectional plies = Good bending stiffness & ~30% (90) or (+45/-45) degree Multi-directional plies = Good torque resistance & crushing strength



Filament Wound



Looks vary quite a bit though generally these tubes have a “delta” “large thread weave” pattern to them, glossy – texture has cello lines (textured ribbing)


Sanded version looks grey in color, sometimes takes on a “camo” type look, matte and is paint / bond ready – texture is smooth
Comprised of purely angled plies of carbon fiber – Fiber angles vary from ~15 to ~80 degrees



Material 100% carbon fiber or high modulus carbon
Shape Round/oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm




Our Service:



1. It ensures that a year of quality assurance and 24 hours online customer service.

2. Protection of your sales area, ideas of design, and all your private information.

3. Request for samples is accepted.

4. Drilling and slotting are accepted.

5. We guarantee the products to be manufactured with the finest materials and mature technics.

All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.



FAQ:



1. Can you produce according to the samples or drawings?
Yes, we can produce your samples or technical drawings. We can create the molds and fixtures.



2. What are your terms of payment?
Usually, we accept T/T, irrevocable L/C at sight. For regular orders, Terms of payment 30% deposit, balance before shipment.



3. What is the lead time?
It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



4. What are your terms of packing?
Generally, we pack our goods in neutral cartons. It is fragile we will make the wooden frame. and we also can according to your requirements.



5. What are your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost-effective for you.



6. How to solve the quality problems after sales?
Take photos of the problems and send them to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.



7. Is it OK to print my logo on carbon fiber products?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



8. You are a manufacturer or trading company?
We are a factory. Welcome to visit our factory at any time.
