Flexibility 2x2 Carbon Fiber Square Tube Twill Fabric Easy Machinability

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: Flexibility Carbon Fiber Tube Material: 100% Carbon Fiber
Pattern: Twill, Plain Shape: Square
Technology: Roll-wrapped Weaves: 3K Plain / 3K Twill / Unidirection
Density: 1.5g/cm^3 Fibre Orientation: 0, 90
High Light:

2x2 Carbon Fiber Square Tube

,

Twill Fabric Carbon Fiber Square Tube

,

Flexibility Twill Carbon Fiber Tube

Product Description

High Performance Easy Machinability Flexibility 2x2 Twill Fabric Carbon Fiber Tube


LIJIN is able to provide an extensive range of high performance, light weight composite tubing for use in a wide variety of industries and applications. Our assortment of composite tubes are manufactured through roll wrapping, pultrusion, or filament winding processes in the most popular composite materials such as carbon fiber. Available in standard and custom sizes, our lightweight, composite tubes exhibit outstanding strength, durability and rigidity. They deliver excellent tensile strength characteristics compared to conventional structural metals, and are a first choice in a variety of performance applications.



Description



LIJIN’s Carbon Fiber Tubes are manufactured with high strength, medium modulus unidirectional carbon fiber prepreg, with the majority of the fibers positioned along the length of the tube. The unidirectional layers are wrapped around a mandrel and oriented in a 0/90 degree orientation and cured at high temperatures and pressure. This type of construction offers a high stiffness to weight ratio tube with increased bending stiffness and axial strength, a high crush resistance and tight inner diameter (ID) tolerances.



The Carbon Fiber Tubes have an outermost layer of 2x2 twill fabric which gives the tube a few advantages including better machinability, reduced splintering and the decorative aesthetics associated with carbon fiber. All our roll wrapped tubes feature a slight rib texture spiraling along their length where shrink-tape has been used in the manufacturing process. If need be, this can easily be sanded and polished away.



Upon request, we can manufacturer tubes using intermediate or high modulus carbon fiber. Custom options also include variations of layers and their fiber orientation. Fibers oriented at 90 degrees (hoop) are wrapped around the circumference to provide high crushing strength and stiffness. The fibers that run along the length, in the 0 degree direction, provide high bending strength and stiffness. Fibers oriented at +/- 45 degree deliver increased torsional rigidity. Request a quote today.



Features/Benefits

  • Balanced Layup
  • High crush/bend strength and stiffness
  • Easy machinability
  • Decorative Aesthetics
  • Hardware easily mounts to ID and OD
  • Uses Include
  • Aerospace Spars & Beams
  • UAV Housing Components
  • Frames & Supports
  • Structural Components
  • Interior Design
  • Automation Equipment
  • Recreational Equipment



Material Square Carbon Fibre Tube
Shape Square
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


Our Service:

1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.

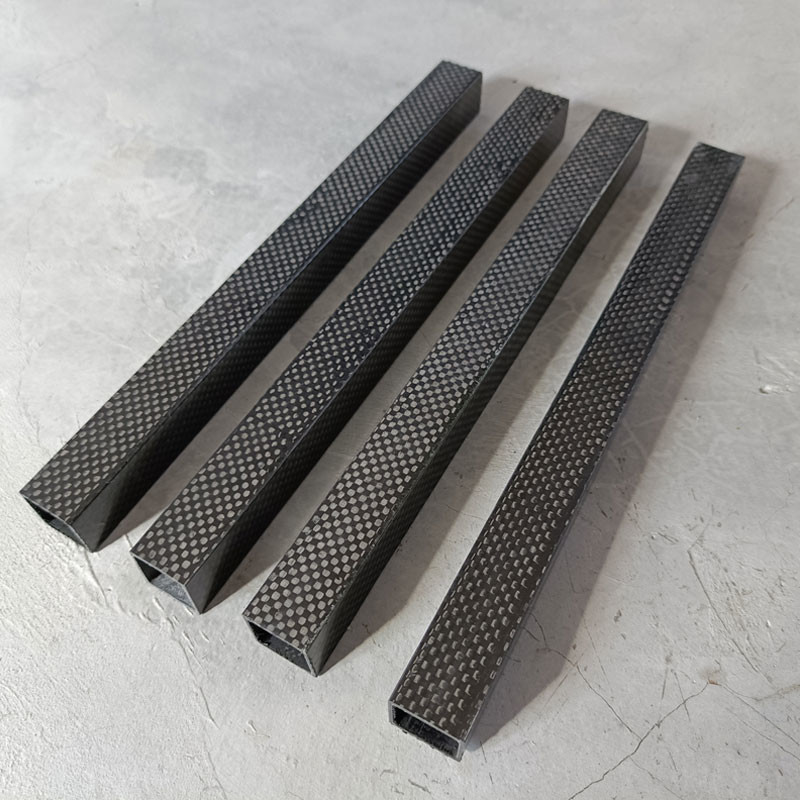

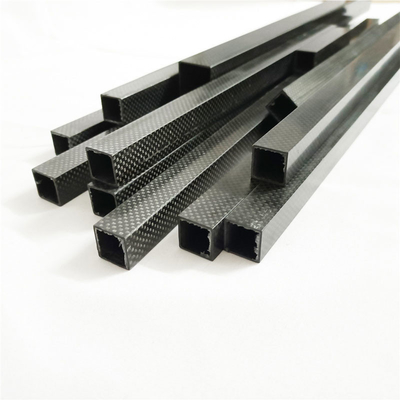

Flexibility 2x2 Carbon Fiber Square Tube Twill Fabric Easy Machinability 0Flexibility 2x2 Carbon Fiber Square Tube Twill Fabric Easy Machinability 1Flexibility 2x2 Carbon Fiber Square Tube Twill Fabric Easy Machinability 2Flexibility 2x2 Carbon Fiber Square Tube Twill Fabric Easy Machinability 3Flexibility 2x2 Carbon Fiber Square Tube Twill Fabric Easy Machinability 4Flexibility 2x2 Carbon Fiber Square Tube Twill Fabric Easy Machinability 5
