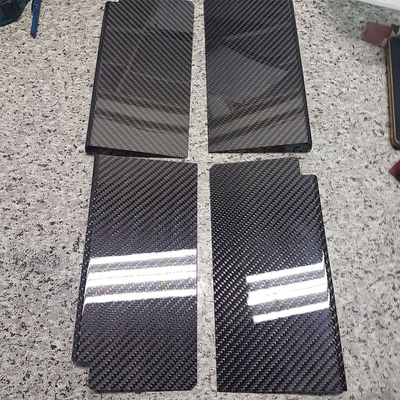

Glossy Carbon Fiber Plate 3mmx200mmx300mm 3K Twill Mirror Finish

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Product Name: Carbon Fiber Sheet Plate Surface Weave: Plain/Twill
Material: Carbon Fiber Color: Black
Skin Layer: 3K Surface Finishing: Matte/Gloss
Standard Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, Etc. Port: Shanghai
High Light:

Carbon Fiber Plate 3mmx200mmx300mm

,

Twill Glossy Carbon Fiber Plate

,

3K Carbon Fiber Sheet

Product Description

Glossy Carbon Fiber Sheet 3mmx200mmx300mm Plate Panel 3K Twill Mirror Like



Carbon fiber is usually combined with other materials to form a composite. When combined with epoxy resins and wound or molded it forms carbon-fiber-reinforced polymer (often referred to as carbon fiber) which has a very high strength-to-weight ratio, and is extremely rigid although somewhat brittle.



3mm thickness carbon fiber sheet is manufactured using 100% carbon fibre reinforcement and epoxy resin matrix, cured under high pressure at high temperature, making them the high strength and flat. Inside without any filling materials, The surface material is 2 x 2 3K tow (3,000 filaments) Twill or Plain Weave carbon fiber fabric.



Quasi-Isotropic Layup



For creating a more uniform distribution of strength, all our laminated sheets are manufactured using both layers of 0°/90° oriented reinforcement in what is known as quasi-isotropic fibre orientation. Our carbon fiber sheets using this layup technique offer improved stiffness across their diagonal axis and significantly improved torsional stiffness.



Features:


1. The material is pure carbon fiber without any filling materials.
2. Dimension: standard size or custom size
3. Thickness: 3mm
4. Surface: 3K, Twill or plain, Matt or gloss surface
5. High strength to weight ratio
6. High Thermal Conductivity in some forms
7. Low coefficient of thermal expansion
8. Electrical Conductivity



Advantages of carbon fiber plate:

  1. Lightweight -20% of steel
  2. High strength, stiffer than steel
  3. High corrosion resistance
  4. Superior dimensional stability
  5. High-temperature range use
  6. Last performance
  7. Excellent structural properties
  8. Environmentally safe
  9. Non-Magnetic
  10. Conduction of electricity
  11. Easy fabrication &installation

Carbon Fiber Sheet Home / Sheets & Strips / Carbon Fiber Sheet


All our Laminated carbon fiber sheets are produced by the heat press method. We only use high-strength carbon fiber prepregs to produce these sheets and are available in various sizes and thicknesses.



Standard Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, 5mm, 8mm, 20mm, 50mm etc.
Standard Size: 400x500mm, 500x500mm, 500x600, 1000x1000 mm etc
Skin Layer: 3k carbon fabric, Kevlar-Carbon hybrid fabric
Core layers:12k UD carbon fabric, Fiberglass fabric, Kevlar fabric
Surface Weave: Plain/Twill
Surface Finishing: Matte/Gloss
Typical uses for carbon fiber sheets include Robotics, RC models, UAVs, aerospace, motorsports, marine applications, musical instruments etc. We also offer CNC service



Single-Sided Carbon Fiber Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



FAQ:



1. Are you a factory or a trading?

We are a factory, with more than 16 years experience in composite products. We are one of the top manufacturers of carbon fiber tubes in China.



2. Can you send us a sample to check?

Yes, we can send you a free sample to check. You can pay the freight costs. When you place an order, we will return the freight cost to you.



3. What about the terms of payment?

T/T, L/C, Western union, etc



4. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.



5. What’s the difference between Chengcheng and other factories?

We have our own technology and research team. Our products strictly follow the quality control system in the composite products field.



6. Do you provide OEM service

Yes. OEM is welcome. We can make molds according to customers’ drawings and samples
