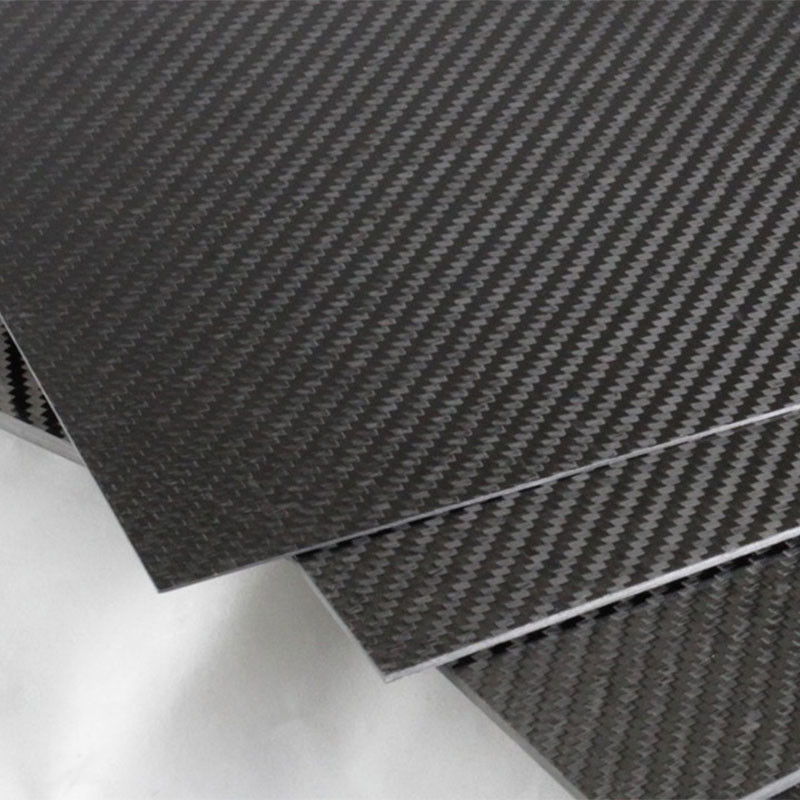

3K Unidirectional Carbon Fiber Board Corrosion Resistance

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Features: Very Strong And Light Product Name: Carbon Fibre Sheets
Surface Weave: Plain/Twill Material: Carbon Fiber
Color: Black Skin Layer: 3K
Surface Finishing: Matte/Gloss Standard Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, Etc.
Applications: Robotics, RC Models, UAVs, Aerospace, Motorsports, Marine Applications, Musical Instruments Etc.
High Light:

3K Unidirectional Carbon Fiber Board

,

0.5mm Unidirectional Carbon Fiber Board

,

Aerospace Unidirectional Carbon Fiber Board

Product Description

Extremely Strong and Durable Corrosion Resistance Carbon Fiber Unidirectional Sheets



LIJIN’s Carbon Fiber Unidirectional Sheets are ideal as a flat material option for structural applications where minimum weight is essential or to add stiffness to almost any composite material.



Description



LIJIN’s Carbon Fiber Unidirectional Sheets offer maximum tensile and bending stiffness along a single axis. They are manufactured by laying unidirectional carbon fiber prepreg so that all the carbon fibers run in the zero direction or parallel to the length of the part. This construction method makes our Carbon Fiber Unidirectional Sheets ideal as a flat material option for structural applications where minimum weight is essential or to add stiffness to almost any material such as fiberglass, foam, or balsa wood.



Once cured, these sheets cannot be re-shaped. Therefore, they will not lie flat on compound curves, convex or concave surfaces. In order to achieve maximum stiffness each sheet should be installed with proper fiber orientation.



Our proprietary Autoclave curing process produces the most consistent carbon fiber sheets possible. Manufactured using 100% real carbon fiber fabric pre-impregnated with superior epoxy resin, these sheets are cured at high temperatures and pressure to ensure a strong, rigid product that cannot be re-shaped after cured. Unlike wet layup, our Autoclave curing process consistently yields flat, lightweight sheets with minimal voids, waves or buildups.



Notice: Unidirectional sheets are prone to splitting, which is the nature of the product.



Single-Sided Carbon Fiber Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



FAQ:



1. Are you a factory or a trading?

We are a factory, with more than 16 years experience in composite products. We are one of the top manufacturers of carbon fiber tubes in China.



2. Can you send us a sample to check?

Yes, we can send you a free sample to check. You can pay the freight costs. When you place an order, we will return the freight cost to you.



3. What about the terms of payment?

T/T, L/C, Western union, etc



4. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.



5. What’s the difference between Chengcheng and other factories?

We have our own technology and research team. Our products strictly follow the quality control system in the composite products field.



6. Do you provide OEM service

Yes. OEM is welcome. We can make molds according to customers’ drawings and samples



3K Unidirectional Carbon Fiber Board Corrosion Resistance 03K Unidirectional Carbon Fiber Board Corrosion Resistance 13K Unidirectional Carbon Fiber Board Corrosion Resistance 2

3K Unidirectional Carbon Fiber Board Corrosion Resistance 3

3K Unidirectional Carbon Fiber Board Corrosion Resistance 43K Unidirectional Carbon Fiber Board Corrosion Resistance 5
