SGS Certificated 3K Twill Weave Mat Carbon Fiber Large Diameter Thin Tube
Contact Person : Terry.Chang, Annie.Liang
Phone Number : +86-13681832139
WhatsApp : +8613681832139
|Minimum Order Quantity :||Negotiable||Price :||Negotiable|
|Packaging Details :||Normal Corrugated Carton Packing for International Shipment||Delivery Time :||7 working days after receiving Order Pay|
|Payment Terms :||T/T, Western Union, L/C||Supply Ability :||1500pcs month|
|Place of Origin:||China||Brand Name:||Tanku|
|Certification:||SGS, ROHS||Model Number:||OEM|
|Product Name:||Carbon Fiber Tube||Material Finish:||3K Glossy Twill Surface|
|Tolerance:||Diameter Tolerance: +/-0.1mm||Density:||1.5g/cm^3|
|Length Tolerance:||+/-1mm||Fibre Orientation:||0, 90|
|Feature:||Light Weight, High Strength||We Supply:||Eco-Friendly Products, OEM Products, ODM Products, Etc.|
3K Roll Wrapped Carbon Fiber Tube,
OEM Roll Wrapped Carbon Fiber Tube,
Radiation Resistant Carbon Fiber Tube

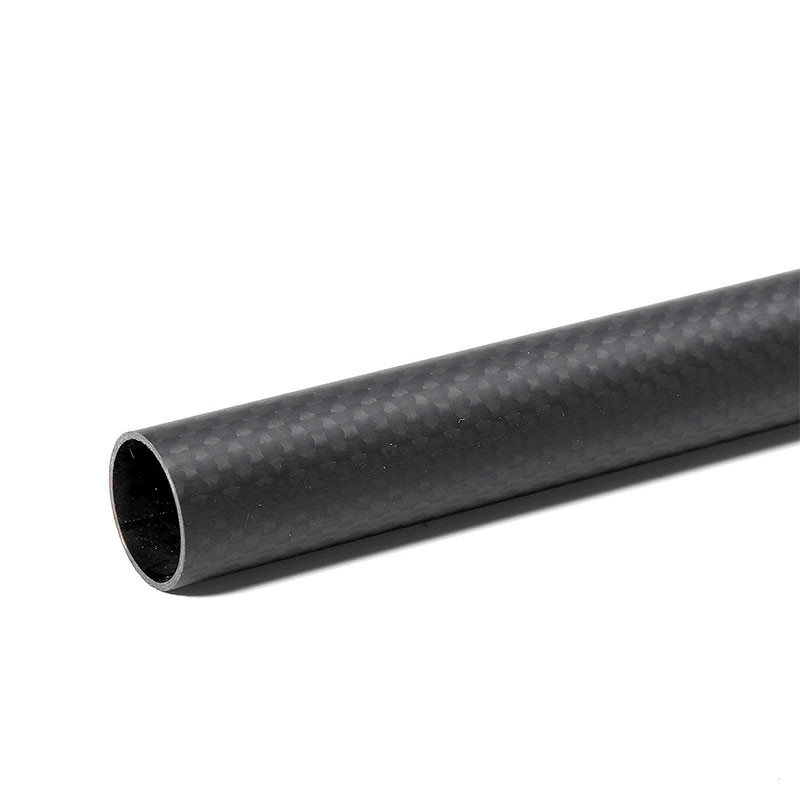

3K Roll-Wrapped Carbon Fiber Tube (Hollow)20mm(OD)*18mm(ID)*500mm(L)
Carbon fibre tubes can be used to replace aluminium or steel tubes in a wide range of projects. The Carbon fibre tube of the same weight as an aluminium or steel tube can be much stronger and lighter. This 20mm roll wrapped carbon fibre tube is manufactured predominantly using high modulus unidirectional prepreg carbon fibre oriented to provide maximum strength in the lateral axis.
Roll wrapped carbon fiber tubes offer superior strength in general use to ‘pultruded’ tubes (which have all their fibres running in exactly the same direction.
The use of unidirectional fibres and maximum strength in the lateral axis does mean that the tube is not strong across its diameter as it is along its length so should be used in such a way as to avoid unnecessary crushing forces across the tube.
The phrase ‘roll wrapped’ refers to the process used to manufacture these tubes. The prepreg carbon fibre is first laid up around a mandrel in multiple layers. Once the reinforcement is in place it is spiral-wrapped with heat-shrink tape before the whole assembly is oven cured.
1. Lightweight. Super low density, only about 1.5 g/cm³.
(fiberglass 1.95,aluminum 2.7 and steel 7.85) less than 1/5 of steel.
2. Super strength. About 5 times of steel.
3. High modulus
4. Corrosion-resistant. Anti-acid,anti-alkali.
5. Never rust. Which is more excellent than stainless steel.
7. Durable. With a long lifetime.
9. X-ray transparency
10. Super high temperature-resistant
11. Pretty weak thermal conductivity
12. Superior dimensional stability
13. Supremely high rigidity
|Material||100% carbon fiber or high modulus carbon|
|Technology||Roll-wrapped or pultrusion|
|Dimension||The existing inner diameter of the mold is 4mm-50mm with a length of 1m.|
|Customizable size: The maximum diameter can be 200mm, the longest can be 3m.|
|Surface||Black glossy/matte surface/painted|
|Glossy 3k weave/matte 3k weave|
|Color metal wire weave|
|Feature||lightweight, high strength|
|Working Temperature||Usually, -30-120 degrees, if special requirement, please let us know.|
|Place Of Origin||China|
|Function||Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products|
|Tolerance||Diameter Tolerance: +/-0.1mm|
1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.
1. Can you produce according to the samples or drawings?
Yes, we can produce your samples or technical drawings. We can create the molds and fixtures.
2. What are your terms of payment?
Usually, we accept T/T, irrevocable L/C at sight. For regular orders, Terms of payment 30% deposit, balance before shipment.
3. What is the lead time?
It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What are your terms of packing?
Generally, we pack our goods in neutral cartons. It is fragile we will make the wooden frame. and we also can according to your requirements.
5. What are your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost-effective for you.
6. How to solve the quality problems after sales?
Take photos of the problems and send them to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.
7. Is it OK to print my logo on carbon fiber products?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
8. You are a manufacturer or trading company?
We are a factory. Welcome to visit our factory at any time.
