Hollow OD 16mm Carbon Fiber Tube 3K Woven For Model Building

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: Carbon Fibre Tube Technology: Rolled-wrapping
Material: 100% Carbon Fiber Color: Black Or Any Color
Surface: Natural, 3K Woven, Glossy Or Matte Length: Blow 5000mm
Thickness: 0.2-50mm Model: Custom, ODM, OEM, As Your Order.
Port: Shanghai
High Light:

OD 16mm Carbon Fiber Tube


3K Hollow Carbon Fiber Tube


Thick 0.2mm Carbon Fiber Tube

Product Description

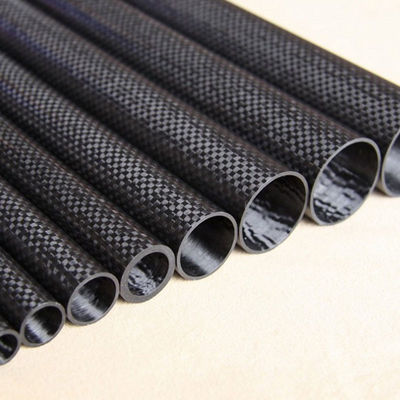

3K Roll-wrapped Carbon Fibre Tube (Hollow) 16mm(OD) * 14mm(ID) * 1000mm(L)


Product Description:


High Performance lightweight carbon tube. The outer layer is a "twill" fabric and is finished with a UV protective high gloss coating. This ensures the tube has optimal strength and stiffness, and low weight. Available in lengths of 1000 and 2000 mm. The outer diameter has a tolerance of +/- 0.2 mm. These tubes offer the same excellent mechanical properties as the High Precision tubes.

The carbon tubes are used for Lightweight frames for machine building. Arms and grippers for robots and various fast-moving product handling systems, UAVs, drones, lightweight constructions, tube connections for model building, instruments, medical equipment, yacht building and more.

The carbon tubes can be cut to size on request. We can also provide post-processing such as drilling and CNC milling.


Carbon fibre tubes can be used to replace aluminium or steel tubes in a wide range of projects. The Carbon fibre tube of the same weight as an aluminium or steel tube can be much stronger and lighter. This 16mm roll wrapped carbon fibre tube is manufactured predominantly using high modulus (T700) unidirectional prepreg carbon fibre oriented to provide maximum strength in the lateral axis.


Roll wrapped carbon fibre tubes offer superior strength in general use to ‘pultruded’ tubes (which have all their fibres running in exactly the same direction.


The use of unidirectional fibres and maximum strength in the lateral axis does mean that the tube is not strong across its diameter as it is along its length so should be used in such a way as to avoid unnecessary crushing forces across the tube.


Roll Wrapping:


The phrase ‘roll wrapped’ refers to the process used to manufacture these tubes. The prepreg carbon fibre is first laid up around a mandrel in multiple layers. Once the reinforcement is in place it is spiral-wrapped with heat-shrink tape before the whole assembly is oven cured.



  • Made of Carbon Fiber material
  • High Strength
  • Stable dimension and UV resistant
  • High Corrosion Resistance
  • Electrical & Thermal Non-Conductivity

- Automotive
- Light Aircraft Tubing
- Construction
- Duct rod / Fish rods
- Aerospace Instrument & Interior Supports
- Photography & Sound Booms
- Outer Space & Terrestrial Antennae Supports
- Corrosion Resistant Equipment Marine
- Sporting Goods
- Robotic Arms & Supports
- Advertising Panels
- Lifting Spars


Product Name Carbon Fibre Tube
Material 100% Carbon Fiber
Color Black or custom
Surface Matt/Glossy
Size Custom thickness and length
Fiber Specifications 1K/3K/12K
Weaving Style Plain/Twill
Fiber Type 1.Carbon fiber+carbon fiber
2.Carbon fiber+ glass fiber
3.Carbon fiber+aramid fiber
Application 1. Aerospace, RC model parts Helicopters Model
2. Manufacture fixtures and tooling
3. Industrial automation and robotics
4. Sports equipment
5. Musical instruments
6. Scientific apparatus
7. Medical device
8. Others
Our Product Carbon fiber tube, carbon fiber plate, carbon fiber profiles.


Hollow OD 16mm Carbon Fiber Tube 3K Woven For Model Building 0Hollow OD 16mm Carbon Fiber Tube 3K Woven For Model Building 1Hollow OD 16mm Carbon Fiber Tube 3K Woven For Model Building 2Hollow OD 16mm Carbon Fiber Tube 3K Woven For Model Building 3Hollow OD 16mm Carbon Fiber Tube 3K Woven For Model Building 4Hollow OD 16mm Carbon Fiber Tube 3K Woven For Model Building 5
