Special Section Pultruded Carbon Tube Composite Material
Contact Person : Terry.Chang, Annie.Liang
Phone Number : +86-13681832139
WhatsApp : +8613681832139
|Minimum Order Quantity :||Negotiable||Price :||Negotiable|
|Packaging Details :||Normal Corrugated Carton Packing for International Shipment||Delivery Time :||7 working days after receiving Order Pay|
|Payment Terms :||T/T, Western Union, L/C||Supply Ability :||1500pcs month|
|Place of Origin:||China||Brand Name:||Tanku|
|Certification:||SGS, ROHS||Model Number:||OEM|
|Product Name:||High Strength 3K Carbon Fibre Tube For Speargun||Product Type:||Carbon Fiber Board/ Panels/Plate/Sheet/Fabric/Parts/Frame|
|Surface Treatment:||Glossy Or Matte Finish||Material:||100% 3K Pure Carbon Fiber|
|Fiber Specifications:||1K/3K/12K||Weaving Style:||Plain/Twill|
|Shape:||Round Or Customized||Advantage:||High Strength, Light Weight, Corrosion Resistance, Etc.|
|Application:||Cleaning Equipment, Automation Robotics, Telescoping Poles, Etc.||Service:||7/24|

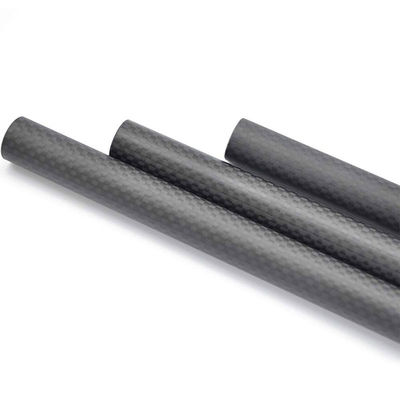

High Strength 3K Carbon Fibre Tube,
Matte Finish Carbon Fibre Tube,
Speargun Carbon Fibre Tube
Customized High Modulus High Strength 3K Carbon Fibre Tube for Speargun
Carbon Fibre Tubes Description:
Our carbon fiber tubes are all manufactured by our own production workshops, the performance, and quality are under our control. They are ideal for automation robotics, telescoping poles, FPV frame, because of their lightweight and high strength. Roll wrapped prepreg carbon fiber tubes including twill weave or plain weave for outer fabrics, unidirectional for the inside fabric. Additionally, glossy and smooth sanded finishes are all available. The inside diameter ranges from 6-60mm, the length is normally 1000mm. Generally, we offer black carbon tubes, if you have demand for color tubes, it'll cost more time. If it doesn't match your need, please contact us directly for your custom specifications.
|Product Name||Carbon Fibre Tubes|
|Material||100% Carbon Fiber|
|Color||Black or custom|
|Size||Custom thickness and length|
|Fiber Type||1. Carbon fiber+carbon fiber|
2. Carbon fiber+ glass fiber
3. Carbon fiber+aramid fiber
|Application||1. Aerospace, RC model parts Helicopters Model|
2. Manufacture fixtures and tooling
3. Industrial automation and robotics
4. Sports equipment
5. Musical instruments
6. Scientific apparatus
7. Medical device
|Our Product||Carbon fiber tube, carbon fiber plate, carbon fiber profiles.|
Carbon Fibre Products
1. 3K Roll Wrapped Carbon Fibre Tube
The tubes in this category are roll-wrapped pre-preg reinforcement. Roll wrapped tubes feature multi-axial orientation of the carbon fibres which gives them more uniformly distributed strength ideally suited to more demanding 'real world' applications where load and forces are rarely in only one direction. Typical uses include mast poles, spinnakers, booms, structural racking, and many other medium to heavy-duty applications.
We stock Carbon Fibre tubes manufactured using 3k plain weave style of Carbon Fibre Cloth Fabric. Plain weave carbon fibre fabric is the 2nd most commonly used type of carbon cloth. Instead of having the distinctive diagonal pattern of 2/2 twill, plain weave is woven over-one-under-one leaving it with a simple grid pattern appearance.
Roll-wrapped tubes feature a slight rib texture spiralling along their length where shrink-tape has been used in the manufacturing process. If needs be, this can easily be sanded and polished away.
Carbon fibre tubes are a rigid carbon fibre product. They cannot be bent or reshaped in any way.
2. Pultruded Carbon Fibre Tube
Pultrusion is the name given to the continuous process of manufacturing composite materials and generally produces sections including tube, rod, box, and angle with the unidirectional alignment of the fibres.
Because they are pultruded, the carbon fibre tubes in this section have unidirectional fibre alignment which gives them the maximum possible strength along their length but leaves them less strong in other planes meaning that particular care needs to be taken to how they are fixed to reduce crush forces and spread any load as evenly as possible.
3. Pultruded Carbon Fibre Rod
Useful in a wide range of projects, these solid carbon fibre rods are manufactured using unidirectional carbon fibres, pultruded to create perfectly straight rods of high structural performance in a range of diameters.
Carbon fibre rods are used as pull/push rods in robotics and mechanization applications, fuselage spars in R/C boats, planes and UAV projects, sports equipment and kites.
4. Pultruded Carbon Fibre Strip
Useful in a wide range of projects, these solid carbon fibre strips are manufactured using unidirectional carbon fibres, pultruded to create perfectly straight strips of high structural performance in a range of diameters.
Carbon fibre strips are used as pull/push rods in robotics and mechanization applications, fuselage spars in R/C boats, planes and UAV projects, sports equipment, and kites.
5. Carbon Fibre Sheet
Carbon fibre sheet is sheet material, reinforced either in part or in full by carbon fibre. It can be used in a wide range of applications including engineering, architecture, marine, aerospace and motorsport.
Rigid sheet is flat and cannot re-shaped or re-formed to follow any other shape.
We stock one type of carbon fibre sheet: pre-preg manufactured using 3k plain weave style of Carbon Fibre Cloth Fabric. Pre-preg carbon fibre sheet has a perfectly flat gloss finish on both sides, is very strong owing to its perfect ratio of reinforcement to matrix and pressure consolidation during curing, and is manufactured to engineering tolerances.
An alternative type of carbon fibre sheet is wet-lay (We do not stock this product). The Wet-lay sheet has a high gloss finish on one side, with an uneven surface on the reverse. It is stronger than fibreglass sheet (owing to its carbon fibre reinforcement) but not as strong as pre-preg.
