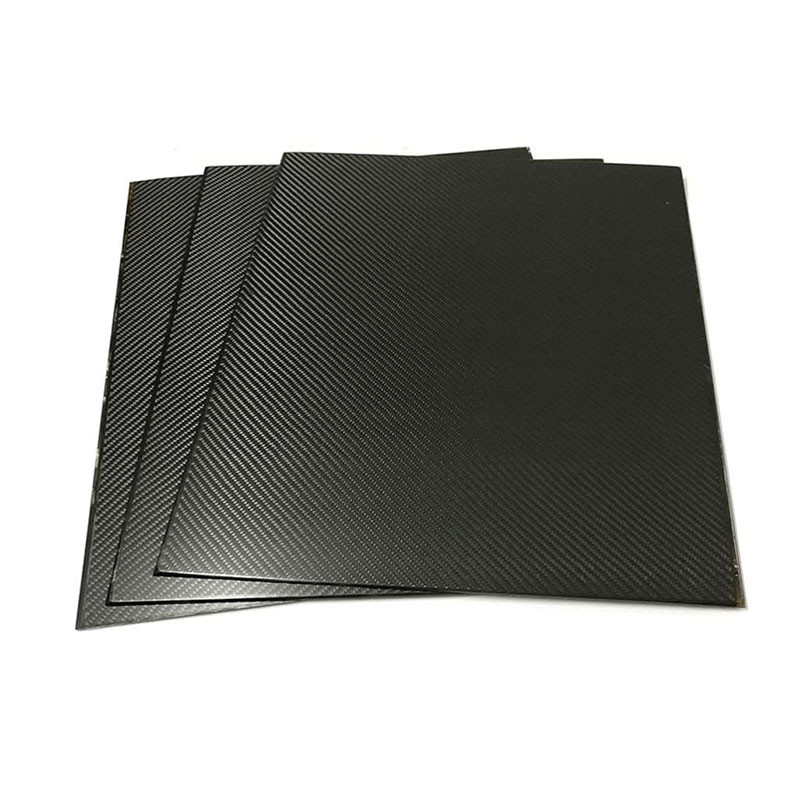

Corrosion Resistance 1mm Carbon Fiber Sheet High Strength Gloss Finish

Product Description

High Strength Corrosion Resistance 1MM Carbon Fiber Sheet - 100% Real 3K

This 1MM Carbon Fiber Sheet Made from 100% carbon fibre and epoxy resin - engineered for structural applications. All our CF sheets have been manufactured using a high-pressure heat press to achieve ideal carbon to resin ratios, maximum strength, and accuracy and even thickness. Our sheet is made using a combination of off-set unidirectional carbon fibre and finished with 3K plain weave cloth top and bottom providing a high gloss finish

on both sides.

1MM Carbon Fiber Sheet Description:

• Material: 3K matte-finish carbon fiber
• Thickness: 0.5mm, 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, Max to30mm
• Surface: Plain Glossy, Plain Matte, Twill Glossy, Twill Matte
• Standard size: 400*500mm and 500*500mm, 500*600mm, 500*1000mm,600*1000mm and 1000*1000mm,1200*1000mm.
• OEM order: We accept other sizes and thickness of carbon fiber sheets customized.
• CNC cutting service according to clients' design drawing, needs AutoCAD DWG or DXF format file.

1MM Carbon Fiber Sheet Features:

• Carbon fibre reinforced composites.
• Strong, stiff, and lightweight.
• Replacement for relatively heavy metallic materials.
• One glossy resin-rich side and one rougher side to show fabric weave detail.
• Extremely high carbon-carbon molecular bonds giving fibres high strength.
• Applications include aircraft, automotive, and rail.

Carbon Fiber Sheets Applications:

1. Automated machine arms and robotics

2. FPV drone frame, RC model parts, Helicopters Model Drone

3. Decoration parts for Car, jewelry, and furniture

4. Manufacture fixtures and tooling

5. Cell phones, portable computers

6. High-end Sports equipment

7. Musical instruments

8. Scientific apparatus

9. Medical device

Carbon Fiber Plate Specification:

LIJIN's High Strength Carbon Fibre Sheet is manufactured using 100% carbon fibre reinforcement and epoxy resin matrix, cured under pressure at elevated temperature to produce a carbon fibre sheet with engineering-grade mechanical properties and a class-A surface finish.

The 'A-side' of the sheet has the classic 2/2 twill, 3k woven carbon fibre appearance with a pin-hole free high gloss finish. The reverse of the sheet features an even textured 'peel ply' finish suitable for secondary bonding.

Laminate Composition

To achieve maximum stability and flatness in the sheets, we used 'balanced' laminates for all sheet thicknesses. This means that the fibre type, weight and weave is symmetrical from the front to the back ply.

The detailed layup schedule for each sheet, along with the fabric format and fibre type, can be seen on the Specification tab.

The matrix used is a high-performance epoxy resin that offers excellent mechanicals, clarity, and improved UV stability.

Quasi-Isotropic Layup

To create a more uniform distribution of strength, all our sheets are manufactured using both layers of 0°/90° oriented reinforcement in what is known as quasi-isotropic fibre orientation. Carbon fibre sheets using this layup technique offer improved stiffness across their diagonal axis and significantly improved torsional stiffness.
