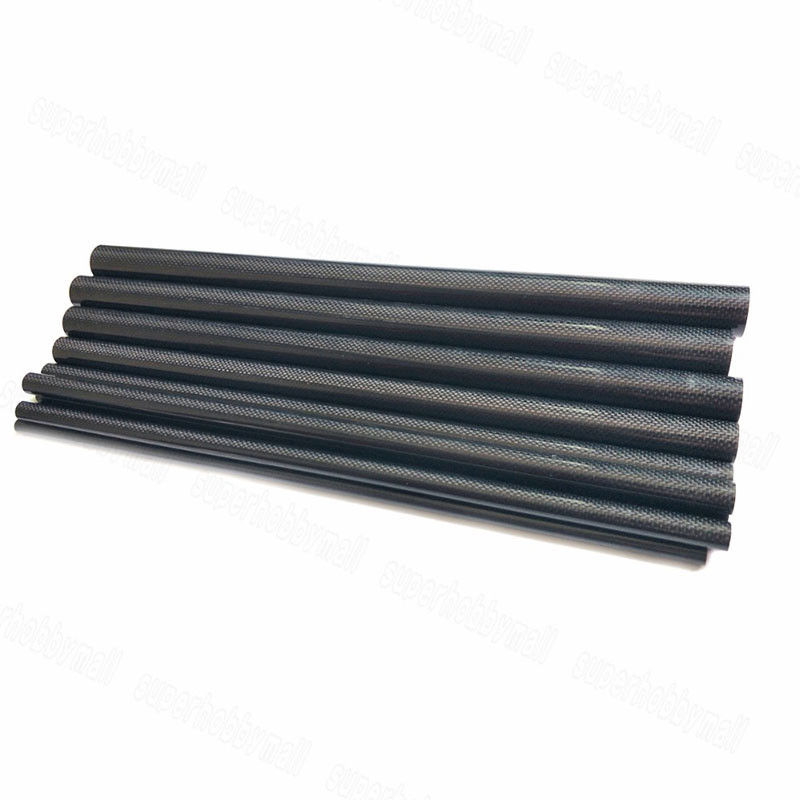

High Modulus Glossy Woven Carbon Fiber Tube Heat Resistance

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: Carbon Fiber Round Tubings Raw Materials: Carbon Fiber, Epoxy Resin
Manufacturing Method: Roll-Wrapped Carbon Fiber Material: 1K, 3K, 6K, 12K, 24K (according To Customer Requirements)
Surface: Twill Glossy/Twill Matte/Plain Glossy / Plain Matte Colors: Black Or Any Color From RAL
Density: 1.5g/cm³ Application: Cleaning Equipment, Automation Robotics, Telescoping Poles, Etc.
Advantage: High Strength, Light Weight, Corrosion Resistance, Etc.
High Light:

Glossy Woven Carbon Fiber Tube

,

High Modulus Carbon Fiber Tube

,

Automation Robotics Carbon Fiber Tube

Product Description



Heat Resistance High Modulus Glossy Woven Surface Carbon Fiber Round Tubings



Carbon Fiber Round Tubings Description:



Carbon Fiber Round Tubings are constructed using multiple wraps of twill and/or unidirectional fabrics. Rolled tubes are ideal for applications that require the highest bending stiffness and lowest weight, such as automation robotics, telescoping poles, idler rollers, and UAV components. The standard finish is cello-wrapped gloss, but a smooth sanded finish is also available.



These tubes are comprised of carbon fiber braid and unidirectional fabrics. This product is ideal for building lightweight frames and structures such as trusses. Our carbon fiber tubes have been engineered to be much stronger under torsional and side loading than pultruded tubing. They're also significantly lighter than pultruded tubing. Our carbon fiber large tubes have been designed so that the unidirectional layers are captured, eliminating longitudinal cracking and splitting. The finish on this product is different from our other product lines. These tubes show the texture of the carbon fiber braid with a wet and shiny appearance.



Carbon Fiber Round Tubings Features:



1. Lightweight, high strength
It is lightweight, only a quarter of the steel, it is convenient to transport, and easy to install. Compared to plastic products, it is several times higher in strength.



2. Corrosion resistance, anti-aging, long life
Carbon fiber products have good resistance in the erosion of the acid, alkali, salt, and some organic solvents,



3. It is much better in corrosion protection areas than other metals and has good water resistance and aging resistance both in corrosive environments and harsh outdoor, humid environment operations.



Product Name
Carbon Fiber Round Tubings
Raw Materials
Carbon Fiber, Epoxy Resin
Manufacturing Method
Roll-Wrapped
Carbon Fiber Material
1K, 3K, 6K, 12K, 24K (according to customer requirements)
Structure
UW
U= Unidirectional Prepreg
W= Woven Prepreg
Surface
Twill Glossy/Twill Matte/Plain Glossy / Plain Matte
Density
1.5g/cm³
Diameter Range O.D.
From 6mm O.D. to 300 mm
Wall Thickness
From 0.5mm to 8mm
Length
From 1 Meter to 4 Meters
Colors
Black Or Any Color from RAL
Applications:
Sports equipment, medical equipment, transportation, communications, drones, smart robots, new energy vehicles, etc.



Application:



1. Aerospace, Helicopters Model Drone, UAV, FPV, RC Model Parts

2. Manufacture Fixtures And Tooling, Industrial Automation

3. Sports Equipment, Musical Instruments, Medical Device

4. Building Construction Repair And Strengthening

5. Car Interior Decoration Parts, Art Products



Regular Size (customized size according to customer requirements)
OD(mm)
ID(mm)
WEIGHT(gram/m)
6
4
24
8
6
33
10
8
42
15
13
66
20
18
89
22
20
99
25
23
113
28
26
127
30
28
137
40
38
184
50
48
230
*Maximum Length: 4000mm ; Mximum OD: 300mm
*Accept OEM customization
