Light Weight Pullwinding Carbon Fiber Tube Round Pultrusion Process
Contact Person : Terry.Chang, Annie.Liang
Phone Number : +86-13681832139
WhatsApp : +8613681832139
|Minimum Order Quantity :||Negotiable||Price :||Negotiable|
|Packaging Details :||Normal Corrugated Carton Packing for International Shipment||Delivery Time :||7 working days after receiving Order Pay|
|Payment Terms :||T/T, Western Union, L/C||Supply Ability :||1500pcs month|
|Place of Origin:||China||Brand Name:||Tanku|
|Certification:||SGS, ROHS||Model Number:||OEM|
|Features:||Lightweight, High Strength||Product:||Glossy Carbon Fiber Tube Pipe|
|Size:||400×500mm, 500×600mm, Etc.||Shape:||Round Or Customized|
|Surface:||Glossy Surface||Thickness:||0.5-1.0mm, 1.5-2.0mm, 6.0mm, Etc.|
|Length:||500,600,800,1000mm Or Customized||Material:||100% 3K Pure Carbon Fiber|
|Using For:||Cleaning Equipment, Etc.|
3K Roll Wrapped Carbon Fiber Tube,
0.3mm Thickness Carbon Fiber Tube,
Glossy Surface Carbon Fiber Tubing

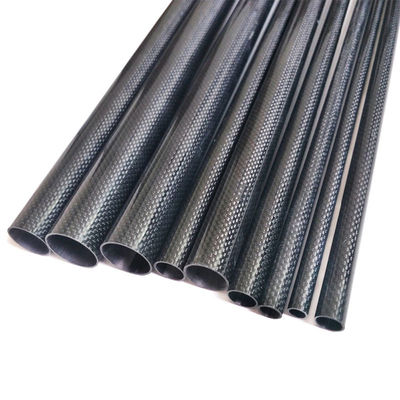

3K Roll Wrapped 100% Carbon Fiber Tube Glossy Surface Tubes - 400×500mm
Glossy Carbon Fiber Tubes Description:
Carbon fiber tube manufactured by using the pultrusion technique in which the high-performance carbon fibers are all oriented parallel to the longitudinal axis (unidirectional) and internally reinforced with more unidirectional carbon fibers laminated by using pull winding technology to achieve greater resistance to bending and torsion.
This type of profile has a high specific mechanical resistance (related to its weight), lightness, rigidity, great resistance to fatigue and vibrations, resistance to oxidation and corrosion, low coefficient of thermal expansion and durability.
Pultrusion is a technique of continuous production of linear profiles with a constant section. This process has many similarities to extrusion, the main difference is in the feeding system: in extrusion, the material is pushed through the matrix (mold), in pultrusion it is extracted from the matrix. This procedure does not allow variations in shape, sections, or curves.
Products made with this technology have excellent tensile strength properties due to the linear orientation of the fibers in the direction of the axis of the profile; if it is also necessary to have a good transversal resistance, a woven fabric is used as a backing in specific quantities and weights.
|I.D.mm||O.D.mm||Length mm||Weave||Finish||N.W.(G/PC)||Material Type|
|14||16||1000||Twill||Matte||100||Full Carbon Fiber|
