Twill Weave Hardness Carbon Fiber cnc machining service from Full plate

Minimum Order Quantity : 1-10pcs Price : USD 13--USD23
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 6000pcs month
Place of Origin: China Model Number: 0311CFPLTCNC

Detail Information

Product Name: Carbon Fiber Cnc Service Machining Tolerance: ±0.02mm
Weave: Twill Carbon Fiber Plate Standard Thickness Optioins: 0.5mm,1.0mm, 1.5mm, 2.0mm, 2.5mm
Spindle Speed: 25000-55000 RPM Order Lead Period: 5-7 Days After Order Confirmation
High Light:

Machining Carbon Fiber


Carbon Fibre Machining

Product Description

Carbon Fiber cnc machining service--carbon fiber cnc service from Full plate.



Processing characteristics
Carbon fiber composite material is a kind of difficult machining material, its large brittleness, high hardness,

process prone to delamination,
The tear
Burr and so on.

Carbon fiber composite material is made of soft matrix in the high viscosity and high strength,
Hardness large fiber blend
And two phase or multiphase structure,
Its mechanical properties show anisotropy,
Machining conditions is bad,
Carbon fiber composite materials
The main characteristics of machining is as follows:

Tool wear serious, durability is low.High temperature of cutting zone and to focus on within the very narrow

region near the cutting edge of cutting tool and fiber
D of springback and powder of chip and increased after blade and knife scraped surface,
Combined with the carbon fiber of hardness is very high,
So the tool grinding
After damage is serious, trench knife of the interaction between the wear and durability is low.





100% carbon fiber

Max size





as per your request

Surface Finish

High glossy / matte


3K plain weave ,3K twill weave




Carbon fiber advantage nc machining characteristics

1). High Strength
2). Good Tenacity
3). High Corrosion Resistance
4). Excellent Structural Properties
5). UV Resistant Inhibited
6). Environmentally Safe


Advantages and disadvantages

Carbon fiber enhanced composite material has a few good features in advanced materials and systems.

Two common application of carbon fiber is the weight of the strength and hardness under the satisfying

requirements, including space, military structure, robot, wind power, production equipment, sports

equipment and other many aspects.

When combined with other materials to achieve high toughness, specific application may also be applied

to the conductivity of carbon fiber and the high thermal conductivity.Finally, in addition to the basic

mechanical properties of carbon fiber has a unique and beautiful surface finish.

First solid carbon fiber is not easy to deformation, when under the condition of mild bending will not

deformation, on the contrary once more than the limit carbon fiber will complete to break the bad.

In the design process engineer must understand the features, especially in the design of the safety

factors to consider.At the same time it is worth noting that the carbon fiber composite material is more

expensive than traditional.

***Pictures shown below are only to display the carbon fiber CNC capability,experience and Quality from LijinCarbon.
     LijnCarbon will NOT disclose or share any drawings or product detail to third parties.

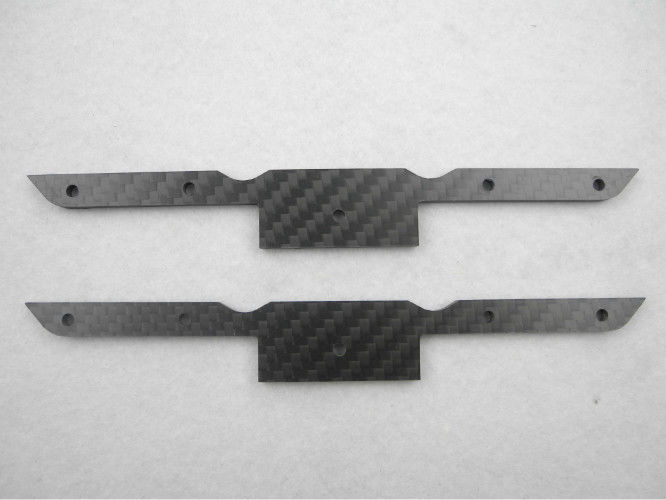

Twill Weave Hardness Carbon Fiber cnc machining service from Full plate 0


Twill Weave Hardness Carbon Fiber cnc machining service from Full plate 1


Twill Weave Hardness Carbon Fiber cnc machining service from Full plate 2


Twill Weave Hardness Carbon Fiber cnc machining service from Full plate 3
