1.5mm 200x300mm 100% Carbon Fiber Sheet Laminate Board Plate Panel 3K Twill Matte Finish
Contact Person : Terry.Chang, Grace Gu
Phone Number : +86-13681832139
WhatsApp : +8619537611058
Minimum Order Quantity : | 2pcs | Price : | USD 10.50-USD15.75 |
---|---|---|---|
Packaging Details : | Normal Corrugated Carton Packing for International Shipment | Delivery Time : | 7 working days after receiving Order Payment |
Payment Terms : | T/T, PayPal,Western Union , L/C | Supply Ability : | 1500pcs month |
Place of Origin: | China | Model Number: | TG_250mm_350mm_1.5mm |
---|
Detail Information |
|||
Characteristic: | Light Weight | Is_customized: | Yes |
---|---|---|---|
Cutting Revolutions: | 25000 Mpa | Thickness Tolerance: | ±0.1 |
Thicknes Optional: | 1.0 2.0 3.0 4.0 | Remote Control Peripherals/Devices: | Remote Controller |
Highlight: | Carbon Fiber Sheets,Carbon Fiber Board |
Product Description

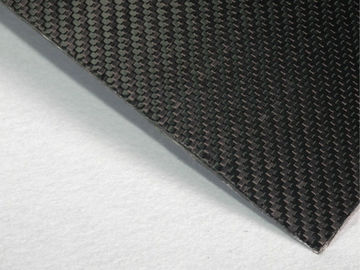

3K Twill glossy Carbon Fiber Plate 1.5mm Thickness 250mm*350mm Sheet UAV use .
Compared with the carbon fiber cloth, carbon fiber board has the following
advantages
1. Carbon fiber sheet is more suitable for adopts prestressed reinforcement method, can give full play
to their role as the carbon fiber high strength more,
2. Construction is convenient, easy to guarantee construction quality,
3. Carbon fiber plate than carbon fiber cloth is easy to keep straight, more conducive to carbon fiber,
4. A 1.2 mm thick plate is equivalent to 10 layers of carbon fiber cloth,
5. Compared with fiber cloth, fiber board wall brick mix structure are .
Specification
Length |
250mm |
Width |
350mm |
Thickness |
1.5mm |
High quality |
100% pure carbon fiber/full/plate (not including glass fiber) |
Weaving/pattern direction |
twill |
The two sides |
glossy |
The development
During the 1980s Courtaulds continued to be a major supplier of carbon fiber for the sporting goods
markets, with Mitsubishi its main customer. Sadly, a move to expand, including building a manufacturing
plant in California, turned out unfortunately. The investment didn't generate the anticipated returns,
leading to a decision to pull out of the area. Courtaulds ceased carbon fiber production in 1991, though
ironically the one surviving UK carbon-fiber manufacturer continued to thrive making fiber based on
Courtaulds's precursor. Inverness-based RK Carbon Fibres Ltd has focused on producing carbon fiber
for industrial applications, and thus does not need to compete at the quality levels reached by overseas
producers.
Each carbon filament thread is a bundle of many thousand carbon filaments. A single such filament is
a thin tube with a diameter of 5-8 micrometers and consists almost exclusively of carbon. The earliest
generation of carbon fibers (i.e., T300, and AS4) had diameters of 7-8 micrometers. Later fibers
(i.e., IM6) have diameters that are approximately 5 micrometers.
Precursors for carbon fibers are rayon, polyacrylonitrile (PAN) and pitch. Carbon fiber filament yarns are
used in several manufacturing techniques: the direct uses are for prepregging, pultrusion, filament
winding, weaving, braiding, etc. Carbon fiber yarn is rated by the linear density (weight per unit length,
i.e. 1 g/1000 m = 1 tex) or by number of fibers per yarn count, in thousands. For example, 200 tex for
3,000 filaments of carbon fiber is three times as strong as 1,000 carbon fibers, but is also three times
as heavy. This count is usually expressed as 3K, 12K, 6K, etc. This thread can then be used to weave
a carbon fiber filament fabric or cloth. The appearance of this fabric generally depends on the linear
density of the yarn and the weave chosen. Some commonly used types of weave are plain, 2x2 twill,
4x4 twill and satin.
