3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model

Contact Now

3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model

Minimum Order Quantity :	Negotiable	Price :	Negotiable
Packaging Details :	Normal Corrugated Carton Packing for International Shipment	Delivery Time :	7 working days after receiving Order Pay
Payment Terms :	T/T, Western Union, L/C	Supply Ability :	1500pcs month

Place of Origin:	China	Brand Name:	Tanku
Certification:	SGS, ROHS	Model Number:	OEM

Detail Information
Product Name:	Roll Wrapped Carbon Fiber Tube	Material:	3K Carbon Fiber
Colour:	Black	C Content (%):	30%~100%
OD:	6mm	ID:	4/5mm
Length:	500mm	Color:	Black
Highlight:	3K carbon fiber tube for RC models , 6mm carbon fiber roll wrapped tube , 500mm carbon fiber tube with warranty

Product Description

3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model

A roll-wrapped carbon Fiber Tube is a high-performance tubular structure made by wrapping multiple layers of carbon fiber fabric around a mandrel (a cylindrical mold), typically using unidirectional and woven fabrics. After wrapping, the tube is cured under heat and pressure to achieve its final strength and stiffness.

Our tube is a roll tube (Filament winding Technology), not a pultrusion tube. Roll tubes have the longitude and weft yarn, but pultrusion tubes only have the longitude, not weft yarn, so the strength is not as well as roll tubes. Carbon fiber is very lightweight; its strength is steel's 9 times, but its weight is about 1/3 that of steel!

Our roll-wrapped carbon fiber tubes are manufactured by wrapping multiple layers of 12k UD and 3k twill/plain carbon fiber prepregs around a metal mould and then cured at high temperature. The UD prepregs are used in core layers, whereas the Twill/Plain is on the surface. Based on your requirement, we can also use Kevlar and glass fiber.

Available in matte and gloss finishes, these tubes are not only good-looking but also extremely stiff and strong. Such roll-wrapped tubes are available in round, square, rectangular, hexagonal, and octagonal shapes. All these tubes are custom-made based on the client's requirements. The smallest Inner diameter is 5mm, and the longest length is 3 meters.

You could enjoy a more favorable price with a larger quantity.

Size: OD6mm x ID4mm/5mm x length 330mm/500mm
Product Name: OD mm x IDmm x length 330mm/500mm 3k Carbon Fiber Tube (Roll Wrapped)
Composite Material: 100% Pure Carbon Fiber
Weave Pattern: 3K Plain Weave
Dimensions (outer diameter x inter diameter x length): OD mm x ID mm x length 330mm/500mm
Brand of 3K Carbon Fabric: Toray Carbon (JAPAN)
Dry(Prepreg)/Wet: Dry (Prepreg: it had already dipped into the resin)
Finish: Glossy/Matt Finish (Sprayed with UV-Resistant Clear Coat)

Key Features

High Strength-to-Weight Ratio: Much lighter than metals like steel or aluminum while offering comparable or superior strength.
Excellent Stiffness: Especially along the fiber direction, making it ideal for load-bearing applications.
Customizable Layup: Fiber orientation can be tailored (0°, ±45°, 90°) to optimize torsional strength, bending stiffness, or impact resistance.
Smooth Finish: Usually comes in a glossy or matte 3K twill/plain weave outer layer for aesthetics and abrasion resistance.
Durability: Corrosion-resistant, fatigue-resistant, and suitable for harsh environments.

Feature	High Tensile Strength/ LowWeight/ Excellent Structural Properties/ Low Density
Resin	Epoxy Resin
Weaving	3K Plain/ Twill/ Unidirectional
OD Range	5mm-100mm
Length	Cut at any size according to the requirement
Finish	Glossy/ Matte/50% Glossy
Color	Customized Color
ODM/OEM Services	Bonding, drilling, punching, assembling with other materials, and precision CNC cutting are also available.
Applications	Sailing, Yacht, Sports Equipment, Telecommunications, Drones, Intelligent Industrial Robot, New-energy Car.....

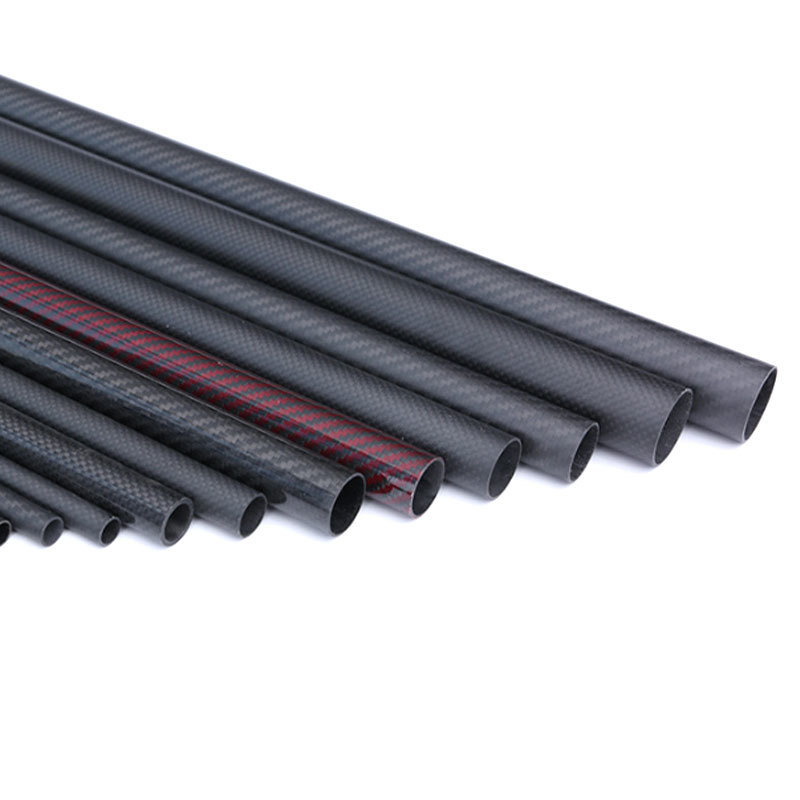

3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model 0

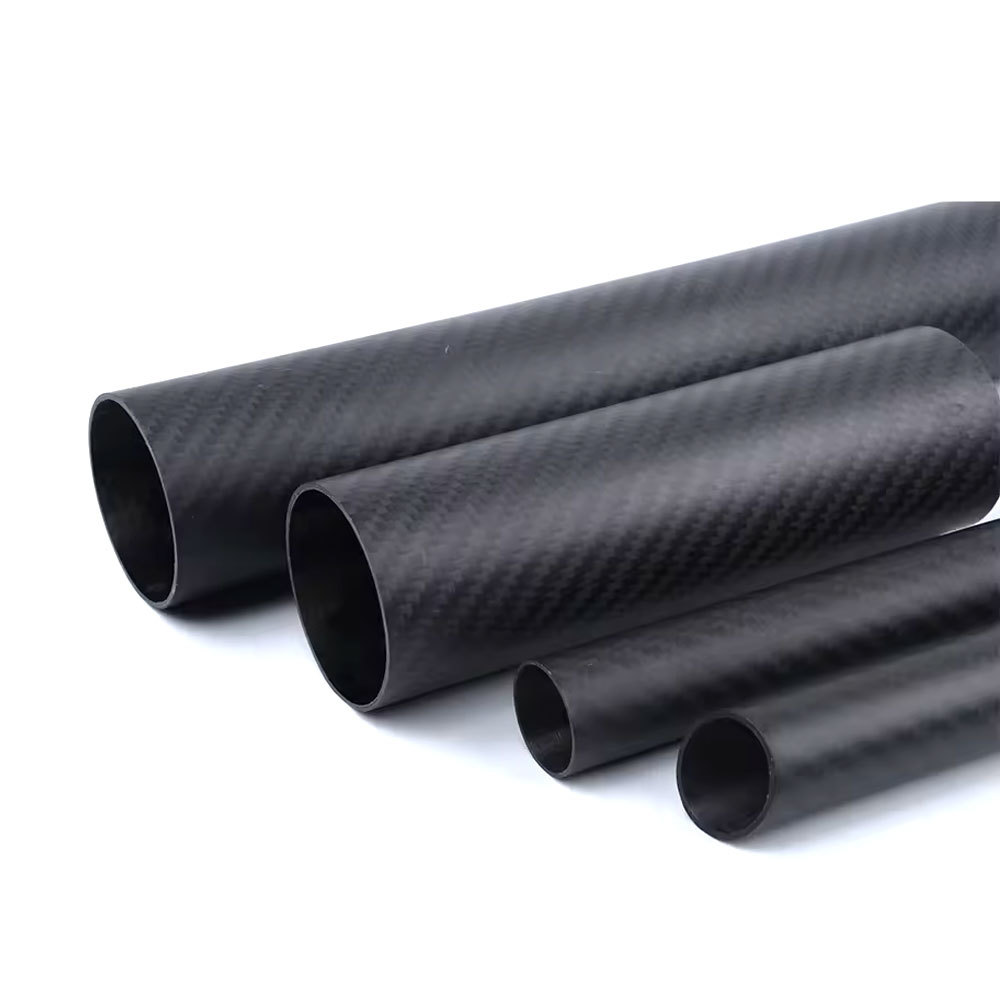

3K Roll Wrapped Carbon Fiber Tube OD 6mm X ID 4/5mm X Length 500mm for RC Model 1
