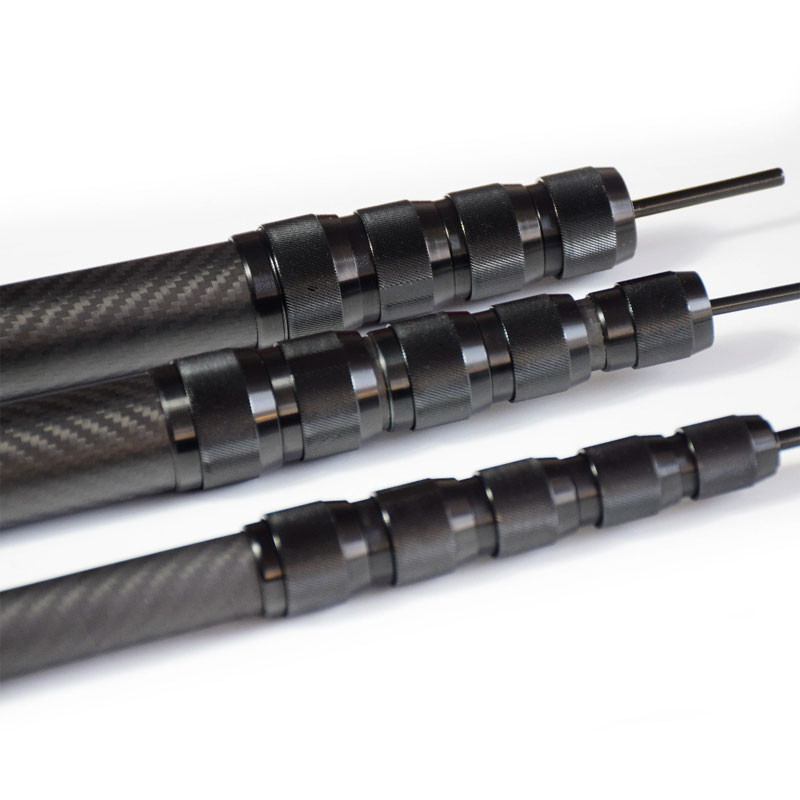

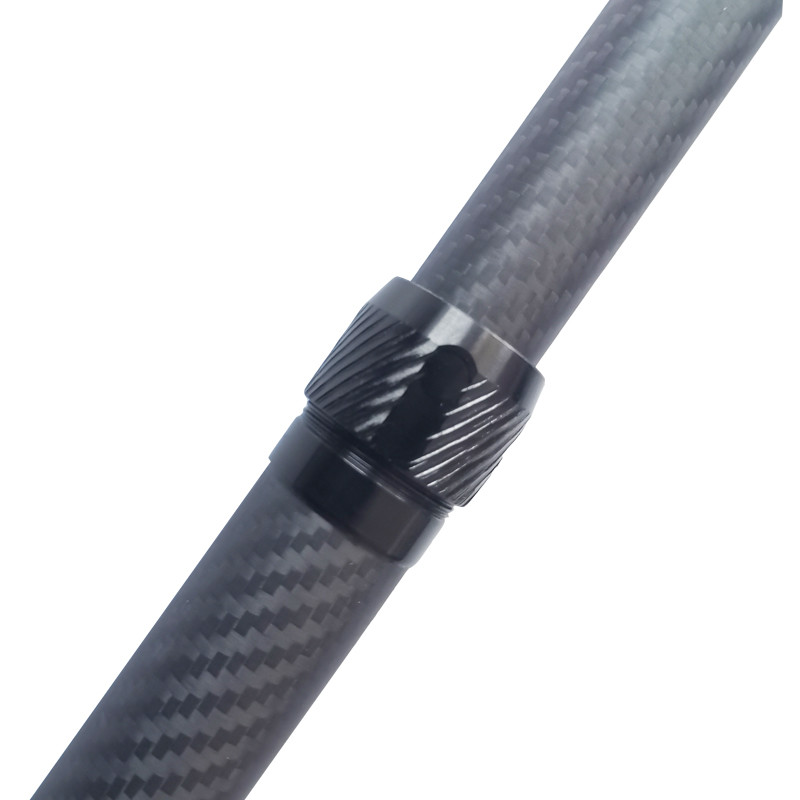

3.2 Meter 10.5 Feet Rod Carbon Fiber Tube Extension Pole Telescopic Pipe With Spin Lock

Product Description

3.2 meter 10.5 feet Rod Carbon Fiber Tube Extension Pole Telescopic Pipe With Spin Lock

A telescopic carbon fiber tube is a type of tube made from carbon fiber material that can extend and retract in length. These tubes are designed with multiple sections that slide within each other, allowing for adjustable length. They are commonly used in applications where space-saving and versatility are key factors, such as in tripods, poles, drones, or sporting equipment.

Advantages of carbon fiber telescopic pole

We are a professional chinese manufacturer of FRP profiles. and also carbon fiber products for more than 10 years! we produce all types of carbon fiber telescopic poles, panels, bars, rods, CNC sheets Etc excellent properties include: corrosion resistance /lightness /good toughness If you want to order our products, please include ID, OD, length, dimensional tolerances, quantity, structural requirements, surface finish, surface pattern, material (if you know), temperature requirements, processing technology, etc. With these items as the starting point, we can usually very quickly put together a quotation to help you get your project from idea to reality.

Key Features

• Lightweight: Carbon fiber is known for being incredibly strong yet lightweight, which is ideal for reducing the overall weight of the equipment.
• High Strength-to-Weight Ratio: The carbon fiber construction gives the tube excellent strength while keeping it light.
• Durability: Carbon fiber is highly resistant to corrosion, rust, and fatigue, which makes these tubes more durable than metal alternatives.
• Adjustability: The telescopic design allows users to adjust the tube length to fit various needs, making it highly versatile.
• Stiffness and Stability: Despite being lightweight, carbon fiber is very stiff and stable, making these tubes ideal for precision and support.
• Common Applications:
• Photography & Videography: For adjustable tripod legs or monopods.
• Aerospace & Drones: In drone arms or antennas where compactness and strength are important.
• Sports Equipment: For poles or rods in activities like fishing or skiing.
• Marine & Outdoor Gear: For telescoping paddles, poles, or supports.

Detailed Size:

CHARACTERISTICS:
• Extended total length: 5000mm. (Tolerance ± 10mm.)
• Total length collected: 1360mm. (Tolerance ± 10mm.)

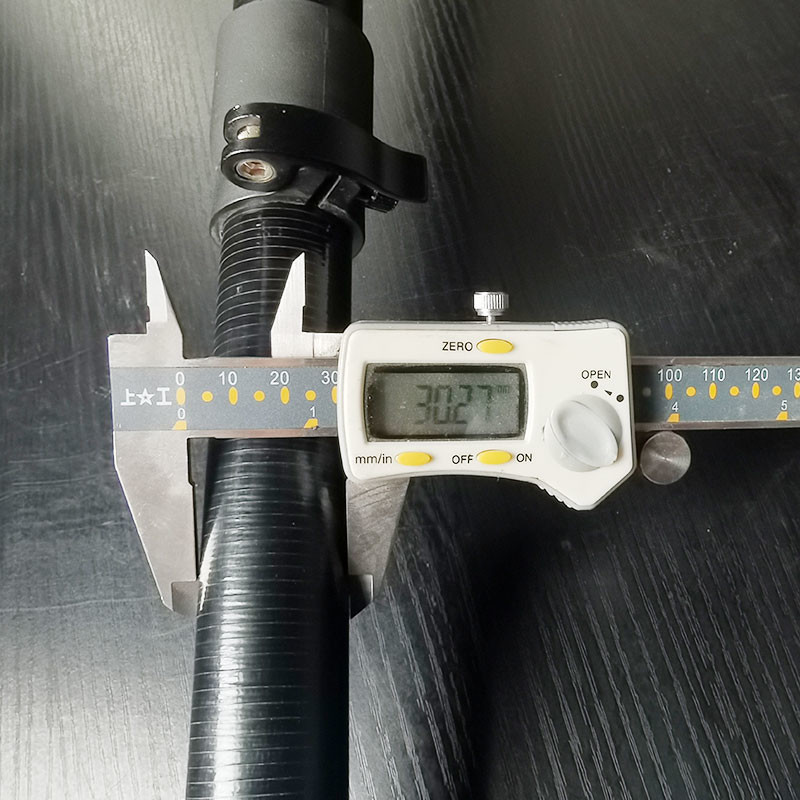

• Outside diameter of the larger tube: 31mm. (Tolerance ± 0.2mm.)
• Wall of the tubes: 1mm. (Tolerance ± 0.2mm.)
• Total weight: 812gr. (Tolerance ± 50gr.)
• Fiber: carbon 3K 200 gr / m2 Fabric Twill 2x2 (Twill)
• Resin: Epoxy
• Orientation of the fibers: Bidirectional

Carbon fiber versus other materials.

The tensile strength of carbon fiber material is 3530MPa, 1MPa=1N/mm2, that is 3530N/mm2, translated into colloquial words, a cross-section of 1 square millimeter can withstand 3530 Newtons of force, that is 353Kg Carbon fiber tubes are more durable and can withstand a lot of stress.

In load-bearing comparison, the advantages of carbon fiber tubes are obvious. The tensile strength of carbon fiber tubes of T300 grade can reach about 3500MPa, and the tensile strength of aluminum alloy tubes can reach 420MPa.

Carbon fiber telescopic poles because of their material characteristics, in a long time, so, do not worry about rust and other problems. Rainproof, they corrosion resistant, long service life. Aluminum alloy tubes in use for some time will gradually be corroded.
