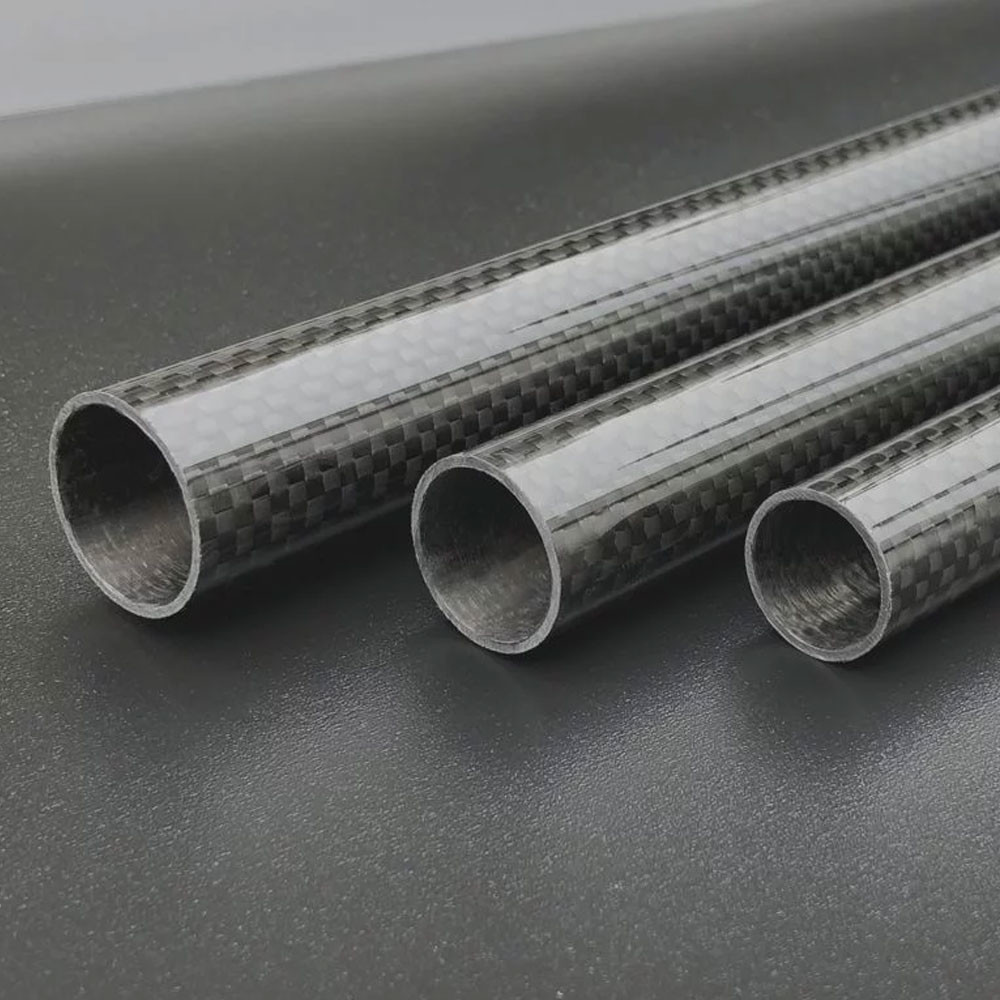

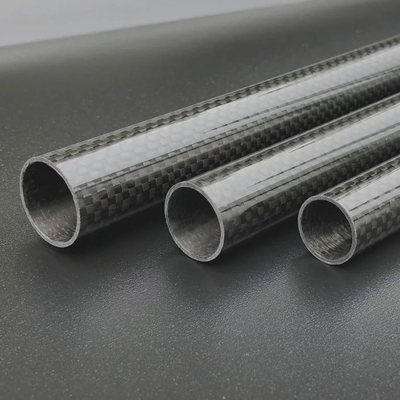

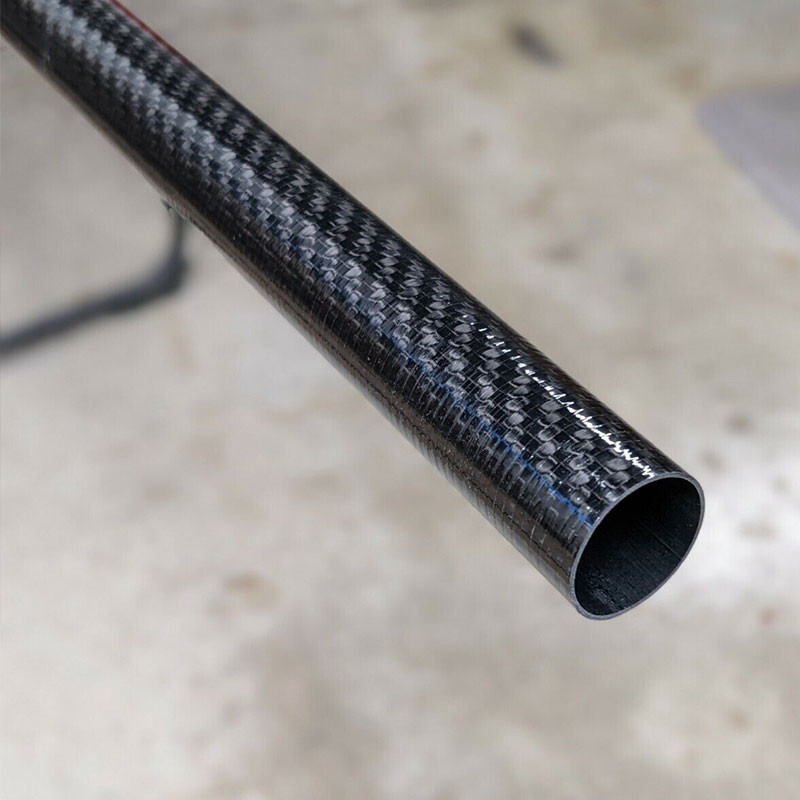

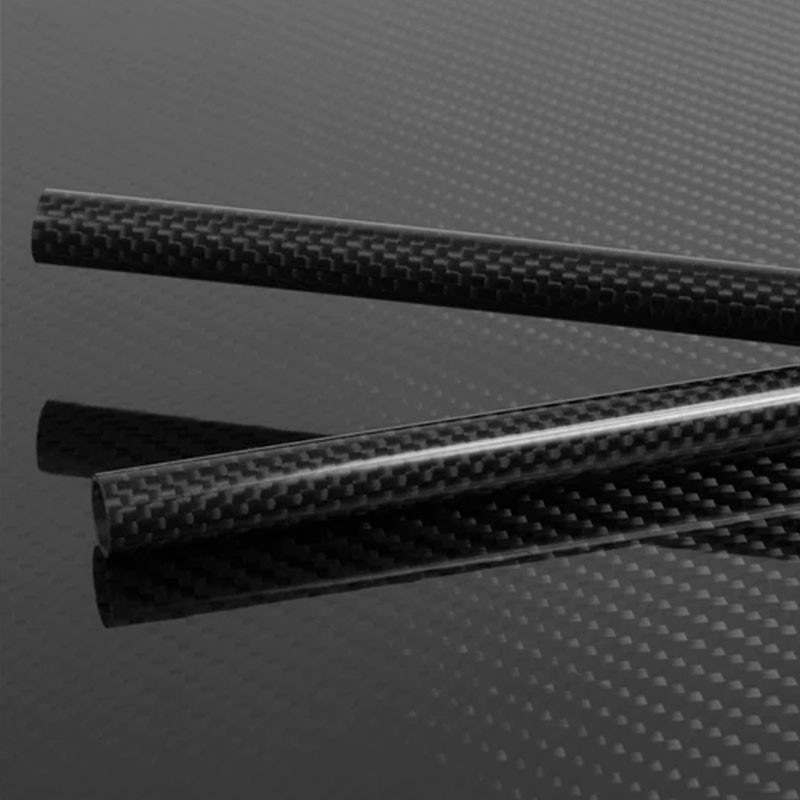

High Grade Flexural Strenght Wrapped Prepreg Carbon Fibre Tube 18.0x16.0 X 1000 Mm CFRP

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: Prepreg Carbon Fibre Tube Outside Diameter: 18.0mm
Inner Diameter: 16.0mm Lenght: 1000mm
Weight: Approx.80 G/Meter Thermal Stability: Up To 120° C
Fibres: HT-Fibres With Epoxi Resin Matrix Fibre Volume Fraction: Appr. 65%
Highlight:

Wrapped Prepreg Carbon Fibre Tube

,

18.0x16.0 Carbon Fibre Tube

,

Wrapped Prepreg Carbon Fibre Tube

Product Description

High Grade Flexural Strenght Wrapped Prepreg Carbon Fibre Tube 18.0x16.0 x 1000 mm CFRP



High-grade wrapped Carbon Fibre Tubes produced from Prepregs. Inner layers are unidirectional (0/+/-45°/90°) and outside 3K-fabric layers. Smooth surface sealed with clear Topcoat. Leight weight, excellent tensile strength, pressure resistance, and flexural strength.

  • Outside diameter: 18.0 mm +/- 0.15 mm
  • Inner diameter: 16.0 mm +/- 0.15 mm
  • Length: 1000 mm + 5 mm
  • Weight: approx. 80 g / Meter
  • Thermal stability: up to 120° C
  • Fibers: HT-Fibres with epoxy resin matrix
  • Fibre volume fraction: appr. 65%

LIJIN premium quality carbon fibre tubes are manufactured using 100% high-strength carbon fibre reinforcement and epoxy resin with a smooth, glossy, cosmetic quality carbon fibre finish on both sides. It is suitable for a huge range of structural and cosmetic applications within motorsport, marine, shopfitting, exhibitions, automation, medical, scientific, and many more.

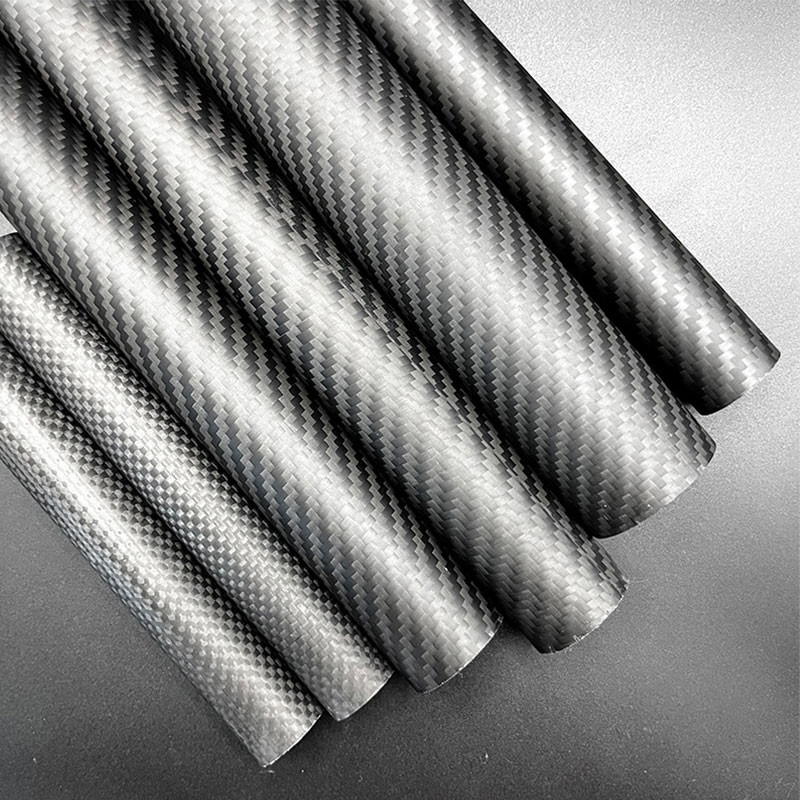

Carbon fibre tube manufactured using 3k Twill weave style of Carbon Fibre Cloth Fabric. Twill weave carbon fibre fabric is the most commonly used type of carbon cloth, having the distinctive diagonal pattern of 2/2 twill. Plain weave is woven over-one-under-one leaving it with a simple grid pattern appearance.


Roll-wrapped prepreg carbon fiber tubes are constructed using multiple wraps of twill and plain/or unidirectional fabrics. Rolled tubes are ideal for applications that require the highest bending stiffness and lowest weight, such as automation robotics, telescoping poles, metal detectors, and UAV components.



High-Quality Carbon Fibers Material



The carbon fiber material we use is resin-impregnated woven cloth that is commonly referred to as “pre-preg.” It is made with high-quality carbon fibers combined with space industry-defined resin systems.



Beautiful and Quality Tubes



We use heated compression molding to cure the pre-preg material into round tubes.

  • High strength and stiffness with low weight
  • Excellent fatigue resistance
  • Dimensional stability: Low to Zero CTE (Coefficient of Thermal Expansion)

Widely Application



LIJIN offers a wide range of carbon fiber tubes for many different applications. Carbon fiber tubes are used in numerous applications like tactical ladders, trusses, beams, and more.



Product Usage

  • Drones - Carbon fiber is ideal for use in chassis components and rotor arms for racing, agricultural or industrial drones.
  • Transportation - Whether you want to save weight or add some style to your car, truck, ATV, motorcycle or scooter, carbon fiber can serve many different purposes.
  • Robotics - Carbon fiber is thin, light, and strong, which is perfect for robotic parts large and small, whether structural or not. It can also work well for covers or enclosures.
Material Carbon Fiber Tube
Shape Round/Square
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


Our Service:

1. It ensures a year of quality assurance and 24-hour online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature techniques.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.
