High Fatigue Resistance 1-4mm Thickness Twill Weave Carbon Fiber Sheets and Plates

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Product Name: Carbon Fiber Sheets And Plates Straightness: Less Than 0.005 Mm
Material: Carbon Fiber & Epoxy Resin Tolerance: +/-0.05mm
Length: As Per Our Customers Reguest Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, Etc.
Standard Size: 400*500mm, 500*500mm, 500*600mm, Etc. Advantages: 100% High Strength Carbon Fibre Reinforcement Throughout
Highlight:

4mm Thickness Carbon Fiber Sheets

,

High Fatigue Resistance Carbon Fiber Sheets

,

Twill Weave Carbon Fiber Sheets

Product Description

High Fatigue Resistance 1-4mm Thickness Twill Weave Carbon Fiber Sheets and Plates



Carbon fiber sheets and plates are flat, rigid materials made from layers of carbon fiber-reinforced polymer (CFRP). They are known for their lightweight, high strength, and durability, making them ideal for a wide range of applications, including aerospace, automotive, sporting goods, and construction.



Application

  • Aerospace: Used in manufacturing fuselage components, wing surfaces, and interior parts to enhance aircraft performance and fuel efficiency.
  • Automotive Industry: Used in making body panels, chassis parts, and interior structures to reduce vehicle weight and improve fuel economy.
  • Consumer Electronics: Utilized in producing laptop shells, smartphone back covers, and other components, offering lightweight and durable solutions.
  • Medical Equipment: Applied in the production of lightweight medical devices, such as operating tables and wheelchairs, to improve ease of use.
  • Sports Equipment: Used in the manufacture of bicycle frames, tennis rackets, and other sports gear, providing high-strength, lightweight equipment.
  • Building Materials: Employed in constructing building components like curtain walls and staircases, enhancing the durability and aesthetics of structures.

Carbon Fiber Flat Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



Production Process of Carbon Fiber Sheets and Plates



1. Raw Material Preparation: Prepreg Preparation: Use high-quality prepreg (carbon fiber fabric impregnated with epoxy resin) to ensure uniform resin content and carbon fiber alignment.



2. Cutting the Prepreg: Cutting: Cut the prepreg to the required size and shape according to the design specifications. Ensure clean edges during cutting to maintain accuracy in the subsequent lamination process.



3. Lamination: Laminating: Stack the cut prepreg layers according to the desired thickness and strength. Each layer of prepreg should be arranged in a specific direction to achieve optimal mechanical properties.



4. Placing in the Mold: Mold Preparation: Select an appropriate mold and place the stacked prepreg into the mold, ensuring the prepreg is flat and wrinkle-free. The mold surface should be treated with a release agent to facilitate demolding.



5. Vacuum Bagging: Bagging: Use a vacuum bag to seal the mold and prepreg, ensuring a good seal. The purpose of vacuum bagging is to remove air and prevent the formation of bubbles and voids during the autoclave process.



6. Autoclave Curing

  • Curing: Place the sealed mold into the autoclave, setting the appropriate temperature, pressure, and time for curing. The typical curing temperature ranges from 120-180°C, with a pressure of 5-7 bar. The specific parameters are adjusted according to the properties of the prepreg and product requirements.
  • Solidification: During the autoclave process, the resin in the prepreg will flow and cure, forming a solid and robust carbon fiber board structure.

7. Demolding

  • Cooling: After curing, allow the mold and carbon fiber board to cool naturally to room temperature.
  • Demolding: Carefully remove the carbon fiber board from the mold, ensuring no damage to the surface.

8. Post-Processing

  • Trimming: Use cutting equipment to trim the edges of the carbon fiber board to achieve the final dimensions and shape.
  • Surface Treatment: Perform surface treatments (such as sanding or coating) to achieve a smooth or matte finish as per customer requirements.

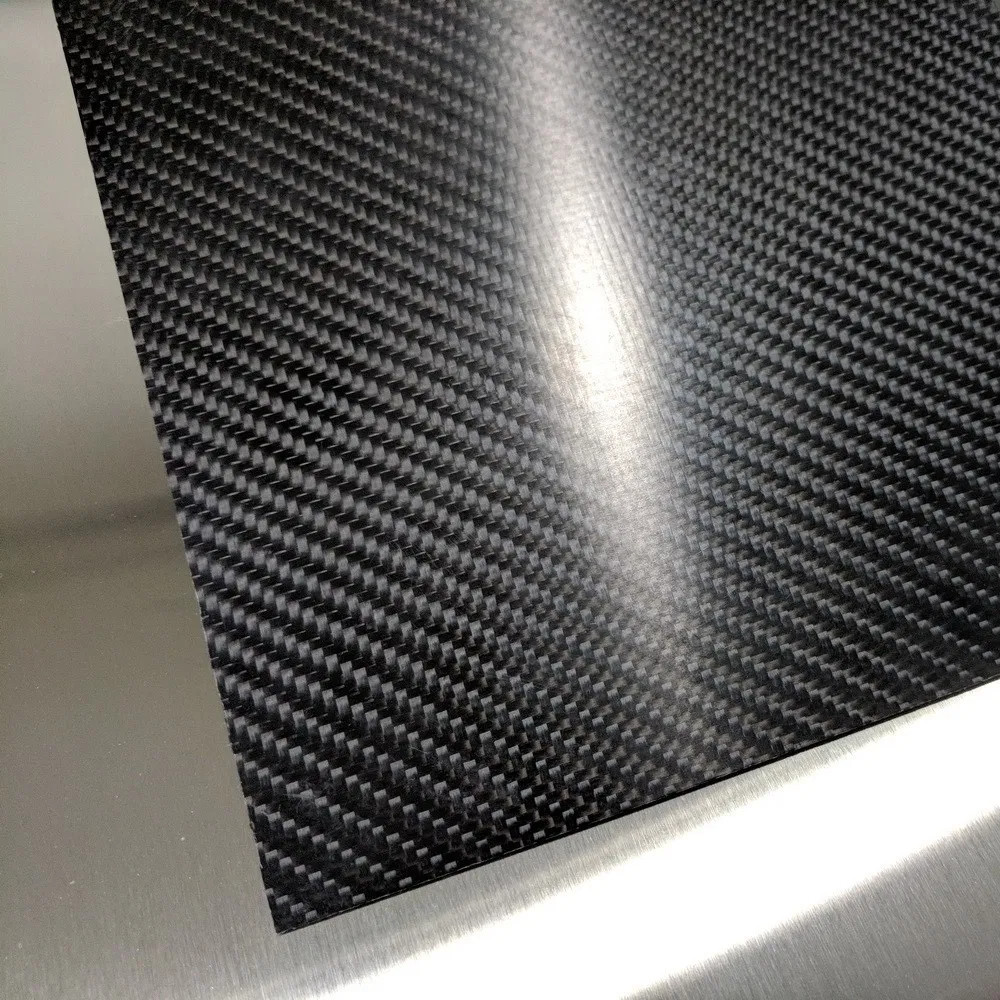

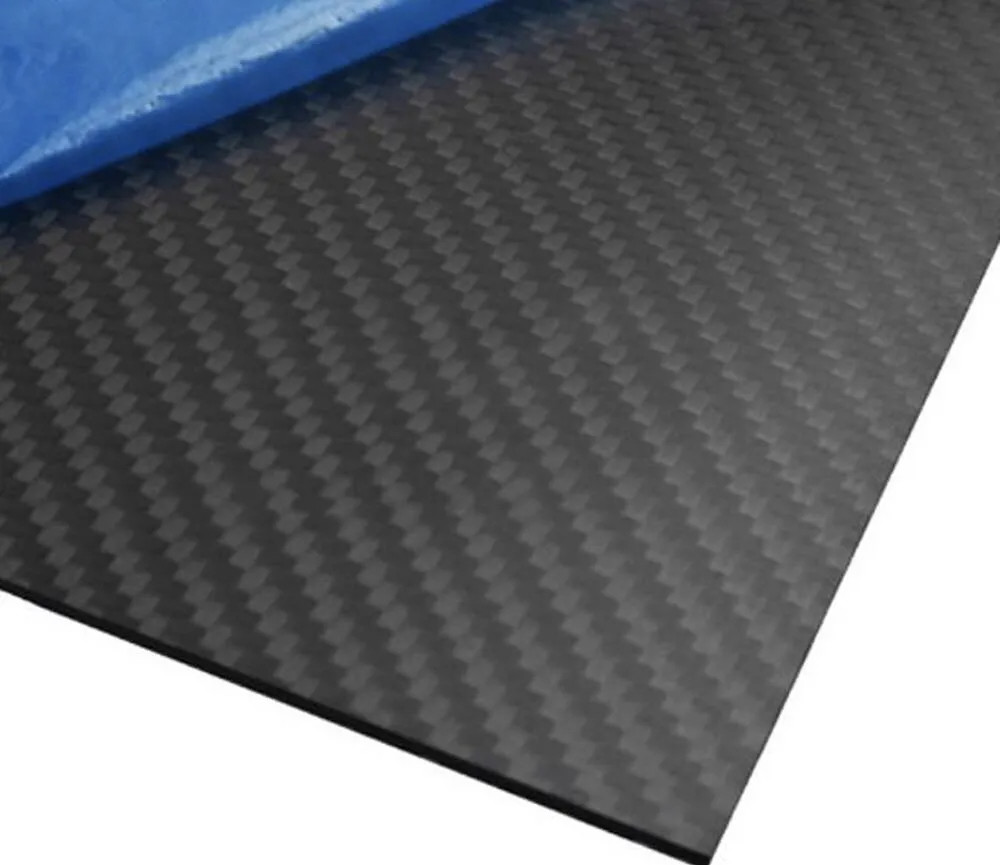

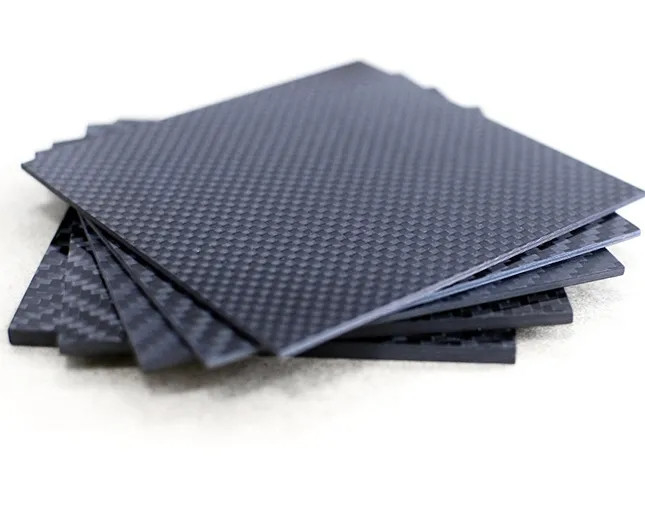

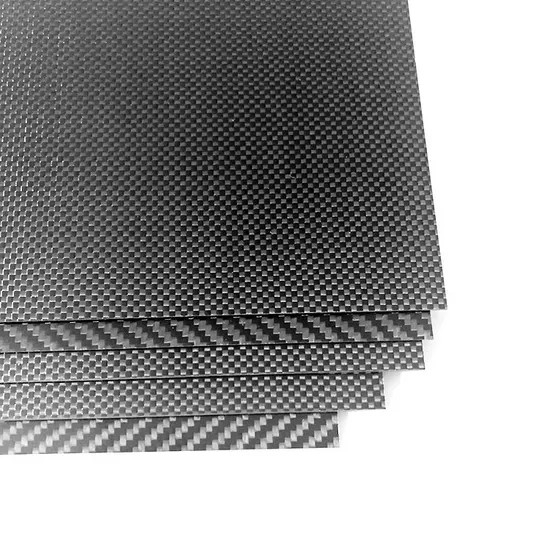

High Fatigue Resistance 1-4mm Thickness Twill Weave Carbon Fiber Sheets and Plates 0High Fatigue Resistance 1-4mm Thickness Twill Weave Carbon Fiber Sheets and Plates 1High Fatigue Resistance 1-4mm Thickness Twill Weave Carbon Fiber Sheets and Plates 2High Fatigue Resistance 1-4mm Thickness Twill Weave Carbon Fiber Sheets and Plates 3High Fatigue Resistance 1-4mm Thickness Twill Weave Carbon Fiber Sheets and Plates 4
