Strong and Lightweight 100% 3K Roll Wrapped Carbon Telescopic Tube
Contact Person : Terry.Chang, Grace Gu
Phone Number : +86-13681832139
WhatsApp : +8619537611058
Minimum Order Quantity : | 10 Sets | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 150*30*30cm/CTN, 10 Sets/CTN, Corrugated Carton for International Ocean Airlines shipping | Delivery Time : | 25 Days after Order Confirmation |
Payment Terms : | L/C, T/T, PayPal | Supply Ability : | 500 Sets/Month |
Place of Origin: | China | Brand Name: | 10M |
---|---|---|---|
Certification: | SGS | Model Number: | 10M45FT |
Detail Information |
|||
Tube Material: | Telescopic Cleaning Tubes | Clamp Material: | CFR Nylon, Aluminum |
---|---|---|---|
Usage: | Windows Cleaning Waterfed Pole | Surface: | 3K Plain 3K Twill Surface |
Section: | 2/3/4/5/6/7 Sections/custom | Lock Type: | Flip Cam Locking Device |
Abrasion: | High Abrasion Resistance | Corrosion: | Corrosion Resistance |
Highlight: | 3K Carbon Fiber Telescopic Cleaning Tubes,Carbon Fiber Telescopic Cleaning Tubes |
Product Description
Lightweight Design Versatility 100% 3K Carbon Fiber Telescopic Cleaning Tubes
LIJIN offers high-performance carbon fiber telescopic poles, renowned for their exceptional strength-to-weight ratio and versatility. These innovative poles are significantly lighter than their steel counterparts while boasting superior strength. Our carbon fiber sheets are meticulously crafted using multiple layers of carbon fibers embedded in an epoxy resin matrix. This meticulous process results in a robust material ideal for demanding applications where both strength and minimal weight are crucial.
Where it's Been Used
LIJIN’s carbon fiber telescopic tubes find widespread use across various industries due to their unmatched strength, lightweight design, and versatility:
Key Features of Telescopic Tubes
Our carbon fiber telescopic poles the perfect choice for professionals seeking superior performance and ease of use.
LIJIN offers a range of carbon fiber telescopic tubes to suit diverse applications:

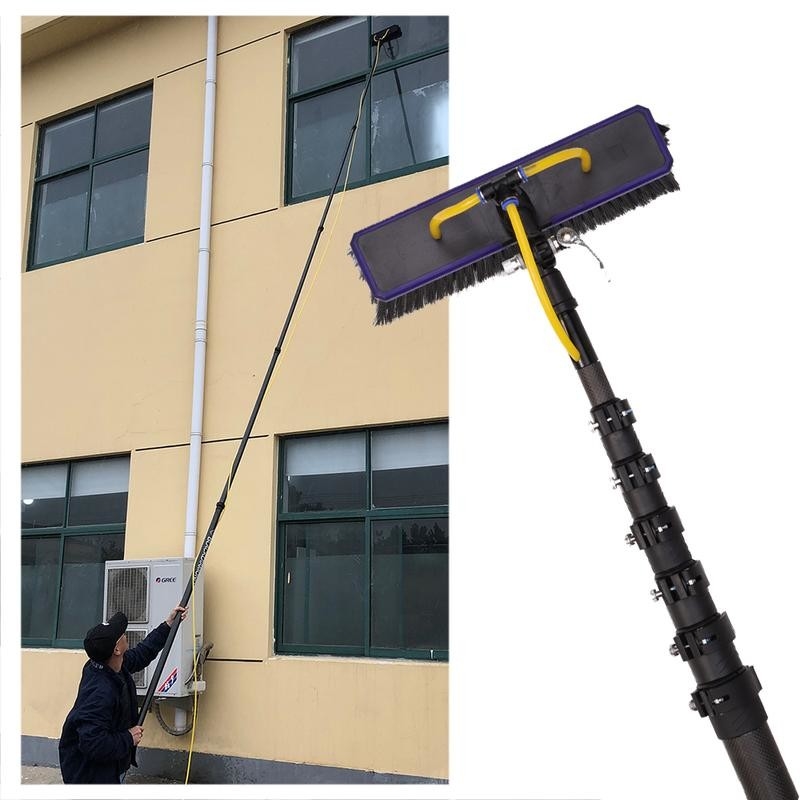

Length Range: We manufacture poles from 20 feet to 60 feet, ideal for reaching high windows, cleaning solar panels, and accessing tall trees for agriculture (like Areca & coconut harvesting).
Detailed Size:
Warning section | 100mm Lgth |
Top section(smallest) | 22OD18ID |
Section2 | 26OD2260ID |
Section3 | 3030OD2690ID |
Section4 | 3440OD31ID |
Section5 | 3880OD3520ID |
Section6 | 4330OD3970ID |
CHARACTERISTICS:
• Extended total length: 5000mm. (Tolerance ± 10mm.)
• Total length collected: 1360mm. (Tolerance ± 10mm.)
• Outside diameter of the larger tube: 31mm. (Tolerance ± 0.2mm.)
• Wall of the tubes: 1mm. (Tolerance ± 0.2mm.)
• Total weight: 812gr. (Tolerance ± 50gr.)
• Fiber: carbon 3K 200 gr / m2 Fabric Twill 2x2 (Twill)
• Resin: Epoxy
• Orientation of the fibers: Bidirectional
