Customized Lightweight High Quality 3K Carbon Fiber Telescopic Pole

Minimum Order Quantity : 10 Sets Price : Negotiable
Packaging Details : 150*30*30cm/CTN, 10 Sets/CTN, Corrugated Carton for International Ocean Airlines shipping Delivery Time : 25 Days after Order Confirmation
Payment Terms : L/C, T/T, PayPal Supply Ability : 500 Sets/Month
Place of Origin: China Brand Name: 10M
Certification: SGS Model Number: 10M45FT

Detail Information

Features: Lightweight, High Strength Tube Material: Carbon Fiber Telescopic Pole
Clamp Material: CFR Nylon, Aluminum Usage: Windows Cleaning Waterfed Pole
Extended Length: 15-45ft Surface: 3K Plain 3K Twill
Surface Treatment: Glossy Or Matte Working Temperature: Max 150 Degree

Product Description

Customized Lightweight High Quality 3K Carbon Fiber Telescopic Pole

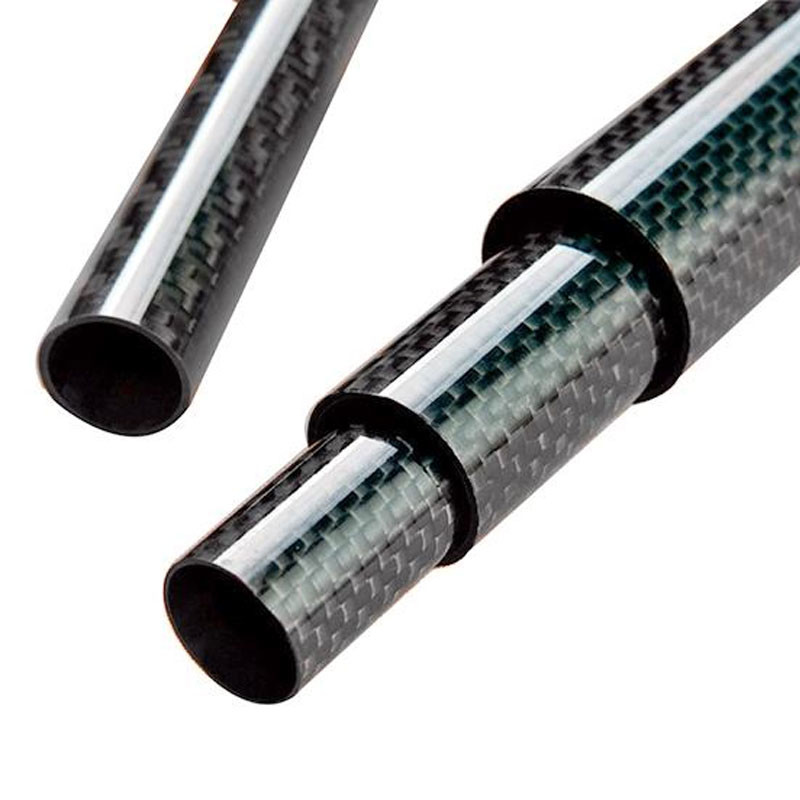

Carbon fiber telescopic tubes are the ideal choice for applications that need compact storage and long extended lengths. These poles slide easily within one another and can be locked at any length which is easy to operate and carry.



Our normal production style is 10ft, 20ft, 30ft, 40ft, 45ft, 60ft, etc with standard UD/3k glossy or matte surface. With lightweight and high stiffness, they're widely used for water-fed poles, window cleaning systems, aerial photography, factory automation, and so on.



Our carbon fiber tubes have the advantages of high strength, long life, corrosion resistance, lightweight, low density, high specific modulus, fatigue resistance, creep resistance, high-temperature resistance, corrosion resistance, wear resistance, and so on.



Specifications

  • Pole material: 3K 100% carbon fiber tube
  • Pole Wall thickness: 0.85/1mm
  • Tube OD.: 25/29/32/36/40/44/48/52mm
  • Section: 2/3/4/5/6/7 Sections/custom
  • Color: Black+red/custom
  • Thread: American Thread/Germany-style thread/Custom
  • Other Size: 12/18/20/24ft/30/35/36/42/45FT/custom
  • Function: Water-fed pole system/garden tree branch cutting/long-reach tools
  • Lock Type: Flip Cam Locking device
  • Feature: The maximum length reaches 20 meters (65)
  • Handle: Comfortable spongy/Rubber handle/custom

Carbon fiber tube is a type of composite material made from carbon fibers and resin. It is a lightweight and strong material that is commonly used in aerospace, automotive, and sporting goods industries. The carbon fibers are woven together and then impregnated with resin to create a rigid and durable tube. Carbon fiber tubes are known for their high strength-to-weight ratio, corrosion resistance, and stiffness. They are often used in applications where weight reduction and high performance are critical, such as in aircraft structures, racing cars, and high-end bicycles.



Detailed Size:



Warning section 100mm Lgth
Top section(smallest) 22OD18ID
Section2 26OD2260ID
Section3 3030OD2690ID
Section4 3440OD31ID
Section5 3880OD3520ID
Section6 4330OD3970ID



CHARACTERISTICS:


• Extended total length: 5000mm. (Tolerance ± 10mm.)
• Total length collected: 1360mm. (Tolerance ± 10mm.)
• Outside diameter of the larger tube: 31mm. (Tolerance ± 0.2mm.)
• Wall of the tubes: 1mm. (Tolerance ± 0.2mm.)
• Total weight: 812gr. (Tolerance ± 50gr.)
• Fiber: carbon 3K 200 gr / m2 Fabric Twill 2x2 (Twill)
• Resin: Epoxy
• Orientation of the fibers: Bidirectional

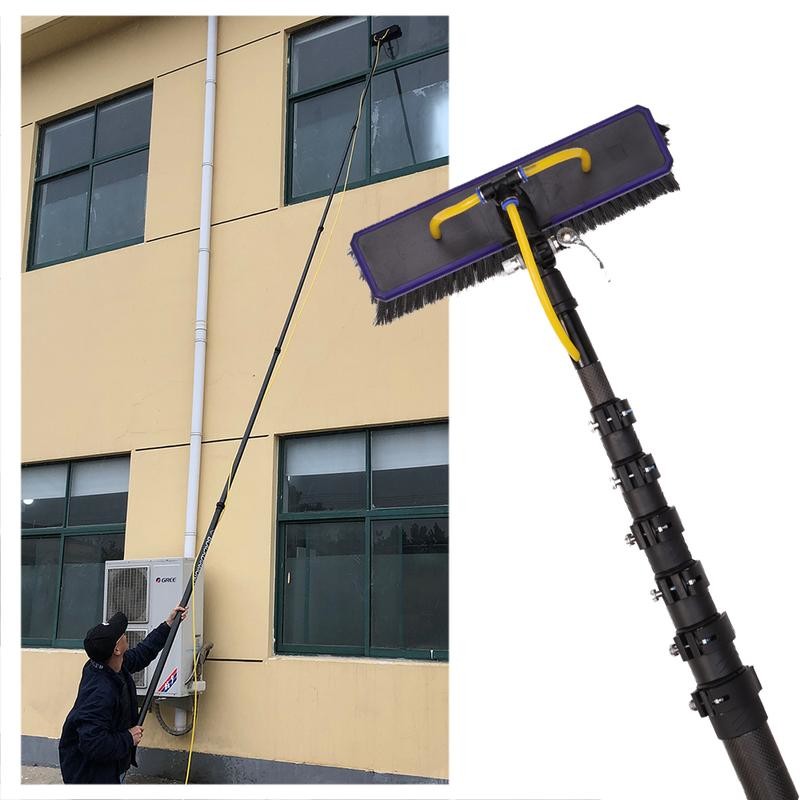

45ft reach carbon fiber telescopic pole

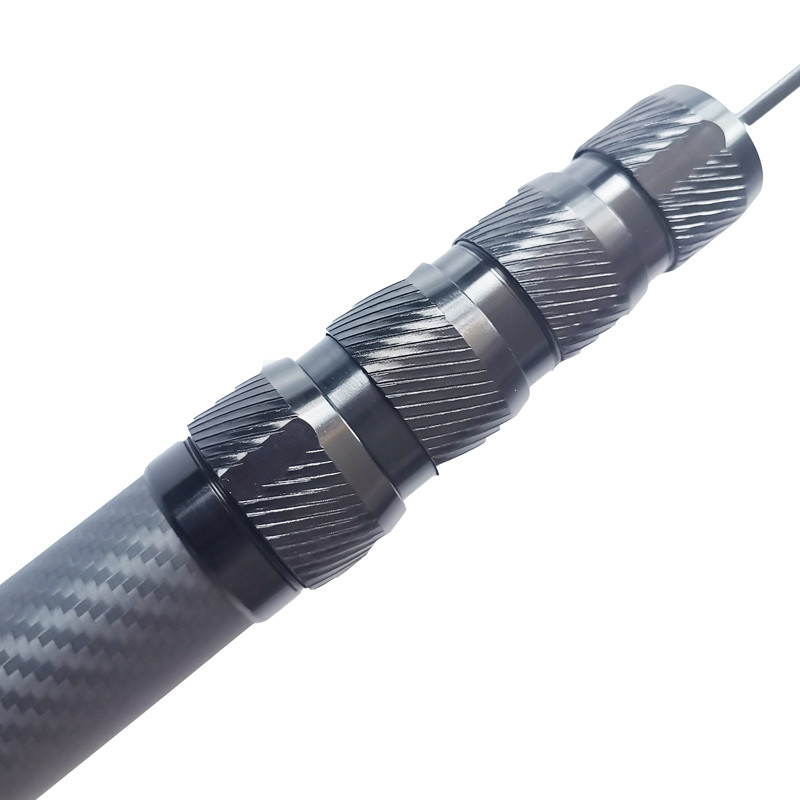

Strong Clamps

CFR Nylon Injection moulded and Aluminum 7075 metal fitting

CFR Nylon Clamp for Carbon Telescopic Pole

Aluminum Fitting for Carbon Fiber Telescopic Pole
