Customized 3K Plain Twill Telescopic Carbon Fiber Pole Tube 1000mm

Product Description

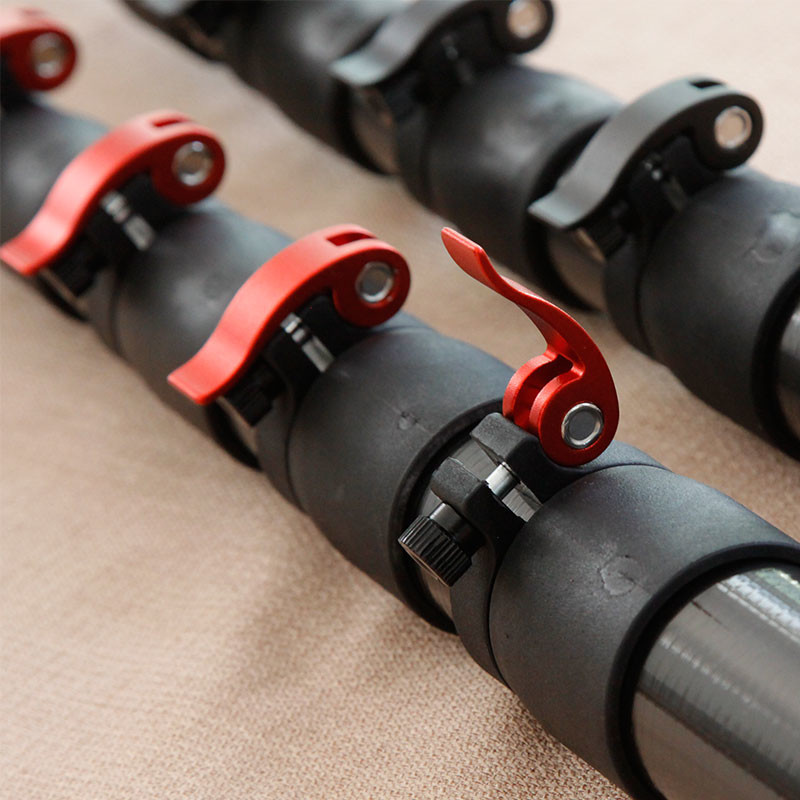

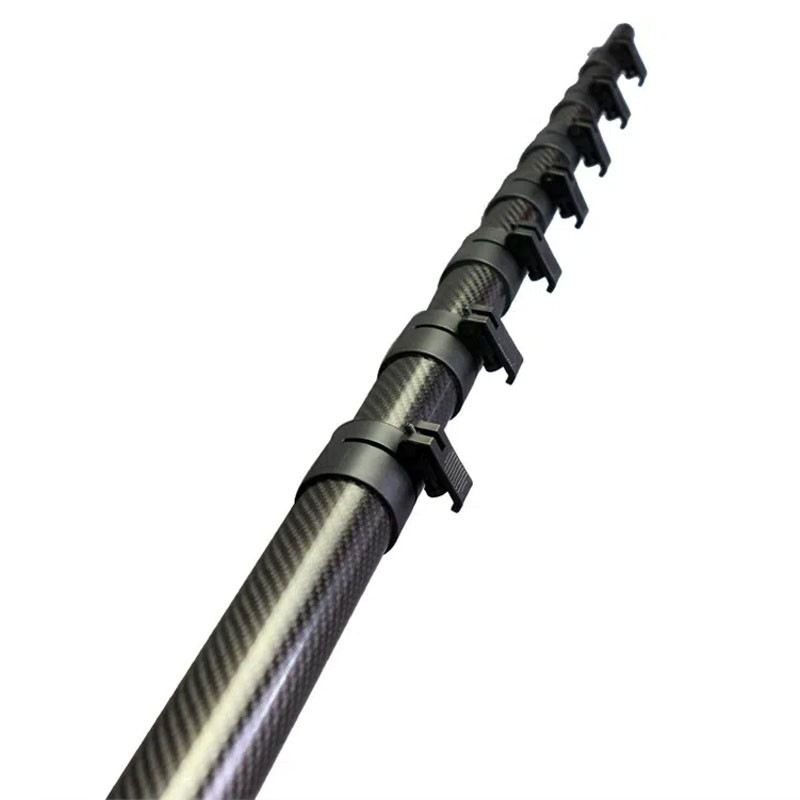

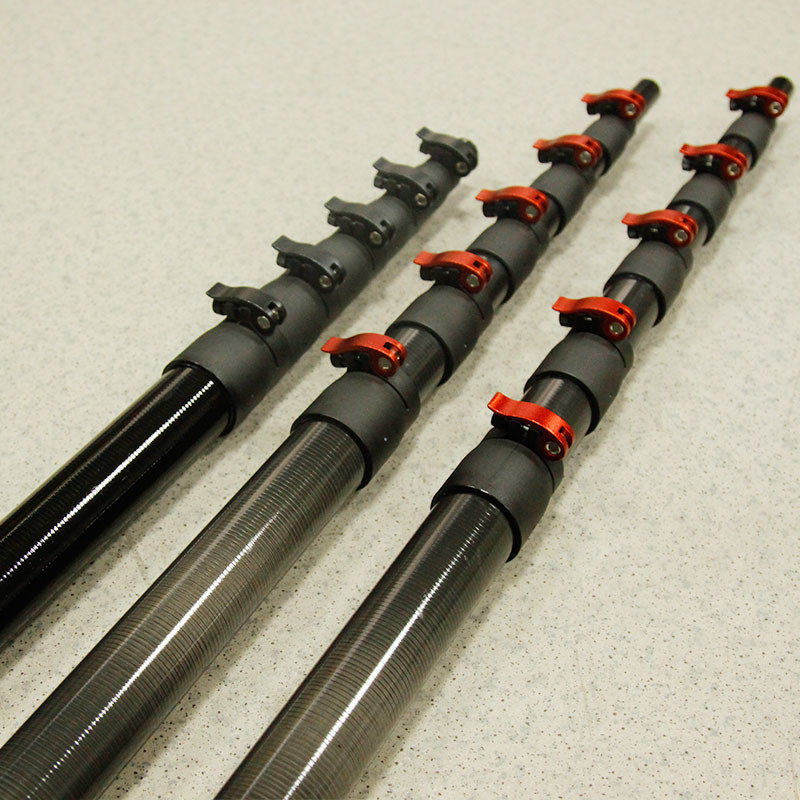

Carbon fiber tube for telescopic pole (30mm, external Ø - 27mm, inner Ø) 1000mm

Carbon fiber tube for telescopic pole, made entirely of high-quality carbon fiber. It is real carbon fiber, pressed and cured in the oven. With constant thickness, very high hardness, and very little weight.

If you need a tube with other lengths, diameters, or thicknesses, do not hesitate to contact us, we can manufacture it.

CHARACTERISTICS

• Length: 1000mm (Tolerance ± 10mm.)
• Outside diameter: 30mm. (Tolerance ± 0.2mm.)
• Internal diameter: 27mm. (Tolerance ± 0.2mm.)
• Wall: 1.5mm. (Tolerance ± 0.2mm.)
• Weight: 190gr (Tolerance ± 5gr.)

Since these tubes are made of 100% carbon fiber, and with a very constant thickness, they are perfect for precision or structural work.

NOTE:

All our tubes admit a certain tolerance in their measurements, this comes from the necessary cuts and the manufacturing process itself. They can then present in some cases irregular edges that in no case affect the quality of them, but if the size.

Although we always try to send our tubes with a size equal to or greater than the one offered, which we do in 90% of cases, remember that there is a reasonable margin for which we will not accept claims.

For this reason, and to avoid misunderstandings, if you need an extremely precise tube in the cut or size, do not hesitate to let us know at the time of placing your order so we can take it into account.

Specifications:

Appearance

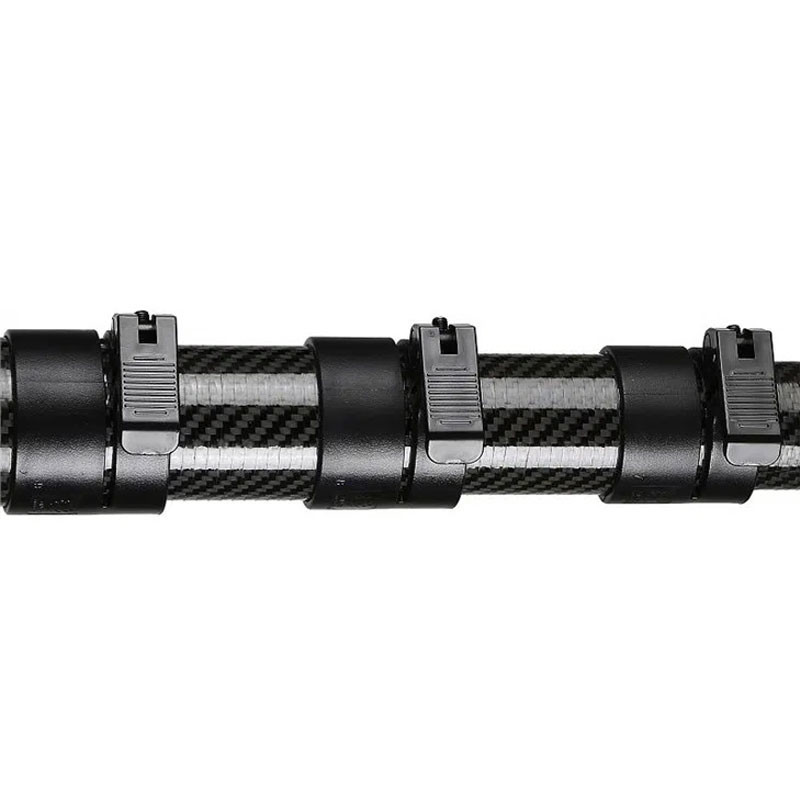

This 3K Woven Finish tube is manufactured from alternating layers of unidirectional prepreg carbon fibre for maximum strength with the final layer swapped for 2/2 twill, 3k woven carbon fibre so that the tube has the classic appearance of woven carbon fibre (the same as our carbon fibre sheets for example). This means that although the tubes are designed for demanding mechanical applications, they also look fantastic, adding a cutting-edge carbon fibre appearance to any application.

To achieve the smooth, glossy appearance the tubes are surface ground, lacquered (with high-gloss UV-resistant lacquer), and then polished. The result is a carbon fibre tube of unrivalled visual appearance making it ideally suited for use in applications where it will be seen.

Performance

Although specially laminated, ground, lacquered and polished to produce a carbon fibre tube with a stunning appearance, our 3K Woven Finish tubes are serious tubes suitable for demanding engineering applications including robotics/automation, R/C models, UAVs, recreational equipment, motorsport and marine.

Order Flow

• Tell us the size of carbon fiber products, including length, diameter, width, and thickness, etc. if you have specific requirements, Pls let me know. It is better that you have a file/drawing(.dwg /.stp/.igs format ) to describe your request.
• We will analyze your request, supply you best solution then give you the best price.
• You received the price and arranged samples for us.
• We will prepare a sample for you, Normally it will take about 3~7 working days. Then we deliver the sample to you for the test.
• You received a sample and test okay. Then arrange formal order to us.
