Multiple Diameters High Precision Carbon Fiber Telescopic Tube 20 X 18 X 2000mm

Product Description

Multiple Diameters High Precision Carbon Fiber Telescopic Tube 20,0 x 18,0 x 2000mm

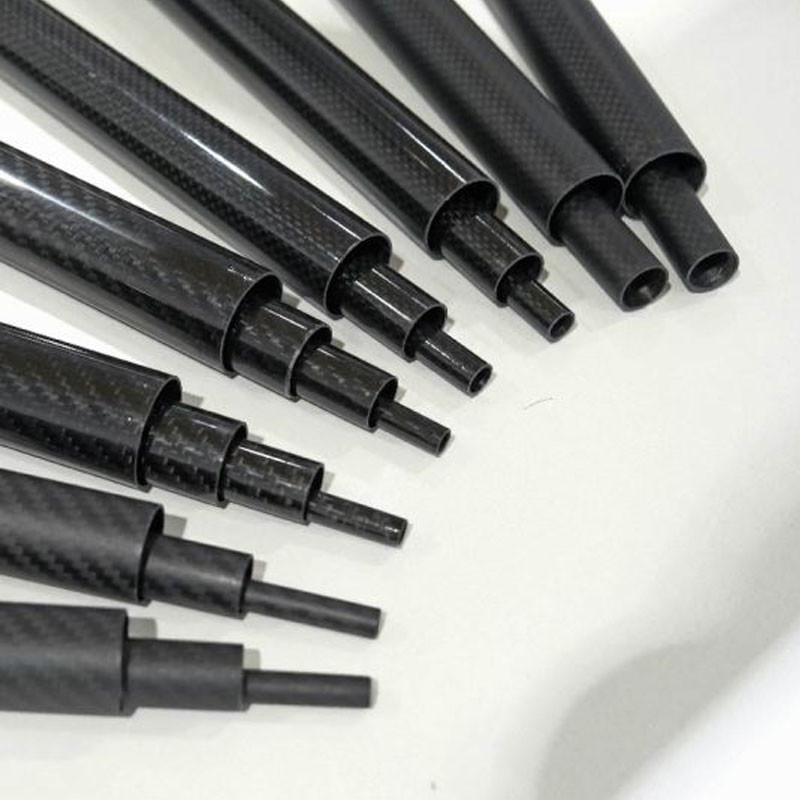

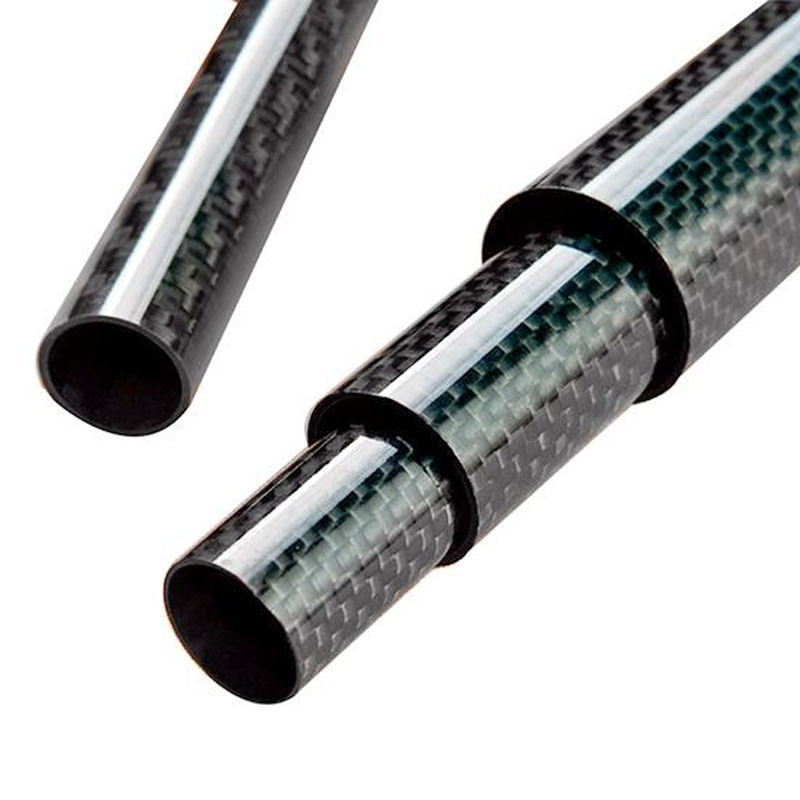

We have specially developed the Telescopic Tubes series in order to be able to offer you a perfectly graded range of tubes that fit into one another. The telescopic tubes are perfect for the realization of plug-ins or also extendable arms or extendable guides or fits. The tubes are all ground to fit each other, ensuring that these tubes can always be pushed into each other with minimal play. Due to their special fiber structure, these pipes are particularly efficient in terms of flexural strength and compressive strength under transverse pressure. The specially developed biaxial fiber structure is used for this purpose in order to offer maximum rigidity.

The tubes have a particularly attractive carbon design finish to meet the highest visual demands. Both the inner layers and the outer layers are made of twill carbon fabric. High-strength carbon fibers are used as core layers in the longitudinal direction in order to achieve maximum flexural strength.

The tubes of the TT = telescopic tubes series are therefore the perfect choice for applications that require perfectly matched diameters. Due to their precision cut, they are equivalent to our precision tube series, manufactured to provide you with a modular system of matching tubes.

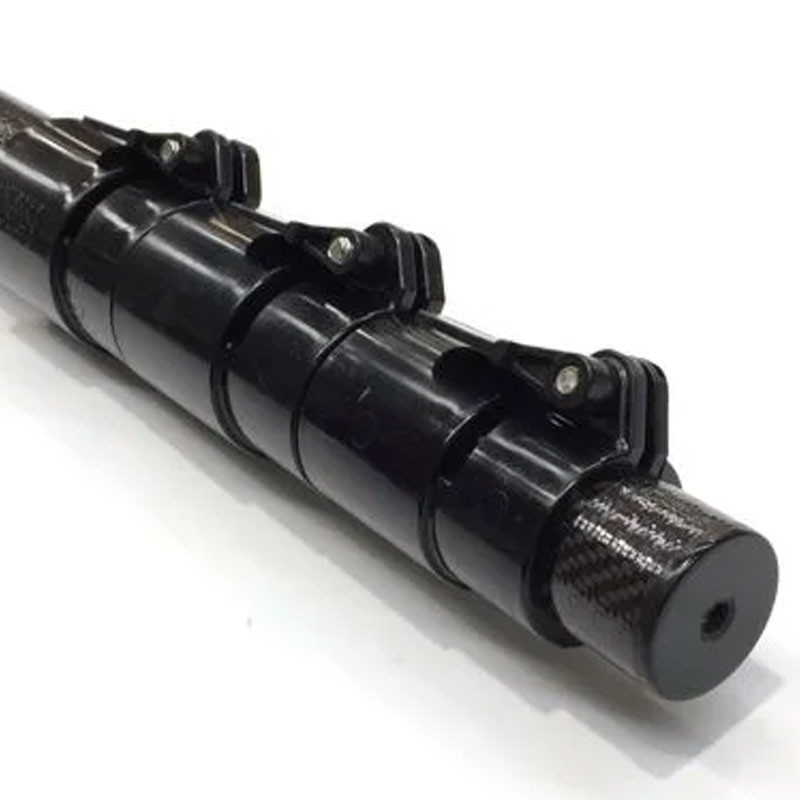

Carbon fiber telescopic tubes are the ideal choice for application that needs compact storage and long extended length. These poles slide easily within one another and can be locked at any length which is easy to operate and carry.

Our normal production style is 10ft, 20ft, 30ft, 40ft, 45ft, 60ft, etc with standard UD/3k glossy or matte surface.

With lightweight and high stiffness, they're widely used for water-fed poles, window cleaning systems, aerial photography, factory automation, and so on.

• Product: Carbon fiber telescopic tube
• Color: Black or customized
• Segments: 2-9
• Surface Finish: UD glossy/matte black or 3K weave
• Fiber Type: imported carbon fiber
• Fiber Orientation: Uni-directional
• Inner Diameter (ID) Tolerance: +/- 0.1mm
• Outer Diameter (OD) Tolerance: +/- 0.1mm
• Length Tolerance: +/- 0.2mm

Feature

1. light, high-strength, wearable
2. very low CTE (coefficient of thermal expansion)
3. heat resistance and corrosion resistance

Specifications:

Order Flow

• Tell us the size of carbon fiber products, including length, diameter, width, and thickness, etc. if you have specific requirements, Pls let me know. It is better that you have a file/drawing(.dwg /.stp/.igs format ) to describe your request.
• We will analyze your request, supply you best solution then give you the best price.
• You received the price and arranged samples for us.
• We will prepare a sample for you, Normally it will take about 3~7 working days. Then we deliver the sample to you for the test.
• You received a sample and test okay. Then arrange formal order to us.
