Plain Weave Carbon Fiber Sheets 0.5mm 1mm 1.5mm 2mm 2.5mm 3mm 4mm

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Product Name: 3K Carbon Fiber Sheet Material: Carbon Fiber Pre-Preg With Epoxy Resin
Surface: 3K, Twill Or Plain, Matt Or Gloss Surface Thickness: 0.1-60.0mm
Weight: 1.5g/cm3 Weave: 3K Plain / 3K Twill / Unidirection
Use: Blanket, Industry, UAV, Accessories, Outdoor, Car Feature: Abrasion-Resistant, Waterproof, Heat-Insulation
High Light:

4mm Plain Weave Carbon Fiber Sheets

,

3K Plain Carbon Fiber Sheeting

,

Waterproof 5mm Carbon Fiber Sheet

Product Description

0.5mm 1mm 1.5mm 2mm 2.5mm 3mm 4mm Plain Weave Carbon Fiber Sheets



Carbon fiber sheets are composite materials made from carbon fibers and a polymer matrix. Carbon fibers are thin strands of carbon, typically about 5-10 micrometers in diameter. These fibers are known for their high strength, low weight, and resistance to temperature, making them popular in various industries, including aerospace, automotive, sports equipment, and more.



Here are some key points about carbon fiber sheets:



1. Composition: Carbon fiber sheets are composed of layers of carbon fibers held together by a polymer resin. The most common polymer resins used include epoxy, vinyl ester, and sometimes thermoplastics.



2. Properties:

  • High Strength: Carbon fiber has a high tensile strength, making it stronger than many metals.

  • Low Weight: Carbon fiber is lightweight, which is advantageous for applications where weight is a critical factor.

  • Stiffness: Carbon fiber composites are known for their stiffness and can provide excellent structural integrity.

3. Manufacturing Process:

  • Layup: The process involves layering the carbon fiber sheets in a specific orientation to achieve the desired strength and stiffness.
  • Curing: The layered sheets are impregnated with resin and then cured (hardened) to create a rigid structure.

4. Applications:

  • Aerospace: Carbon fiber sheets are used in aircraft components to reduce weight and improve fuel efficiency.
  • Automotive: They are employed in the automotive industry for lightweight body panels, interior components, and structural elements.
  • Sports and Recreation: Carbon fiber sheets are widely used in the manufacturing of high-performance sports equipment such as bicycles, tennis rackets, and racing boats.
  • Industrial Applications: Carbon fiber sheets find applications in various industrial sectors, including robotics, marine, and renewable energy.

5. Cost: Carbon fiber sheets can be relatively expensive compared to traditional materials like steel or aluminum. However, advancements in manufacturing processes and increased demand have led to some cost reductions over time.



6. Customization: Carbon fiber sheets can be tailored to meet specific design requirements, allowing for a high degree of customization in terms of thickness, fiber orientation, and resin type.



Overall, carbon fiber sheets offer a compelling combination of strength, low weight, and versatility, making them a popular choice in industries where these properties are crucial.



Single-Sided Carbon Fiber Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



FAQ:



1. What kind of finish is available for carbon fiber sheets? Are carbon fiber sheets with a matt finish available?



At this moment only carbon fiber sheets with a gloss finish are available. We can supply a matt finish for larger wholesale orders.



2. Do you supply carbon fiber sheets of thickness customized to individual needs? And what accuracy can your company guarantee?



Our standard carbon fiber sheets are manufactured with accuracy up to ~ + 0.2mm, which means that a sheet 1.5mm thick may have a thickness within the range of 1.5-1.7mm. Upon request, we provide cutting of carbon fiber sheets to the required thickness with an accuracy of 0.05mm.



3. Do you supply unidirectional carbon fiber sheets or biaxial and triaxial carbon fiber sheets?



We supply carbon fiber sheets with 2/2 (twill) or 1/1 (plain) weave but upon request, we also supply unidirectional carbon fiber (UD) or biaxial and triaxial carbon fiber sheets.



4. Are carbon fiber sheets of the quasi-isotropic type available?



We supply carbon fiber sheets with layers oriented at 0/90 degrees, but upon request, we also supply carbon fiber sheets with layers oriented at 0/90/-45/+45 degrees namely quasi-isotropic carbon fiber sheets.



5. What is the thermal resistance of carbon fiber sheets?



Carbon fiber sheets offer thermal resistance of up to 70oC. Upon request, we also supply carbon fiber sheets with thermal resistance up to 150oC.



6. How can I cut carbon fiber sheets in my workshop?



The carbon fiber plates we make are easy to process. They do not flatten when milling on a CNC machine, and the edges are sharp and nice. The carbon plates we make can also be easily machined with household tools such as an angle grinder, drill, file, sandpaper, etc.



7. Can carbon fiber sheets be painted?



Actually, any further treatment depends on the intended use. All supplied carbon fiber sheets (and ones made from epoxy resin) offer resistance to UV. However in the case of long duration or repeated exposure to sunshine (UV radiation) it is recommended to apply a layer of clear top coat (e.g. Polyurethane and Acrylic based) on the outer side of the carbon fiber sheet to ensure total protection against UV radiation.

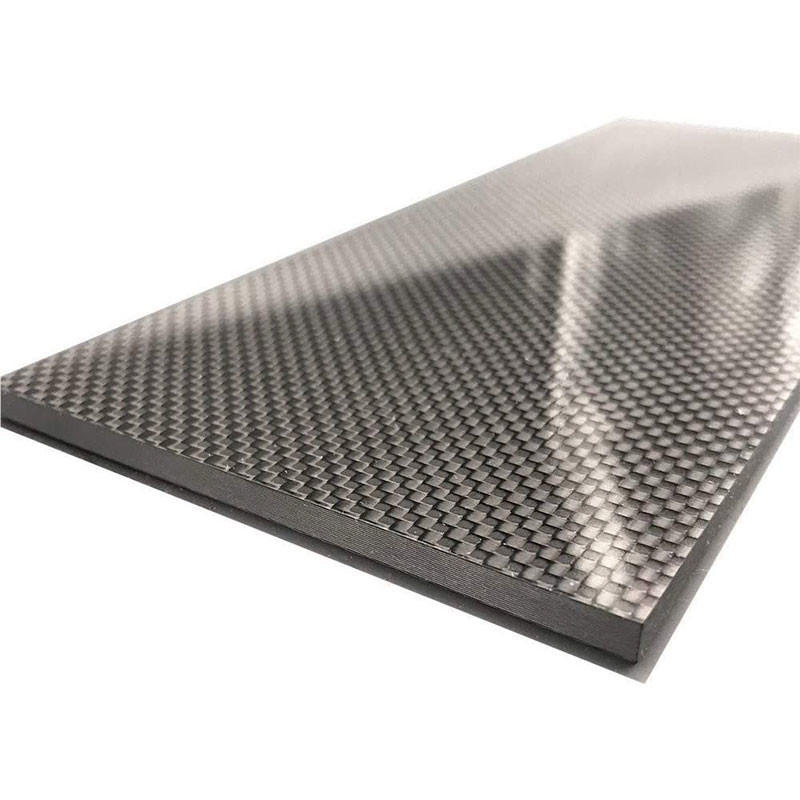

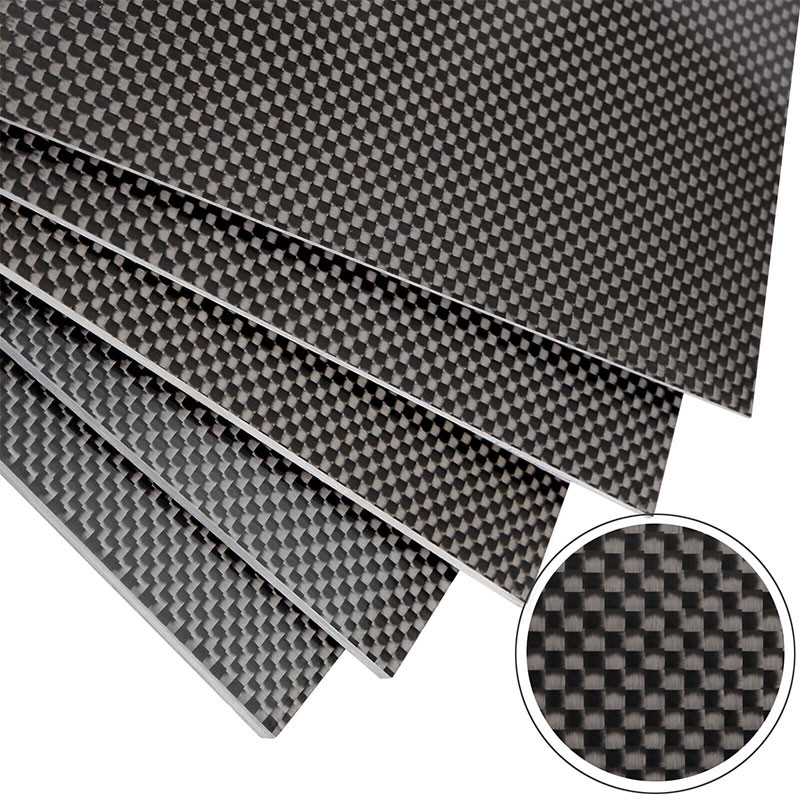

Plain Weave Carbon Fiber Sheets 0.5mm 1mm 1.5mm 2mm 2.5mm 3mm 4mm 0Plain Weave Carbon Fiber Sheets 0.5mm 1mm 1.5mm 2mm 2.5mm 3mm 4mm 1Plain Weave Carbon Fiber Sheets 0.5mm 1mm 1.5mm 2mm 2.5mm 3mm 4mm 2

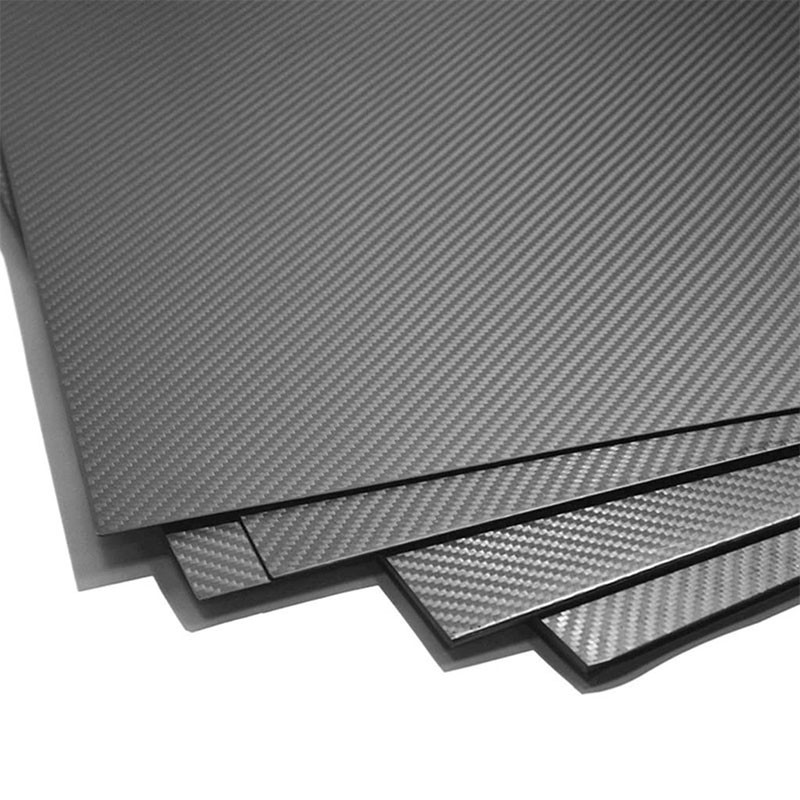

Plain Weave Carbon Fiber Sheets 0.5mm 1mm 1.5mm 2mm 2.5mm 3mm 4mm 3

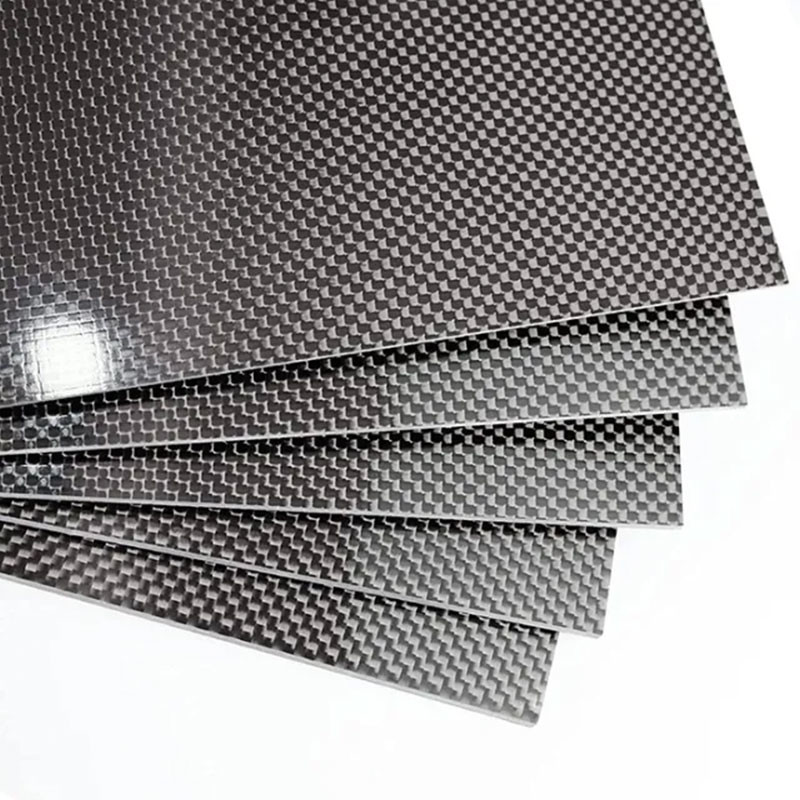

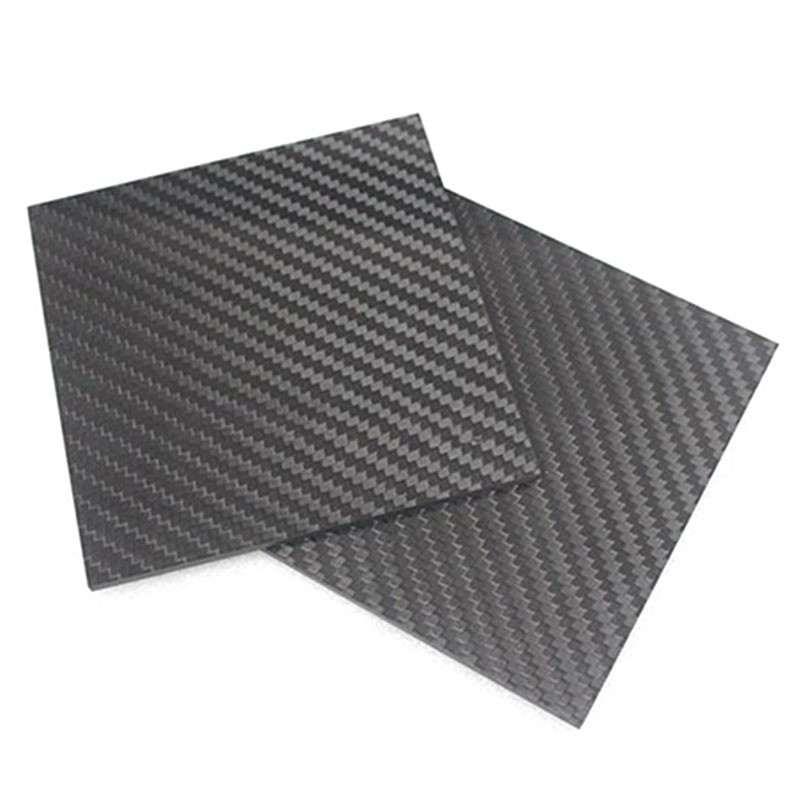

Plain Weave Carbon Fiber Sheets 0.5mm 1mm 1.5mm 2mm 2.5mm 3mm 4mm 4Plain Weave Carbon Fiber Sheets 0.5mm 1mm 1.5mm 2mm 2.5mm 3mm 4mm 5
