3K Twill Carbon Fiber Round Tube Large Carbon Fibre Roll Wrapped Tubing

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: Large Carbon Fibre Tube Shape: Round/Oval Or Customized
Pattern: 3K Twill, Accept 1K, 2K, 4K, 5K, Etc Material Finish: 3K Glossy Twill Surface
Weight: 60g/m Density: 1.5g/cm3
C Content (%): 100% Color: Regular Color
High Light:

Carbon Fibre Roll Wrapped Tubing Large

,

3K Twill Carbon Fiber Round Pipe

,

4mm Carbon Fiber Tubing

Product Description

3K Twill Carbon Fiber Round Tube Roll Wrapped Tubing Large Carbon Fibre Tube



Our twill round carbon fiber tube is roll-wrapped from unidirectional carbon fiber with a 3k twill carbon fiber fabric outer layer. They not only offer a beautiful surface but also excellent torsional characteristics, as well as crush strength, and are ideal for high torque applications. This round tubing is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other application where low weight and high stiffness are essential and appearance is also important.



Our roll-wrapped carbon tubes come in various diameters, lengths, and thicknesses, If you want to buy a large-diameter carbon fiber tube or any other specific carbon fibre tube, do not hesitate to contact us, we can custom carbon fiber tube for you.



Name Carbon Fiber Round Tube/Square Carbon Fiber Tube
Feature

1. Made of high modulus 100% carbon fiber imported from Japan with epoxy resin

2. Great replacement for the low-grade aluminum wing tubes

3. Weights only 1/5 of steel and 5 times stronger than steel
4. Low Coefficiency Of Thermal Expansion, High-Temperature Resistance
5. Good Tenacity, Good Toughness, Low Coefficiency Of Thermal Expansion

Specification Pattern Twill, Plain
Surface Glossy, Matte
Line 3K Or UD
Color Black, Gold, Silver, Red, Bue, Gree(Or With Color Silk)
Material Japan Toray Carbon Fiber Fabric+Resin
Carbon Content 68%
Size Type ID Wall thickness Length
Round Tube 6-60 mm 0.5,0.75,1/1.5,2,3,4 mm 1000,1200,1500 mm
Square Tube 8-38 mm 2,3 mm 500,600,780 mm
Application

1. Aerospace, Helicopters Model Drone, UAV, FPV, RC Model Parts
2. Manufacture Fixtures And Tooling, Industrial Automation
3. Sports Equipment, Musical Instruments, Medical Device
4. Building Construction Repair And Strengthening
5. Car Interior Decoration Parts, Art Products

6. Others

Packing

3 layers of protective packaging: plastic film, bubble wrap, carton

(Normal size: 0.1 * 0.1 * 1 meter(width*height*length)



What carbon fiber tube you can buy from us?



LIJIN manufacturing and wholesale multiple finishes with standard modulus carbon fiber tubes offer excellent strength and stiffness, it is 1.5X stiffer than aluminum and is the most economical grade composite tube. Finishes available be twill gloss and twill matte.



How to make carbon fiber tubing?



Our carbon fiber round tube is rolled unidirectional carbon fiber fabric into a mandrel, and roll wrapped a 3k finish fabric exterior. Unidirectional carbon fiber is the structural backbone of all our tubes, the 3k fabric weave that gives carbon fiber tubes their traditional ”carbon fiber look” is only the outside layer and helps with durability. Usually, any wall thickness can be made by changing the number of layers or combining different prepreg thicknesses (usually 0.15mm- 0.25mm thick per layer).



Our round tubes typically use layups designed for optimal performance in a wide range of conditions. We use 100% pure carbon fiber materials making carbon fiber tubing in a wide variety of diameters and lengths. Common diameter includes 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm carbon fiber tube, ... 40mm carbon fiber tube, our round tube standard length is 1000mm, If you need a carbon fibre tube with other lengths or diameters, or need colored carbon fiber tube, do not hesitate to contact us, we can cut and custom carbon fiber tubes to your specified.

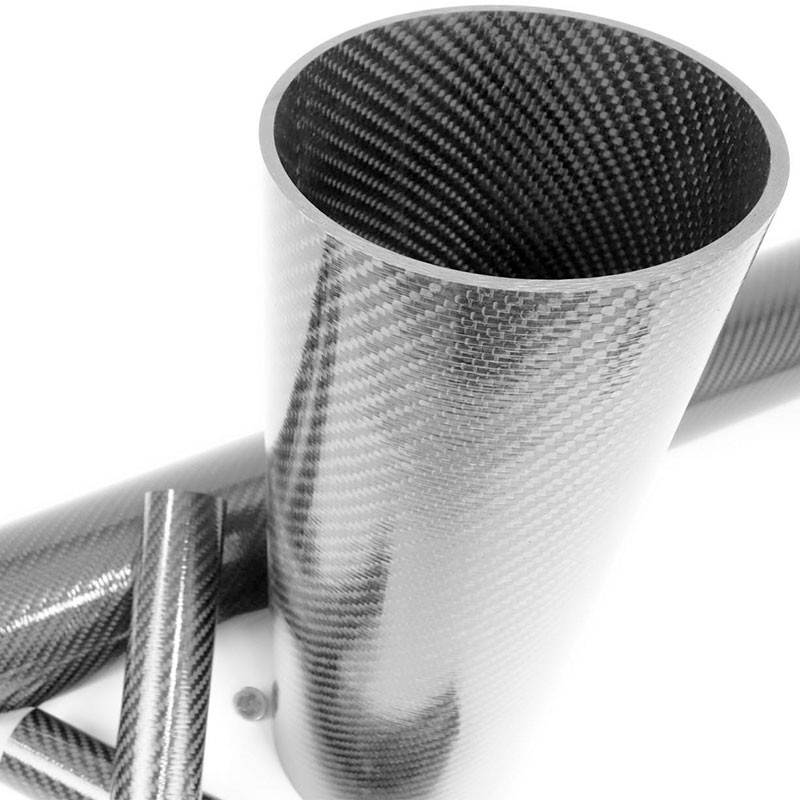

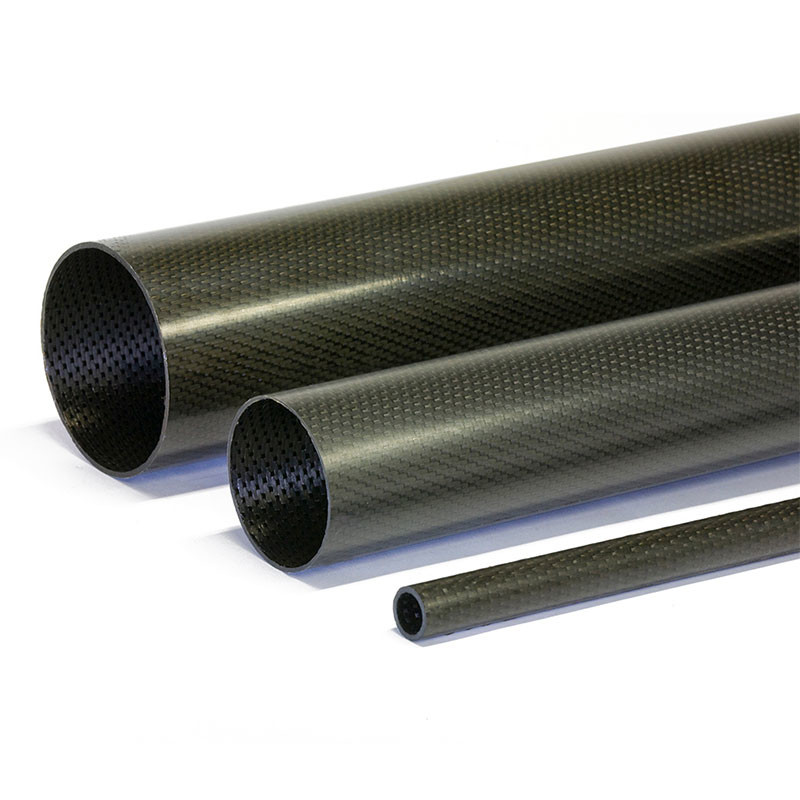

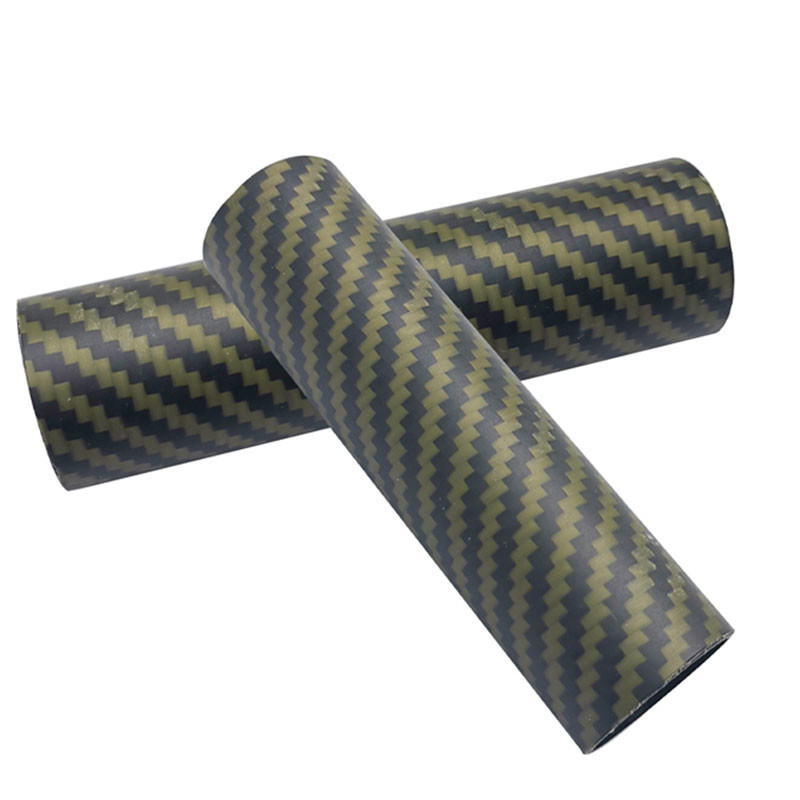

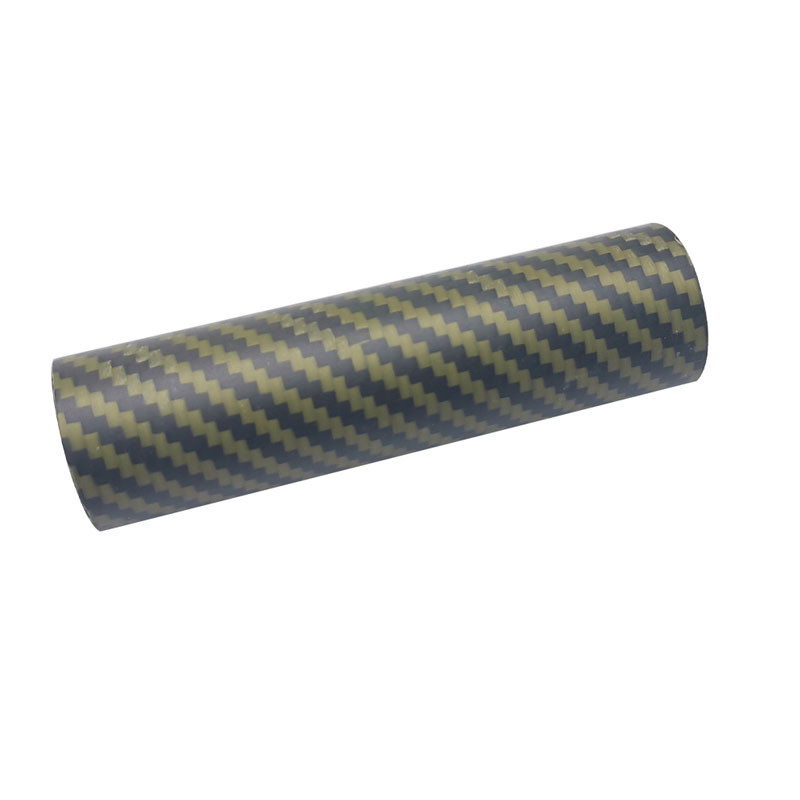

3K Twill Carbon Fiber Round Tube Large Carbon Fibre Roll Wrapped Tubing 03K Twill Carbon Fiber Round Tube Large Carbon Fibre Roll Wrapped Tubing 13K Twill Carbon Fiber Round Tube Large Carbon Fibre Roll Wrapped Tubing 23K Twill Carbon Fiber Round Tube Large Carbon Fibre Roll Wrapped Tubing 3
