Carbon Fiber Telescopic Tube Clamp Telescoping Carbon Fiber Tubes With Lock

Minimum Order Quantity : 10 Sets Price : Negotiable
Packaging Details : 150*30*30cm/CTN, 10 Sets/CTN, Corrugated Carton for International Ocean Airlines shipping Delivery Time : 25 Days after Order Confirmation
Payment Terms : L/C, T/T, PayPal Supply Ability : 500 Sets/Month
Place of Origin: China Brand Name: 10M
Certification: SGS Model Number: 10M45FT

Detail Information

Tube Material: Telescoping Carbon Fiber Tubes With Lock Clamp Material: CFR Nylon, Aluminum

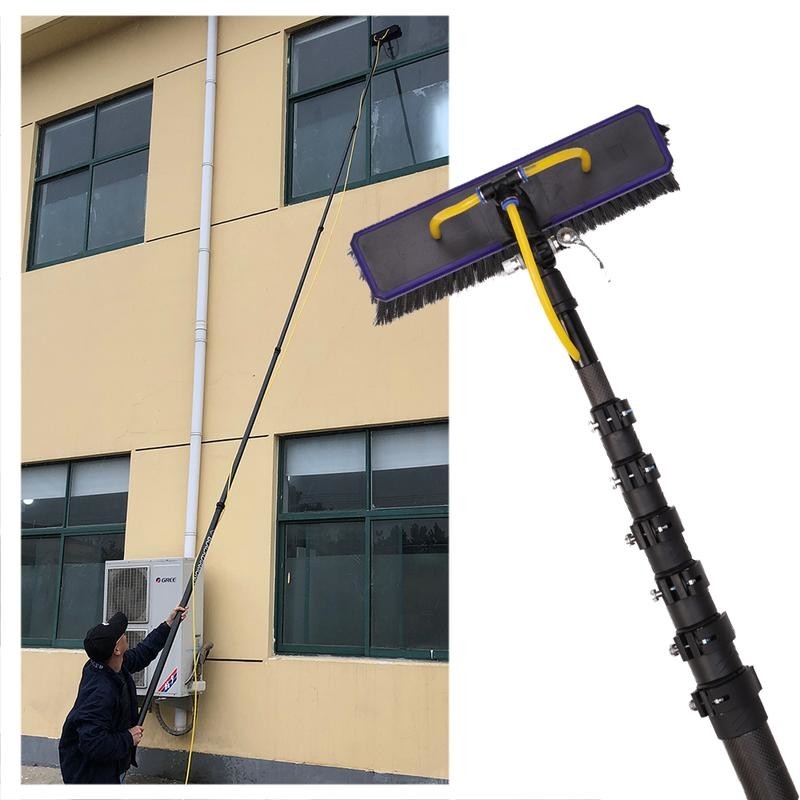

Usage: Windows Cleaning Waterfed Pole Color: Black Or Custom
Technology: Rolled-Wrapping Surface: 3K Plain 3K Twill Surface
Section: 2/3/4/5/6/7 Sections/custom Lock Type: Flip Cam Locking Device
High Light:

Telescoping Carbon Fiber Tubes With Lock

,

CFR Nylon Clamp Carbon Fiber Tube

,

Telescopic Window Cleaning Water Fed Pole

Product Description

High Quality Carbon Fiber Telescopic Tube Clamp Telescoping Carbon Fiber Tubes with Lock

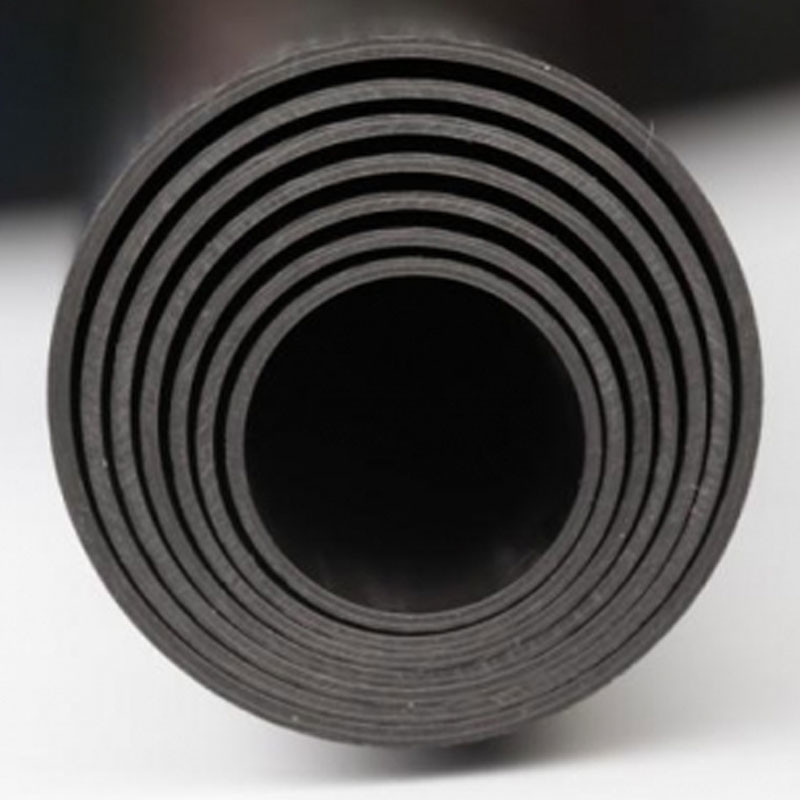

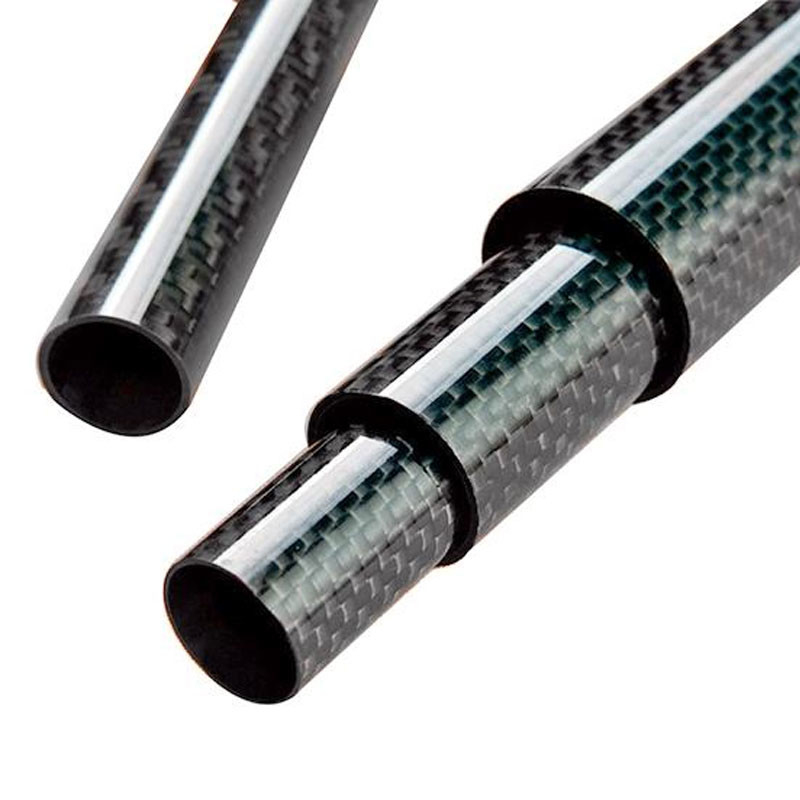

Carbon Fiber Telescopic Tubes



Due to their unique properties, carbon fiber rectangular tubes are used in numerous applications over traditional materials such as aluminum, steel, and titanium.



* High strength and stiffness with low weight
* Excellent fatigue resistance
* Dimensional stability: Low to Zero CTE (Coefficient of Thermal Expansion)



Our telescoping carbon fiber tubing is fabricated with unidirectional (UD) carbon fiber prepreg. Unlike metal tubing, carbon fiber tubes are designed with layers of fibers oriented at different angles to provide properties designed for a specific application. A variety of types or grades of carbon fiber tubing are available, as well as various exterior materials, such as UD, 3K twill, 3K Plain, glossy, or matt finish for optional.



When a job calls for custom-made telescopic carbon fiber tubes, turn to LIJIN. We have the capacity to create carbon fiber and composite materials in any shape or size, and we work closely with our clients to meet their exact specifications.

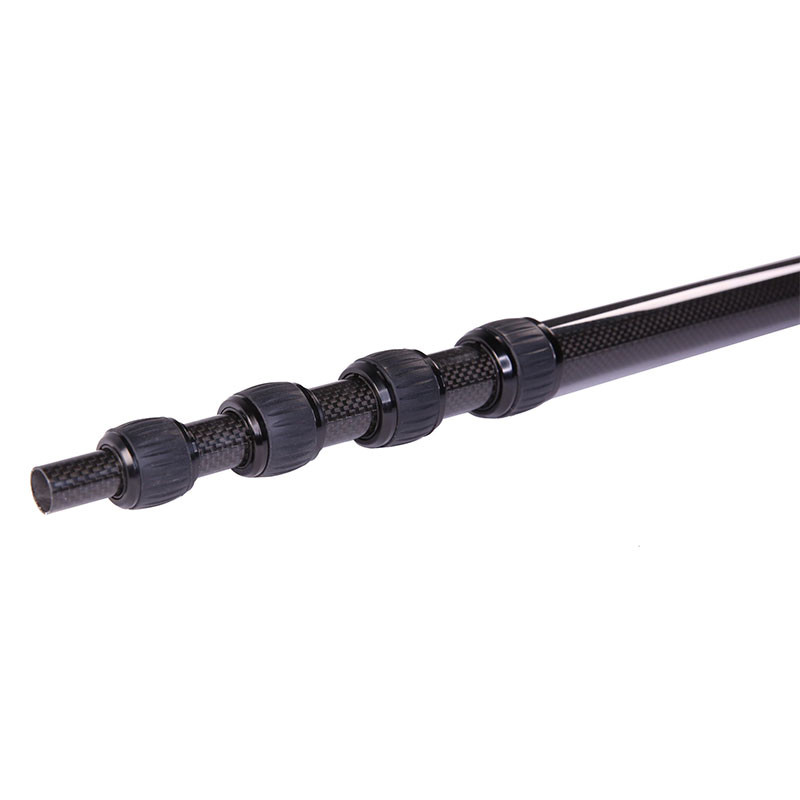

Heavy duty carbon fibre telescopic pole tube clamp for telescopic pole

  • Pole Material: Carbon fiber
  • Locking: Ergonomic design lever clamp
  • Thickness: 1mm/1.5mm/2mm(customizable)
  • Sections: 2-11sections (customizable)
  • Thread: Euro threads/American/Germany style (customizable)
  • Color: Black or customizable
  • Type: telescopic extension pole

Detailed Size:



Warning section 100mm Lgth
Top section(smallest) 22OD18ID
Section2 26OD2260ID
Section3 3030OD2690ID
Section4 3440OD31ID
Section5 3880OD3520ID
Section6 4330OD3970ID



CHARACTERISTICS:
• Extended total length: 5000mm. (Tolerance ± 10mm.)
• Total length collected: 1360mm. (Tolerance ± 10mm.)
• Outside diameter of the larger tube: 31mm. (Tolerance ± 0.2mm.)
• Wall of the tubes: 1mm. (Tolerance ± 0.2mm.)
• Total weight: 812gr. (Tolerance ± 50gr.)
• Fiber: carbon 3K 200 gr / m2 Fabric Twill 2x2 (Twill)
• Resin: Epoxy
• Orientation of the fibers: Bidirectional



Carbon Fiber Telescopic Tube Clamp Telescoping Carbon Fiber Tubes With Lock 0Carbon Fiber Telescopic Tube Clamp Telescoping Carbon Fiber Tubes With Lock 1Carbon Fiber Telescopic Tube Clamp Telescoping Carbon Fiber Tubes With Lock 2Carbon Fiber Telescopic Tube Clamp Telescoping Carbon Fiber Tubes With Lock 3
