Customized Sports Equipment Carbon Fiber Telescopic Pole Connector 3K Trekking Shaft 15M
Contact Person : Terry.Chang, Annie.Liang
Phone Number : +86-13681832139
WhatsApp : +8619537611058
|Minimum Order Quantity :||10 Sets||Price :||Negotiable|
|Packaging Details :||150*30*30cm/CTN, 10 Sets/CTN, Corrugated Carton for International Ocean Airlines shipping||Delivery Time :||25 Days after Order Confirmation|
|Payment Terms :||L/C, T/T, PayPal||Supply Ability :||500 Sets/Month|
|Place of Origin:||China||Brand Name:||10M|
|Tube Material:||3K Carbon Fiber Extension Pole||Clamp Material:||CFR Nylon, Aluminum|
|Usage:||Windows Cleaning Waterfed Pole||Color:||Black Or Custom|
|Technology:||Rolled-Wrapping||Surface:||3K Plain 3K Twill Surface|
|Section:||2/3/4/5/6/7 Sections/custom||Lock Type:||Flip Cam Locking Device|
100% 3K Carbon Fiber Extension Pole,
Window Cleaning Carbon Fiber Extension Pole,
3k Plain Carbon Fiber Telescopic Pole

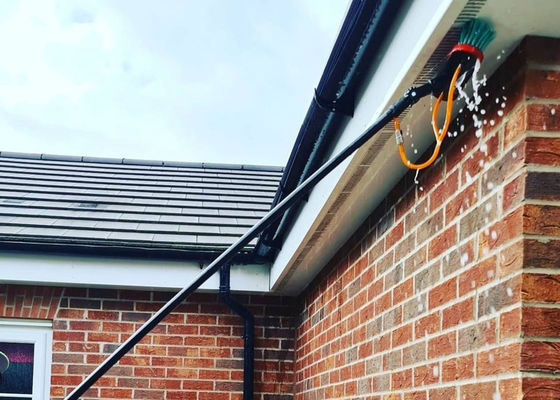

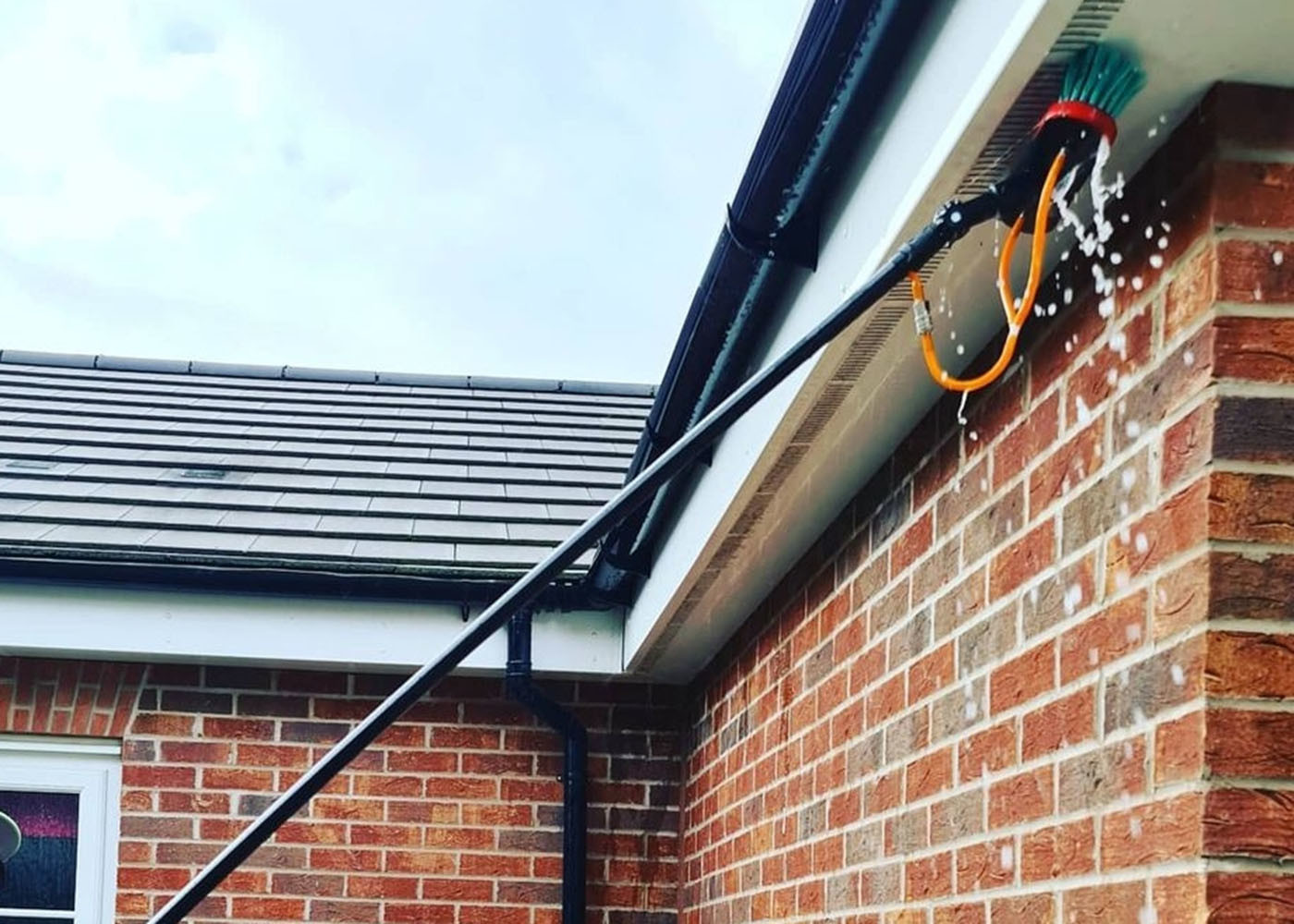

Traditional 100% 3K Carbon Fiber Extension Pole for Window Cleaning
Carbonator, a high modules carbon pole with perfect torsion and bending resistance. LIJIN looked at your life from every angle and is convinced that the best extension pole is both short and long. Our new Carbon extension pole is designed to take on a huge range of window cleaning tasks.
Light and easy to handle, making it perfect to reach the tightest spaces, created to work in the toughest areas with highest accuracy. 5 sections for perfect height adjustment control and precise cleaning.

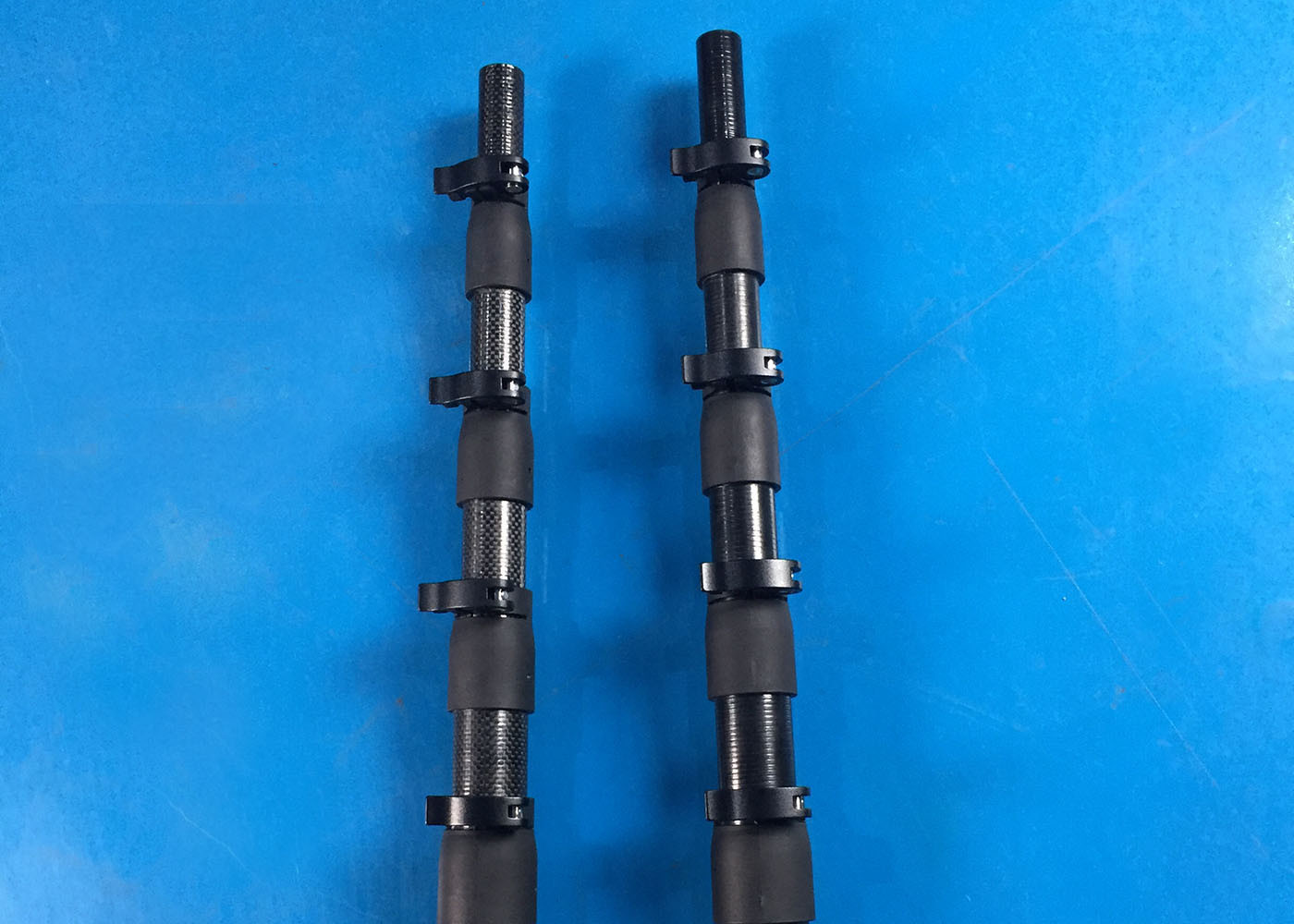

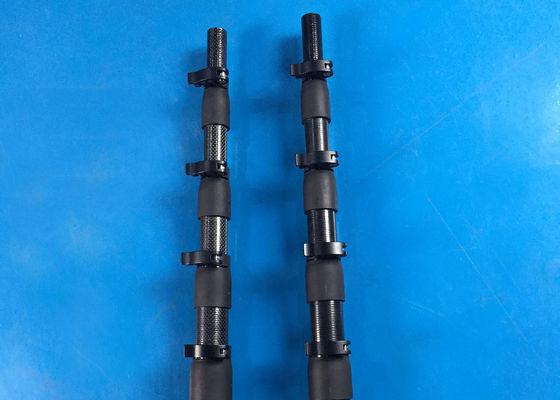

The Carbon Fiber Telescopic Poles come in a variety of sizes to help accommodate with many different tasks.
Key Features of the Telescopic Poles include:
New to LIJIN Composites’ selection of high-performance carbon fibre tubes is our range of 3K Woven Finish tubes which have a stunning high-gloss woven carbon fibre finish to complement their incredible strength.
With the classic appearance of 2/2 twill carbon fibre coupled with 100% roll-wrapped prepreg carbon fibre construction, these remarkable tubes look as good as they perform.
Although specially laminated, ground, lacquered and polished to produce a carbon fibre tube with a stunning appearance, our 3K Woven Finish tubes are serious tubes suitable for demanding engineering applications including robotics/automation, R/C models, UAVs, recreational equipment, motorsport and marine.
|Warning section||100mm Lgth|
• Extended total length: 5000mm. (Tolerance ± 10mm.)
• Total length collected: 1360mm. (Tolerance ± 10mm.)
• Outside diameter of the larger tube: 31mm. (Tolerance ± 0.2mm.)
• Wall of the tubes: 1mm. (Tolerance ± 0.2mm.)
• Total weight: 812gr. (Tolerance ± 50gr.)
• Fiber: carbon 3K 200 gr / m2 Fabric Twill 2x2 (Twill)
• Resin: Epoxy
• Orientation of the fibers: Bidirectional
Composite manufacturing materials and methods are developing fast. LIJIN range of poles are made from unidirectional carbon fibre, like a tree branch with fibres running continuously from one end to the other, providing maximum strength to weight ratio, and supreme rigidity and strength. The poles are pre-impregnated with resin, wound 7 - 10 times round a mandrel. Resin is set which bonds the carbon filaments together. The carbon fibre has the precise amount of resin applied for maximum strength and minimal weight. This method is perfectly suited for the multi-directional dynamic loads applied as a WFP.
Earlier tube manufacturing methods were by extrusion with resins and fibre reenforcement .This method is generally best suited for a rigid structure in static applications where weight is not a critical factor and loads are defined in tension and compression only. High quality machined super fine carbon fibre finish allows close tolerances and very smooth operation.
