High Modulus Lightweight Carbon Fiber Extension Pole With Lever Clamps

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Features: LightweightHigh Strength, Product Name: Carbon Fiber Telescopic Pole
Material: 100% Carbon Fiber Fiber: Carbon 3K 200 Gr / M2 Fabric Twill 2x2 (Twill)
Resin: Epoxy Finish: Glossy, Matte, Smooth, Or With Threads (more Wear-resistant)
Applications: Cleaning Equipment, Industrial Equipment, Etc. Orientation Of The Fibers: Bidirectional
High Light:

High Modulus Carbon Fiber Extension Pole

,

Lever Clamps Carbon Fiber Extension Pole

,

Epoxy Resin Carbon Fiber Telescopic Pole

Product Description

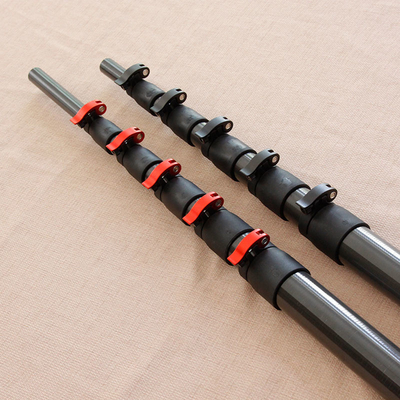

High Modulus Lightweight Carbon Fiber Extension Pole with Lever Clamps



Telescoping tube assemblies are constructed from twill/uni carbon fiber tubes. Both rigid and lightweight, the standard line of telescoping tubes provides great versatility due to the breadth of diameter and length options. The clamp-style tube connectors are appropriate for both high bending and high axial load applications and are user-adjustable to ensure the adequate clamping force is provided and repeatable without the need for further adjustments in the field.


Carbon Fiber Telescopic Pole Perfect for:
- Cleaning.
- Pruning
- Fumigation.
- Filming (image and sound).
- Advertising.
- Probes
- Etc.


Carbon fiber is an electrically conductive material, so you have to take into account the necessary preventive measures depending on its use. It is recommended to use the fiberglass grip section to serve as an insulator.



Specifications:



Material

High Modulus Carbon

100% Pure Carbon Fiber

Hybrid Carbon

Fiberglass

Shape Straight
Surface

3K Plain Weave

3K Twill Weave

Black Surface

Surface Treatment

Glossy

Semi-glossy

Matte

With threads

Extend Length 1-22 meters
Feature

High Strength

Corrosion Resistance

Light Weight

Low Density

Long Service Life

Application Window cleaning pole, photography/camera pole, flag pole, antenna mast, tent pole, fishing pole, etc.



The main purpose of carbon fiber is to compound with resin, metal, ceramics, and carbon as reinforcing materials to make advanced composite materials. Carbon fiber-reinforced epoxy resin composites have the highest strength and specific modulus among existing engineering materials. Carbon fiber's high-temperature resistance ranks first among all chemical fibers.



The density of carbon fiber is less than 1/4 of that of steel, generally, in the range of 1.5-2.0 g/cm³ and its tensile strength is 7-9 times that of steel, which can reach 1-7 GPa. Generally, the modulus of carbon fiber is more than three times that of traditional glass fiber, and the modulus of high-modulus carbon fiber can be as high as 700GPa. Moreover, carbon fiber has both the flexibility and processability of textile fiber.





What is carbon?



Carbon fiber is a fiber material used in combination with epoxy resin to make lightweight composites that are extremely strong and rigid. It is not only the specific strength and stiffness that make carbon fiber special, but also that the mechanical properties can be different in different directions due to the orientation of the laminated fibers.



The mechanical properties of metals, for example, are the same in all directions. By matching the fiber direction to the load-bearing requirements, structures can be made lighter, stronger, and more rigid. Given a good 3D design, a carbon fiber structure can be up to 40% to 70% lighter than a comparable aluminum or steel structure.


High Modulus Lightweight Carbon Fiber Extension Pole With Lever Clamps 0High Modulus Lightweight Carbon Fiber Extension Pole With Lever Clamps 1High Modulus Lightweight Carbon Fiber Extension Pole With Lever Clamps 2
