1mm Plain / Twill Industrial Carbon Fiber Sheet High Modulus

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Product Name: 1MM Carbon Fiber Sheet Surface Weave: Plain/Twill
Material: Carbon Fiber And Resin. Surface: Glossy Or Matte Finish, Plain Or Twill Weave Pattern
Standard Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, Etc. Applications: Robotics, RC Models, UAVs, Aerospace, Motorsports, Marine Applications, Musical Instruments Etc.
Shape: Can CNC Process Per Customer's Request Port: Shanghai
High Light:

Industrial Carbon Fiber Sheet 1mm

,

Carbon Fiber Sheet High Modulus

,

3k Twill Carbon Fiber Plate

Product Description

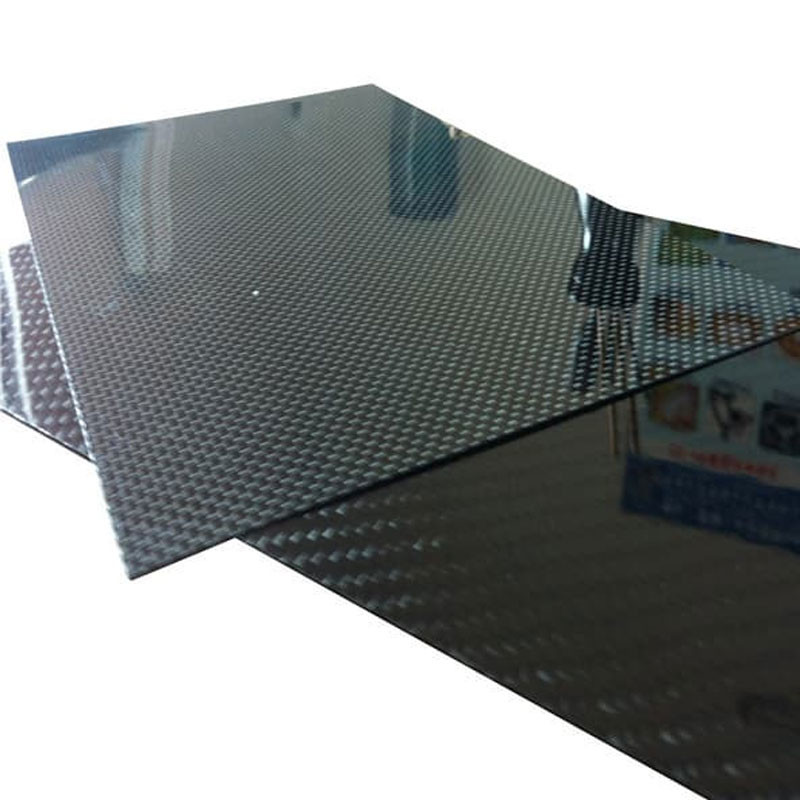

Standard Thicknesses High Modulus Industrial 1MM Carbon Fiber Sheet



LIJIN's Carbon Fibre sheets and panels are suitable for a multitude of applications from automotive to marine to commercial to use in the home and much more. We manufacture Carbon flat sheets from high-quality pre-preg Carbon Fibre in thicknesses ranging from 0.3mm up to 5.0mm. Thinner sheets are suitable for use as cosmetic trim, thicker panels can be used to make dashboards or door panels, interior trim, or structural components.



These sheets are made using 2X2 twill weave 3k carbon fibre (on either side) and unidirectional carbon in between orientated at +/- 45 degrees. (giving high stiffness) in the construction. It is the highest-grade carbon fibre sheet available. The manufacturing process we use gives a perfect finish, without pinholes or surface imperfections.



The sheet is available in different thicknesses and sizes, to suit your application.

  • Every sheet is produced using multiple layers of the highest quality high modulus pre-preg carbon
  • Every sheet is created using a 'balanced' layup, which creates a finished product that is very stable and does not warp.
  • The unique manufacturing process we use ensures pin-hole-free, flawless satin finish on both sides..
  • Thickness +/- 0.1mm

Applications include Drone parts (we also offer a CNC cutting service for this sheet), Structural brackets, High aesthetic parts which require both strength and a high-quality finish on both sides, parts that require a high heat resistance (this carbon sheet will withstand prolonged temperatures of 100 degrees C).



Single-Sided Carbon Fiber Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



FAQ:



1. Are you a factory or a trading?

We are a factory, with more than 16 years experience in composite products. We are one of the top manufacturers of carbon fiber tubes in China.



2. Can you send us a sample to check?

Yes, we can send you a free sample to check. You can pay the freight costs. When you place an order, we will return the freight cost to you.



3. What about the terms of payment?

T/T, L/C, Western union, etc



4. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.



5. What’s the difference between Chengcheng and other factories?

We have our own technology and research team. Our products strictly follow the quality control system in the composite products field.



6. Do you provide OEM service

Yes. OEM is welcome. We can make molds according to customers’ drawings and samples
