Heavy Duty Twist Lock Telescoping Carbon Fiber Tubing For Industrial

Minimum Order Quantity : 10 Sets Price : Negotiable
Packaging Details : 150*30*30cm/CTN, 10 Sets/CTN, Corrugated Carton for International Ocean Airlines shipping Delivery Time : 25 Days after Order Confirmation
Payment Terms : L/C, T/T, PayPal Supply Ability : 500 Sets/Month
Place of Origin: China Brand Name: 10M
Certification: SGS Model Number: 10M45FT

Detail Information

Tube Material: Telescoping Carbon Fiber Tubing Clamp Material: CFR Nylon, Aluminum
Usage: Windows Cleaning Waterfed Pole Color: Black Or Custom
Technology: Rolled-Wrapping Surface: 3K Plain 3K Twill Surface
Section: 2/3/4/5/6/7 Sections/custom Lock Type: Flip Cam Locking Device
High Light:

Twist Lock Carbon Fiber Telescope Tubes

,

Industrial Telescoping Carbon Fiber Tubing

,

3K Telescoping Carbon Fiber Tubing

Product Description

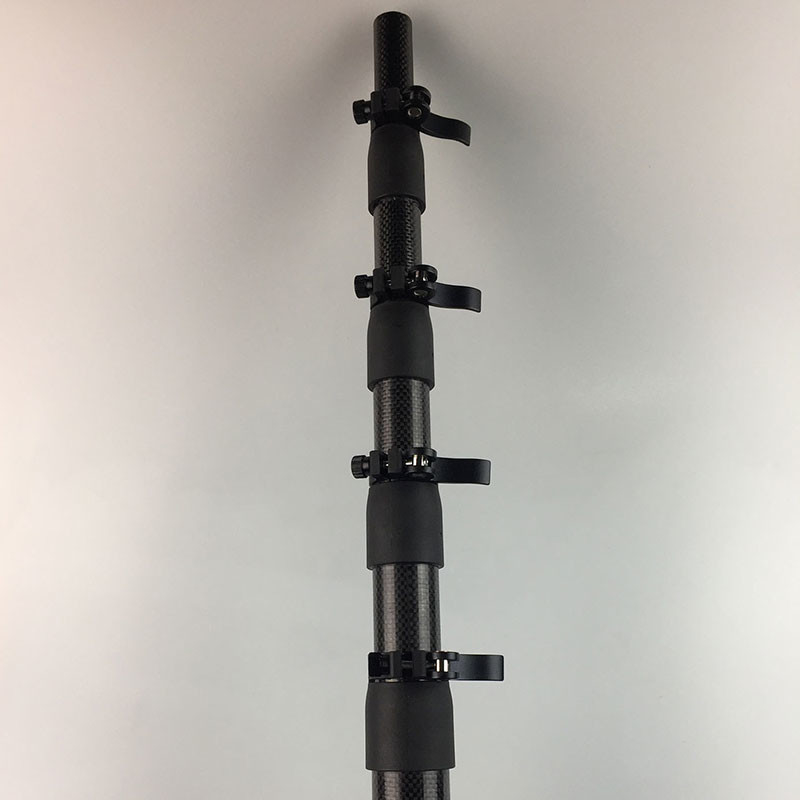

Heavy-Duty Twist Lock Telescoping Carbon Fiber Tubing for Industrial



Carbon fiber products are with high specific strength, good x-rays penetration, and good bio-compatibility, corrosion resistance, and wear-resistant. They are used for infrastructure construction and building materials, electronics, communication equipment, sports equipment, and so on.



Product Description:



New to LIJIN Composites’ selection of high-performance carbon fibre tubes is our range of 3K Woven Finish tubes which have a stunning high-gloss woven carbon fibre finish to complement their incredible strength.



With the classic appearance of 2/2 twill carbon fibre coupled with 100% roll-wrapped prepreg carbon fibre construction, these remarkable tubes look as good as they perform.



Appearance



This 3K Woven Finish tube is manufactured from alternating layers of unidirectional prepreg carbon fibre for maximum strength with the final layer swapped for 2/2 twill, 3k woven carbon fibre so that the tube has the classic appearance of woven carbon fibre (exactly the same as our carbon fibre sheets for example). This means that although the tubes are designed for demanding mechanical applications, they also look fantastic, adding a cutting-edge carbon fibre appearance to any application.



To achieve the smooth, glossy appearance the tubes are surface ground, lacquered (with high-gloss UV-resistant lacquer) and then polished. The end result is a carbon fibre tube of unrivaled visual appearance making it ideally suited for use in applications where it will be seen.



Performance



Although specially laminated, ground, lacquered and polished to produce a carbon fibre tube with a stunning appearance, our 3K Woven Finish tubes are serious tubes suitable for demanding engineering applications including robotics/automation, R/C models, UAVs, recreational equipment, motorsport and marine.



Detailed Size:

Warning section 100mm Lgth
Top section(smallest) 22OD18ID
Section2 26OD2260ID
Section3 3030OD2690ID
Section4 3440OD31ID
Section5 3880OD3520ID
Section6 4330OD3970ID



CHARACTERISTICS:
• Extended total length: 5000mm. (Tolerance ± 10mm.)
• Total length collected: 1360mm. (Tolerance ± 10mm.)
• Outside diameter of the larger tube: 31mm. (Tolerance ± 0.2mm.)
• Wall of the tubes: 1mm. (Tolerance ± 0.2mm.)
• Total weight: 812gr. (Tolerance ± 50gr.)
• Fiber: carbon 3K 200 gr / m2 Fabric Twill 2x2 (Twill)
• Resin: Epoxy
• Orientation of the fibers: Bidirectional



Heavy Duty Twist Lock Telescoping Carbon Fiber Tubing For Industrial 0Heavy Duty Twist Lock Telescoping Carbon Fiber Tubing For Industrial 1Heavy Duty Twist Lock Telescoping Carbon Fiber Tubing For Industrial 2Heavy Duty Twist Lock Telescoping Carbon Fiber Tubing For Industrial 3
