3K Matt Glossy Carbon Fiber Tube 12mm OD X 8mm 10mm 11mm

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: 12MM Carbon Fiber Tube Shape: Round/Oval
Pattern: 3K Twill, Accept 1K, 2K, 4K, 5K, Etc Material Finish: 3K Glossy Twill Surface
Production Process: Roll-Wrapped Weight: 60g/m
Density: 1.5g/cm3
High Light:

Round Glossy Carbon Fiber Pipe

,

3K Matt Carbon Fiber Tube

,

10mm Carbon Fiber Round Tube

Product Description

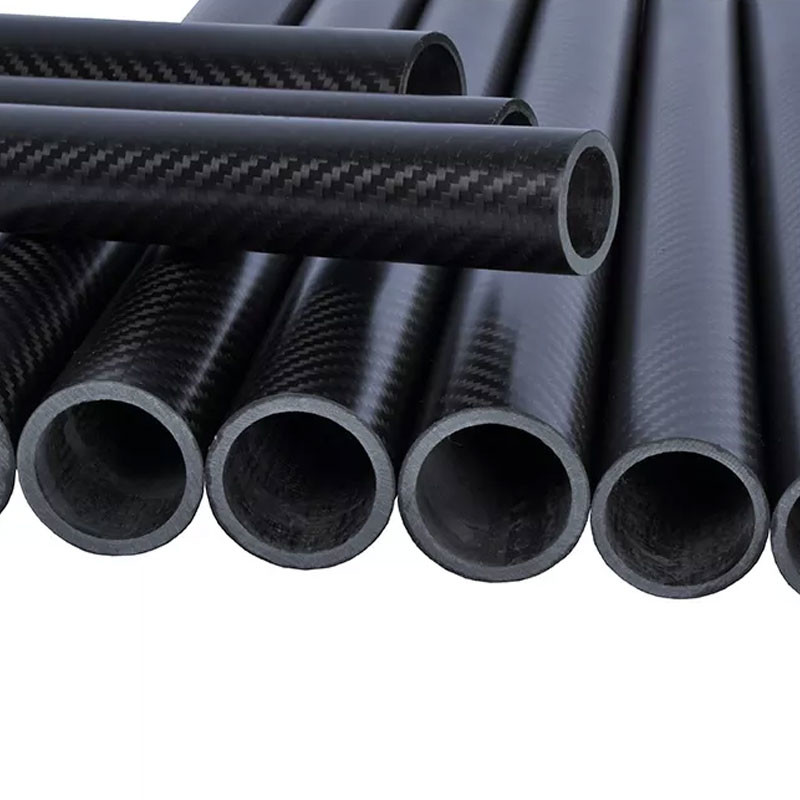

3K Matt Glossy 12mm Carbon Fiber Tube 12mm OD X 8mm 10mm 11mm



This is lightweight 12mm Carbon Fiber Tube. The tube is made from woven fabric so there are fibres running both along the tube and circumferencially. The surface finish is gloss and exposes the plain weaves pattern.



LIJIN carbon fibre roll wrap tube uses high strength unidirectional carbon fibre (24T) running length-ways down the tube for stiffness and at 90° around the tube to provide hoop strength and resilience to crush, burst and torsional loads. In addition to this high strength uni core, our tubes are finished with a classic final layer of 2×2 twill weave carbon fibre and UV stable clear high gloss or matte finish. The end result is a carbon fibre tube ideally suited for use in applications where it will be seen.



FEATURES:

  • Made of Carbon Fiber material
  • High Strength
  • Stable dimension and UV resistant
  • High Corrosion Resistance
  • High Thermal Conductivity in some forms
  • Low coefficient of thermal expansion
  • Non-poisonous
Material Round Carbon Fibre Tube
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm



Typical Uses



Roll wrapped tubes are better for applications where the tube may be subject to a variety of forces including bend, twist and crush. These light 12mm tubes are suitable for demanding engineering applications including scale aircraft, gliders, helicopter U.A.V.’s, lightweight frames or structures, tubular vessels, poles, column supports or any construction that requires strength, rigidity and lightness yet appearance is also important. They are equally suited to other precision applications like robotics and automation.



3K Matt Glossy Carbon Fiber Tube 12mm OD X 8mm 10mm 11mm 03K Matt Glossy Carbon Fiber Tube 12mm OD X 8mm 10mm 11mm 13K Matt Glossy Carbon Fiber Tube 12mm OD X 8mm 10mm 11mm 2
