Roll Wrapped Gloss Finish Twill Carbon Fiber Telescoping Tubes Corrosion Resistance

Minimum Order Quantity : 10 Sets Price : Negotiable
Packaging Details : 150*30*30cm/CTN, 10 Sets/CTN, Corrugated Carton for International Ocean Airlines shipping Delivery Time : 25 Days after Order Confirmation
Payment Terms : L/C, T/T, PayPal Supply Ability : 500 Sets/Month
Place of Origin: China Brand Name: 10M
Certification: SGS Model Number: 10M45FT

Detail Information

Features: Aging Resistant Tube Material: Twill Carbon Fiber Telescoping Tubes
Clamp Material: CFR Nylon, Aluminum Extended Length: 15-45ft
Surface: 3K Plain 3K Twill Fiber: Carbon 3K 200 Gr / M2 Fabric Twill 2x2 (Twill)
Resin: Epoxy Orientation Of The Fibers: Bidirectional
High Light:

Gloss Carbon Fiber Telescoping Tubes

,

Carbon Fiber Telescoping Tubes Corrosion Resistance

,

Twill Carbon Telescopic Fishing Rod

Product Description

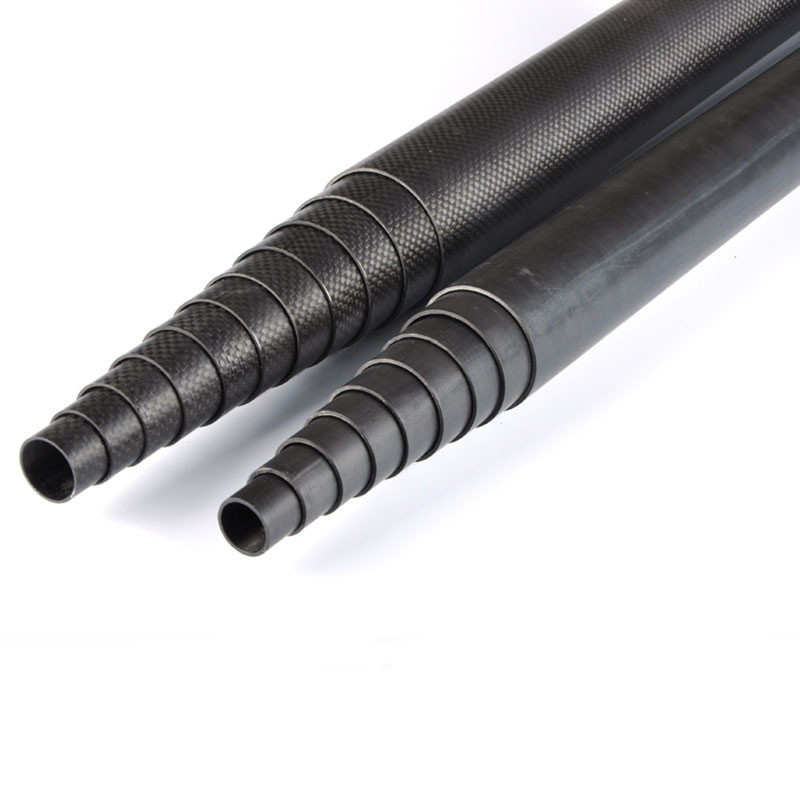

Corrosion Resistance Roll Wrapped Gloss Finish Twill Carbon Fiber Telescoping Tubes



Roll Wrapped Carbon Fiber Tube Twill Weave Gloss Finish uses high strength unidirectional equivalent carbon fiber core with an epoxy resin system to ensure a strong rigid tube that will meet your needs. In addition to this high-strength uni core this tube is finished with a beautiful 2×2 twill weave carbon fiber and then given a gloss finish. Due to raw material constraints, it is hard to create pipes exactly at a specific measurement unless they are built over-sized and machined down so that is why our pipes may be a few thousandths off from our ideal measurement we are trying to match.



Appearance



This 3K Woven Finish tube is manufactured from alternating layers of unidirectional prepreg carbon fibre for maximum strength with the final layer swapped for 2/2 twill, 3k woven carbon fibre so that the tube has the classic appearance of woven carbon fibre (exactly the same as our carbon fibre sheets for example). This means that although the tubes are designed for demanding mechanical applications, they also look fantastic, adding a cutting-edge carbon fibre appearance to any application.



To achieve the smooth, glossy appearance the tubes are surface ground, lacquered (with high-gloss UV resistant lacquer) and then polished. The end result is a carbon fibre tube of unrivalled visual appearance making it ideally suited for use in applications where it will be seen.



Performance



Although specially laminated, ground, lacquered and polished to produce a carbon fibre tube with a stunning appearance, our 3K Woven Finish tubes are serious tubes suitable for demanding engineering applications including robotics/automation, R/C models, UAVs, recreational equipment, motorsport and marine.



Features:

  • Lightweight: When you need to use a tool daily, any weight savings are not only noticeable but appreciated.
  • Durable: Fiberglass and carbon fiber are both very durable materials. Both strong and stiff, they are resistant to corrosion and will not rust or rot.
  • Consistent quality, volume production: Our expertise with pultrusion and pull-winding manufacturing are seen in the repeated quality of the delivered products.


Perfect for:
- Cleaning.
- Pruning
- Fumigation.
- Filming (image and sound).
- Advertising.
- Probes
- Etc.



Main Products:

CNC carbon fiber sheet and CNC carbon fiber tube, include CNC cutting, chamfer, drill hole, countersinking.
3K full carbon fiber sheet, 3K full carbon fiber tube, with twill weave matte surface, twill weave glossy surface, plain weave matte surface, and plain weave glossy surface.
Pultruded carbon fiber components include tube, square tube, and rod.
Fiberglass tube, with black or color surface.



Detailed Size:

Warning section 100mm Lgth
Top section(smallest) 22OD18ID
Section2 26OD2260ID
Section3 3030OD2690ID
Section4 3440OD31ID
Section5 3880OD3520ID
Section6 4330OD3970ID



CHARACTERISTICS:
• Extended total length: 5000mm. (Tolerance ± 10mm.)
• Total length collected: 1360mm. (Tolerance ± 10mm.)
• Outside diameter of the larger tube: 31mm. (Tolerance ± 0.2mm.)
• Wall of the tubes: 1mm. (Tolerance ± 0.2mm.)
• Total weight: 812gr. (Tolerance ± 50gr.)
• Fiber: carbon 3K 200 gr / m2 Fabric Twill 2x2 (Twill)
• Resin: Epoxy
• Orientation of the fibers: Bidirectional

Roll Wrapped Gloss Finish Twill Carbon Fiber Telescoping Tubes Corrosion Resistance 0

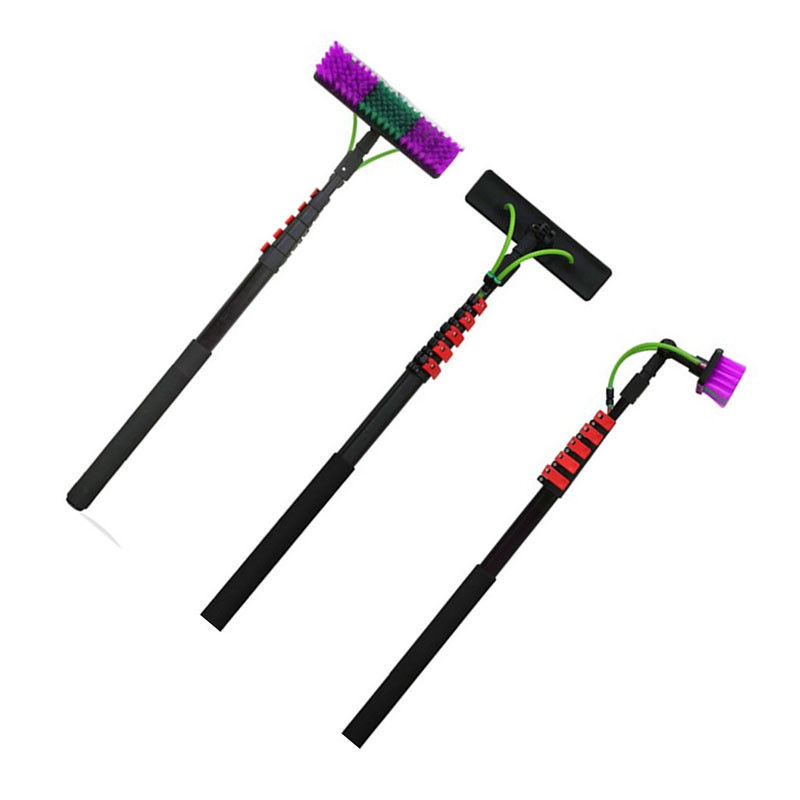

45ft reach carbon fiber telescopic pole



Strong Clamps

CFR Nylon Injection moulded and Aluminum 7075 metal fitting

CFR Nylon Clamp for Carbon Telescopic Pole

Aluminum Fitting for Carbon Fiber Telescopic Pole

Cleaning waerfed pole Carbon Fiber
