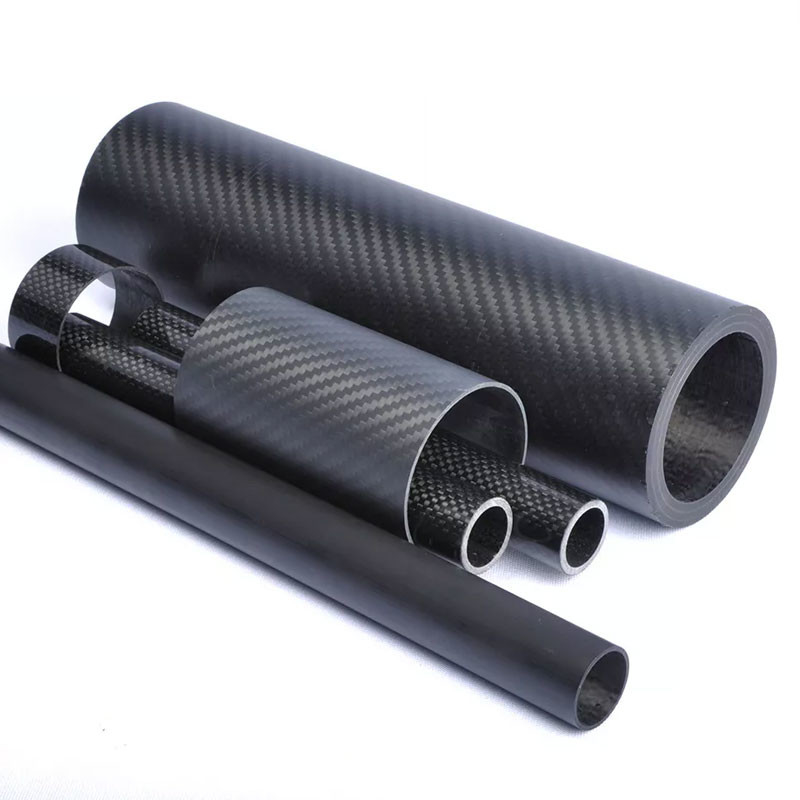

OD 45mm X ID 41mm X 500MM Roll Wrapped Carbon Fiber Tube 3K Twill Glossy

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Features: Lightweight, High Strength Product Name: 3K Carbon Fiber Tubes
Pattern: Twill, Plain Shape: Round Or Custom
Technology: Roll-wrapped Weaves: 3K Plain / 3K Twill / Unidirection
Density: 1.5g/cm^3 Fibre Orientation: 0, 90
High Light:

Twill Roll Wrapped Carbon Fiber Tube

,

Glossy Roll Wrapped Carbon Fiber Tube

,

3K Glossy Carbon Fiber Tubing

Product Description

OD 45mm X ID 41mm X 500MM 100% Roll Wrapped Carbon Fiber Tube 3K /Tubing 45*41*500mm 3K Twill Glossy


Whether your project is big or small, we are bound to have round carbon fiber tubing that suits your needs. As an added bonus we are generally able to ship right away on most products listed in our store! Aside from aesthetic variations of our many round stock tubes, you might also wish to consider their superb mechanical properties as well. That is after all the main reason we love carbon fiber so much! Of course it's an added bonus that it looks incredible too.



Roll wrapped tubing is manufactured using multiple layers of prepreg carbon fiber (and if noted, other) materials. In general each layer is about 0.006 inches thick which means that a tube with a wall thickness of 0.060 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers (plys) allows us to vary the orientation of the fibers throughout the thickness, creating a high performance, engineered product.



Composition



Roll-wrapped tubing is manufactured using multiple layers of prepreg carbon fiber (and if noted, other) materials. In general, each layer is about 0.006 inches thick which means that a tube with a wall thickness of 0.060 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers (plys) allows us to vary the orientation of the fibers throughout the thickness, creating a high-performance, engineered product.



Carbon fiber tubes are used in numerous applications like tactical ladders, trusses, beams, and more. Carbon fiber is typically chosen over traditional materials such as aluminum, steel, and titanium because of the following properties:

  • High strength and stiffness to weight
  • Excellent resistance to fatigue
  • Dimensional stability: Low CTE (Coefficient of Thermal Expansion)
  • Resistance to corrosion
  • X-Ray transparency
  • Chemical resistivity

Applications

  • Automotive
  • Light Aircraft Tubing
  • Construction
  • Duct rod / Fish rods
  • Aerospace Instrument & Interior Supports
  • Photography & Sound Booms
  • Outer Space & Terrestrial Antennae Supports
  • Corrosion Resistant Equipment Marine
  • Sporting Goods
  • Oil & Gas
  • Robotic Arms & Supports
  • Power Generation
  • Window Shades
  • Wastewater Treatment
  • Advertising Panels



Material Pultrusion Carbon Fiber Tube
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


OD 45mm X ID 41mm X 500MM Roll Wrapped Carbon Fiber Tube 3K Twill Glossy 0OD 45mm X ID 41mm X 500MM Roll Wrapped Carbon Fiber Tube 3K Twill Glossy 1OD 45mm X ID 41mm X 500MM Roll Wrapped Carbon Fiber Tube 3K Twill Glossy 2OD 45mm X ID 41mm X 500MM Roll Wrapped Carbon Fiber Tube 3K Twill Glossy 3OD 45mm X ID 41mm X 500MM Roll Wrapped Carbon Fiber Tube 3K Twill Glossy 4
