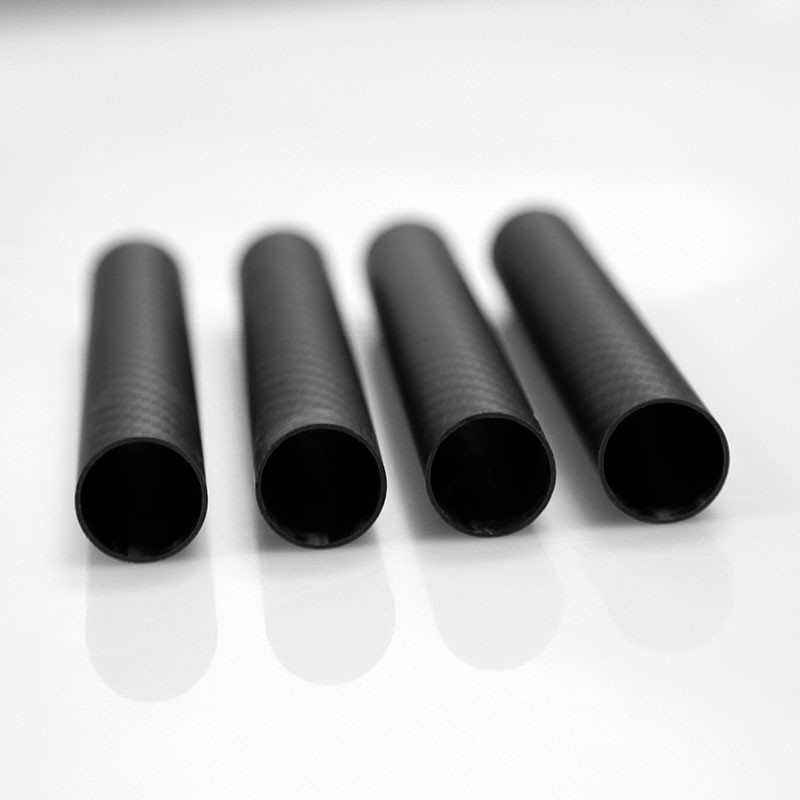

3K Roll Wrapped Carbon Fiber Tube 40 X 38 X 1000mm CF Tube
Contact Person : Terry.Chang, Annie.Liang
Phone Number : +86-13681832139
WhatsApp : +8619537611058
|Minimum Order Quantity :||Negotiable||Price :||Negotiable|
|Packaging Details :||Normal Corrugated Carton Packing for International Shipment||Delivery Time :||7 working days after receiving Order Pay|
|Payment Terms :||T/T, Western Union, L/C||Supply Ability :||1500pcs month|
|Place of Origin:||China||Brand Name:||Tanku|
|Certification:||SGS, ROHS||Model Number:||OEM|
|Features:||High-Strength, Low Density, Corrosion Resistant, Etc.||Product Name:||3K Full Carbon Fiber Tube|
|Shape:||Round||Weave:||3K Plain / 3K Twill / Unidirection|
|Raw Materials:||Carbon Fiber, Epoxy||Surface:||Glossy/ Matte/ 50% Glossy|
|Colors:||Black Or Any Color From RAL||Denisty:||1.5g/cm3|
|Wall Thickness:||From 0.5mm To 20mm||Length:||From 0.05 Meter To 3.5 Meters|
Carbon Fibre Tube 3K Plain,
Matte Carbon Fiber Rod,
High Strength Carbon Fiber Pipes 0.5mm
High Strength Custom Dimension Round Plain Matte 3K Full Carbon Fiber Tube
What is 3K carbon fiber tube?
Carbon fiber tube, also known as carbon tube, also known as carbon fiber pole, is made of carbon fiber composite material pre-impregnated with styrene-based polyester resin by heat curing and pultrusion (roll forming).
How strong is carbon fiber tubing?
The modulus of carbon fiber is typically 33 msi (228 GPa) and its ultimate tensile strength is typically 500 ksi (3.5 Gpa).
What are carbon fiber tubes used for?
Carbon fiber tubes are used in numerous applications like tactical ladders, trusses, beams, and more. Carbon fiber is typically chosen over traditional materials such as aluminum, steel, and titanium because of the following properties: High strength and stiffness to weight. Excellent resistance to fatigue.
What type of carbon fiber is best?
4×4 Twill. 2×2 Twill is likely the most recognizable carbon fiber weave in the industry. It is used in many cosmetic and decorative applications, but also has great functionality, it has both moderate formability and moderate stability.
What's the difference between 1K and 3K carbon?
Over the last couple of years marketing people have used terms such as 1K or 3K when writing about carbon. This specifies the number of miniscule fibres (filaments) used in one roving. 1K stands for 1000 filaments, 3K for 3000 and so on. These rovings are then biaxially interwoven to make a carbon fabric.
Can carbon fiber replace steel?
Carbon fiber composite has a density almost x 2 times less than aluminium, and more than 5 times less than steel. Consequently, in a component of the same dimensions, replacing aluminium with carbon fiber will reduce its weight by ~42%. Replacing steel with carbon fiber will reduce the weight x 5 times.
Carbon Fiber Tube Applications:
1. Sports leisure structural materials and instruments.
2. Suitable for tent/kite production.
3. Suitable for sports equipment, medical instruments, and military fields.
4. Suitable for building material shaft, lifting lever, advertisement display frame, bracket lamp, and fishing rod.
5. Suitable for aircraft model aircraft, unmanned aerial vehicles, and motor vehicles.
6. PC equipment shaft, etching machine.
1) How can I place order?
A: You can contact us by email about your order details.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Paypal
3) What's the order procedure?
A: First we discuss order details, production details by email or WhatsApp. Then we issue you a PI for your confirmation.
You will be requested to do prepaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4) How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
|Material||Round Carbon Fibre Tube|
|Technology||Roll-wrapped or pultrusion|
|Dimension||The existing inner diameter of the mold is 4mm-50mm with a length of 1m.|
|Customizable size: The maximum diameter can be 200mm, the longest can be 3m.|
|Surface||Black glossy/matte surface/painted|
|Glossy 3k weave/matte 3k weave|
|Color metal wire weave|
|Feature||lightweight, high strength|
|Working Temperature||Usually, -30-120 degrees, if special requirement, please let us know.|
|Place Of Origin||China|
|Function||Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products|
|Tolerance||Diameter Tolerance: +/-0.1mm|
1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.
