Unidirection Composite Carbon Fiber Tube Low Thermal Conductivity

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Features: Lightweight, High Strength Product Name: Carbon Fiber Composite Tube
Material Description: 100% Carbon Fiber Pattern: Twill, Plain
Shape: Round Or Custom Technology: Roll-wrapped
Weaves: 3K Plain / 3K Twill / Unidirection Density: 1.5g/cm^3
Fibre Orientation: 0, 90 Port: Shanghai
High Light:

Composite Carbon Fiber Pipe

,

Carbon Composite Tube 200mm

,

Unidirection Carbon Fiber Round Tube

Product Description

High Performance Low Thermal Conductivity Carbon Fiber Composite Tube


LIJIN has developed a unique composite tube manufacturing process, combing precise control of the fibre lay-up angles with the enhanced properties of Thin Ply Prepregs. The process is ideal for any tubular structure where weight, performance and cost are critical factors. Automotive drive shafts, aircraft struts, windsurf masts and golf shafts are just a few examples of possible applications.



With any tubular product, or indeed any composite structure, the use of thinner plies offers nearly unlimited options for fibre angles and fibre type combinations; and the micro-structure of a thin ply laminate results in higher mechanical properties. LIJIN’s novel tube manufacturing process ensures that each of these thin carbon plies is wound continuously, resulting in a symmetrically stiff tube with no spine, unlike the traditional table rolling methods that have dominated the market until now. This new process affords precise control over the alignment of perfectly axial fibre, which is difficult to achieve with filament winding. The ratio of longitudinal fibres to off-axis fibres along the length and through the thickness of the tube can be controlled, enabling optimization and higher quality in demanding applications.



Features:

  • Light weight.with a super low density of only 1.5 comparing
  • with 1.95 of fiberglass composite,2.7 of aluminum and 7.85 of steel. It’s no more than 1/5 of steel.
  • Super strength.it’s 5 times of that of steel.
  • Corrosion-resistant.anti-acid,anti- alkali,never rust.it’s more excellent than stainless steel.
  • UV-resistant.durable with a long lifetime.
  • Pretty weak thermal conductivity
  • Resistance of a super high temperature above 2000 degrees.
  • X-ray transparency
  • Non-magnetic electromagnetic
  • Strength of extension is above 3500MPa,7 to 9 times of steel.
  • Specific strength is above 2000,comparing with 59 of steel.
  • Specific modulus is also higher than steel.
  • Superior dimensional stability. It swell scarcely.
  • Eco-friendly

Applications:

  • Automotive
  • Light Aircraft Tubing
  • Construction
  • Duct rod / Fish rods
  • Aerospace Instrument & Interior Supports
  • Photography & Sound Booms
  • Outer Space & Terrestrial Antennae Supports
  • Corrosion Resistant Equipment Marine
  • Sporting Goods
  • Robotic Arms & Supports
  • Advertising Panels
  • Lifting Spars



Material Carbon Fiber Composite Tube
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


Our Service:

1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.

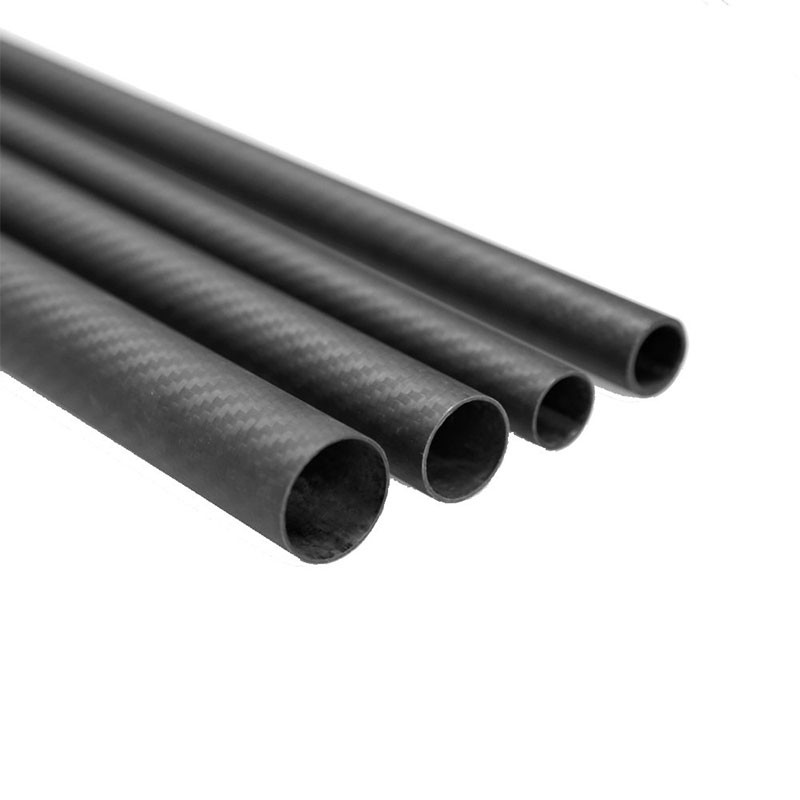

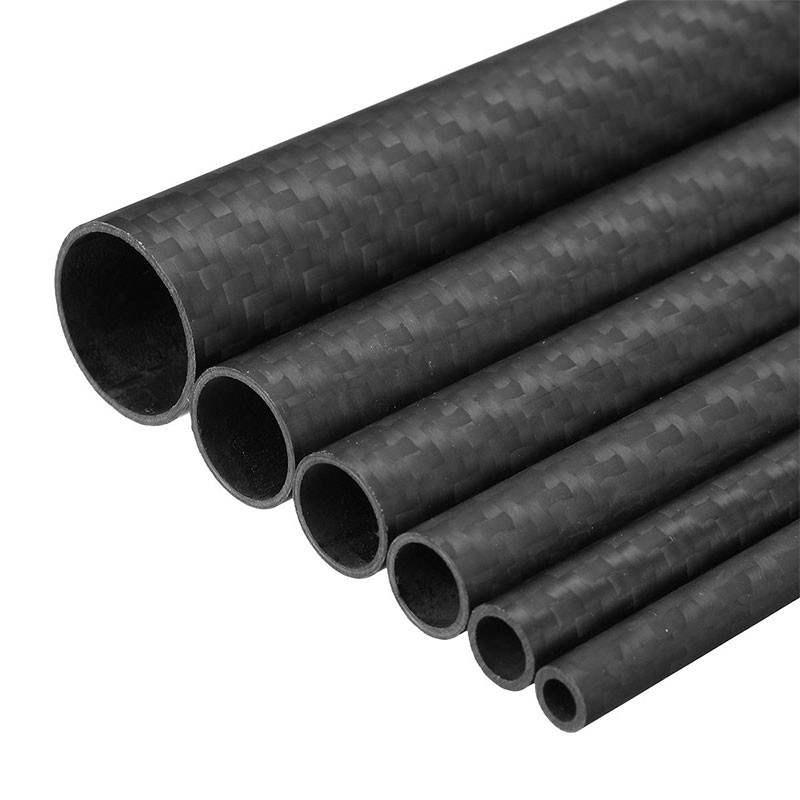

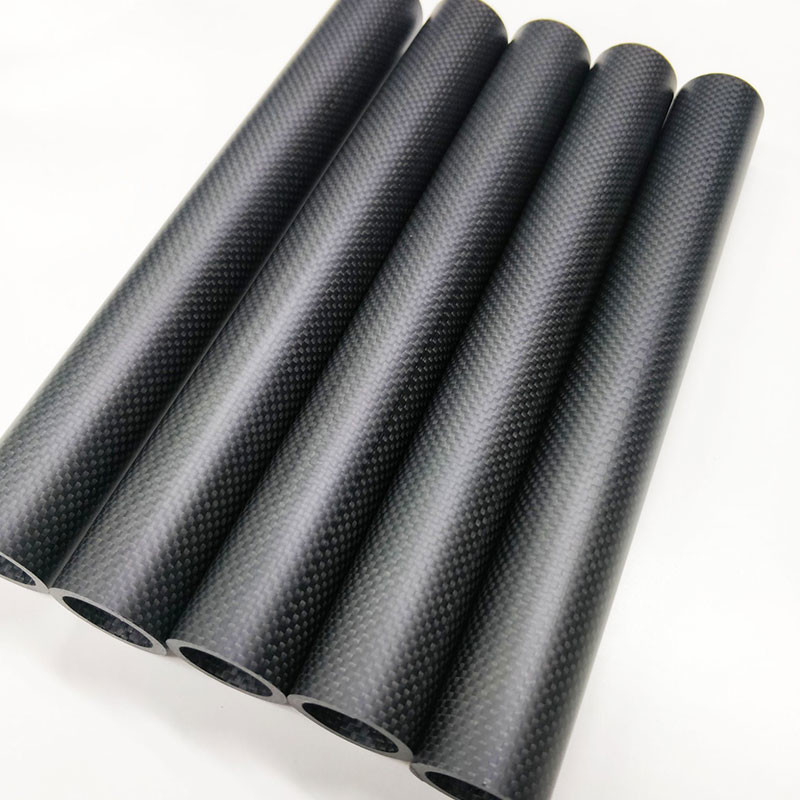

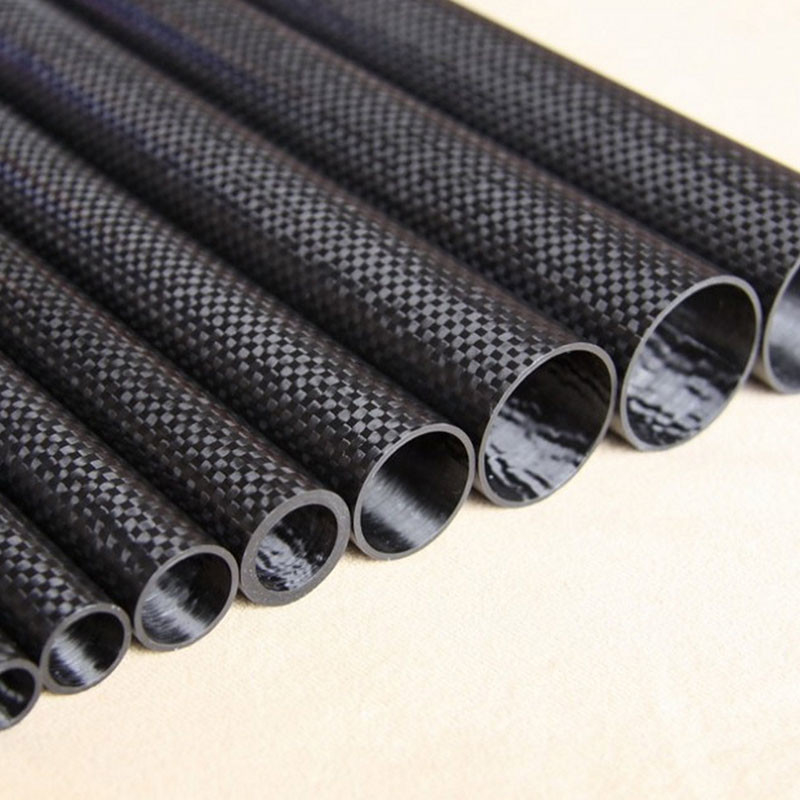

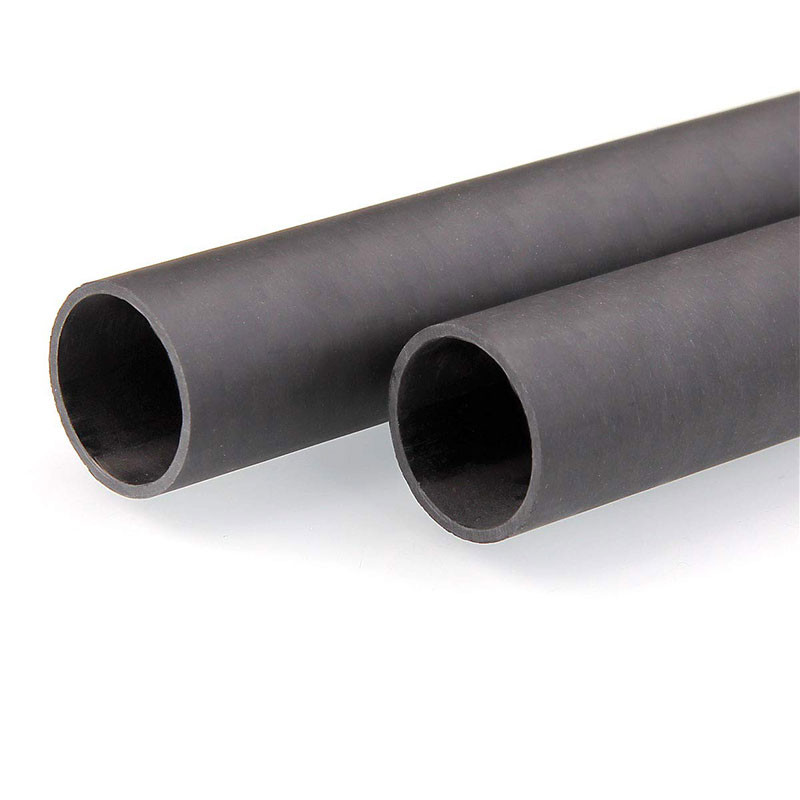

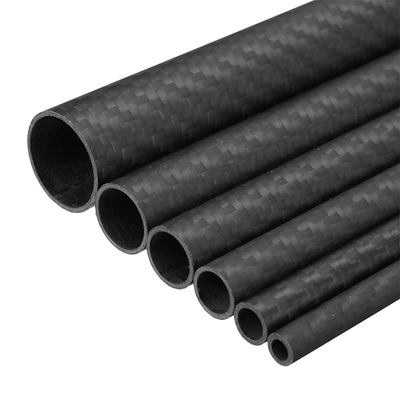

Unidirection Composite Carbon Fiber Tube Low Thermal Conductivity 0Unidirection Composite Carbon Fiber Tube Low Thermal Conductivity 1Unidirection Composite Carbon Fiber Tube Low Thermal Conductivity 2Unidirection Composite Carbon Fiber Tube Low Thermal Conductivity 3Unidirection Composite Carbon Fiber Tube Low Thermal Conductivity 4
