Electrical & Thermal Non-Conductivity 6mm*4mm*1000mm Pultruded Carbon Fiber Tube
Contact Person : Terry.Chang, Grace Gu
Phone Number : +86-13681832139
WhatsApp : +8619537611058
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Normal Corrugated Carton Packing for International Shipment | Delivery Time : | 7 working days after receiving Order Pay |
Payment Terms : | T/T, Western Union, L/C | Supply Ability : | 1500pcs month |
Place of Origin: | China | Brand Name: | Tanku |
---|---|---|---|
Certification: | SGS, ROHS | Model Number: | OEM |
Detail Information |
|||
Features: | Lightweight, High Strength | Product Name: | 3K Finish Carbon Fibre Tube |
---|---|---|---|
Material Description: | 100% Carbon Fiber | Pattern: | Twill, Plain |
Shape: | Round Or Custom | Technology: | Roll-wrapped |
Weaves: | 3K Plain / 3K Twill / Unidirection | Density: | 1.5g/cm^3 |
Fibre Orientation: | 0, 90 | Port: | Shanghai |
Highlight: | 3K Industrial Carbon Fiber Tube,Straight Carbon Fiber Oval Tube,3K Finish Carbon Tubing |
Product Description

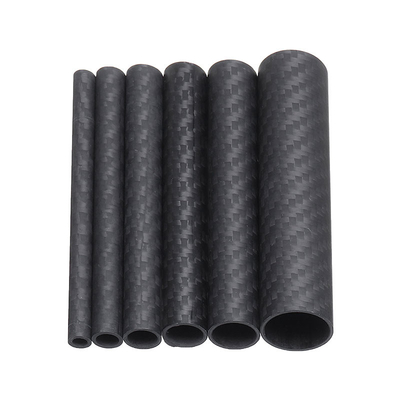

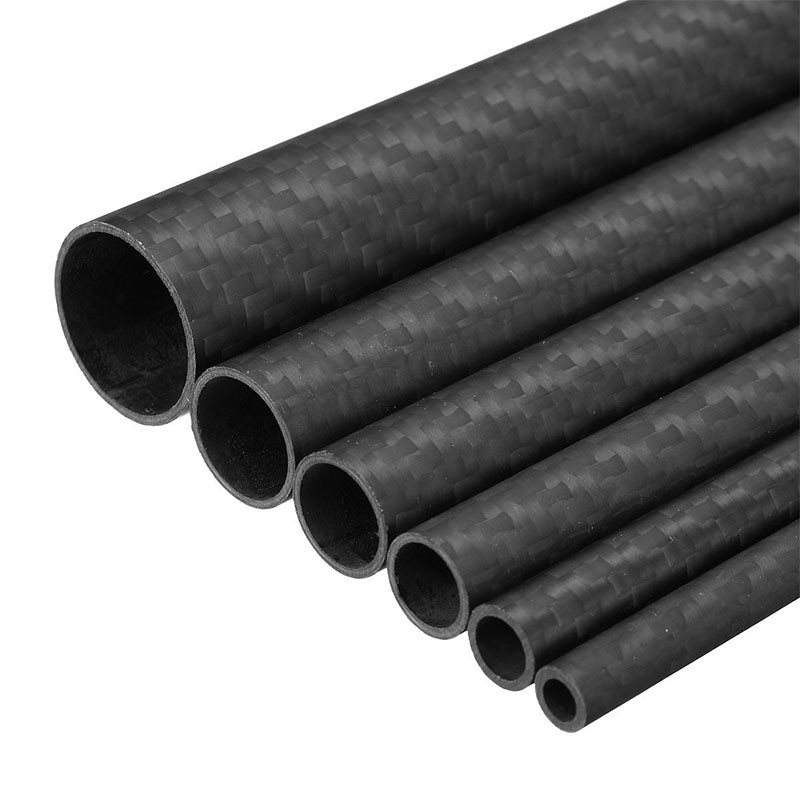

High Straight Industrial Carbon Fibre Tube 12.0 x 10.0mm with 3K finish
Our twill round carbon fiber tube is roll wrapped from unidirectional carbon fiber with a 3k twill carbon fiber fabric outer layer. They not only offer a beautiful surface but also excellent torsional characteristics, as well as crush strength, and are ideal for high torque applications. This round tubing is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other application where low weight and high stiffness are essential and appearance is also important.
Our roll-wrapped carbon tubes come in various diameters, lengths, and thicknesses, If you want to buy a large diameter carbon fiber tube or any other specific carbon fiber tube, do not hesitate to contact us, we can custom carbon fiber tube for you.
What carbon fiber tube you can buy from us?
LIJIN manufacturing and wholesale multiple finishes with standard modulus carbon fiber tubes offer excellent strength and stiffness, it is 1.5X stiffer than aluminum and is the most economical grade composite tube. Finishes available be twill gloss and twill matte.
How to make carbon fiber tubing?
Our carbon fiber round tube is rolled unidirectional carbon fiber fabric into a mandrel, and roll wrapped a 3k finish fabric exterior. Unidirectional carbon fiber is the structural backbone of all our tubes, the 3k fabric weave that gives carbon fiber tubes their traditional ”carbon fiber look” is only the outside layer and helps with durability. Usually, any wall thickness can be made by changing the number of layers or combining different prepreg thicknesses (usually 0.15mm- 0.25mm thick per layer), Our round tubes typically use layups designed for optimal performance in a wide range of conditions. We use 100% pure carbon fiber materials making carbon fiber tubing in a wide variety of diameters and lengths. Common diameter includes 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm carbon fiber tube, ... 40mm carbon fiber tube, our round tube standard length is 1000mm, If you need a carbon fibre tube with other lengths or diameters, or need colored carbon fiber tube, do not hesitate to contact us, we can cut and custom carbon fiber tubes to your specified.
Carbon fiber tubes stock.
Even LIJIN is a carbon fiber tube factory, we don’t really “stock” tubing. There are so many different wall thicknesses and lengths options that most tube is custom-built for the application. What we do consider stock, is carbon fiber tubing sizes that we already have a mandrel for (tooling). After picking a mandrel, we will engineer a laminate and build the tubes to you specs. Your order can usually be accomplished in about a week.
How to work with us?
If you want to get our carbon fiber tube price, please include ID, OD, length, dimensional tolerances, quantity, structural requirements, surface finish, surface pattern, material (if you know), temperature requirements, processing technology, etc. According to these points, we can easily and quickly quote you the price.
Material | 3K Finish Carbon Fibre Tube |
Shape | Round/Oval |
Technology | Roll-wrapped or pultrusion |
Dimension | The existing inner diameter of the mold is 4mm-50mm with a length of 1m. |
Customizable size: The maximum diameter can be 200mm, the longest can be 3m. | |
Surface | Black glossy/matte surface/painted |
Glossy 3k weave/matte 3k weave | |
Color metal wire weave | |
Feature | lightweight, high strength |
Working Temperature | Usually, -30-120 degrees, if special requirement, please let us know. |
Place Of Origin | China |
Function | Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products |
Tolerance | Diameter Tolerance: +/-0.1mm |
Length Tolerance | +/-1mm |
Our Service:
1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.
