High Modulus 3K Twill Carbon Fiber Round Tube Roll Wrapped Tubing
Contact Person : Terry.Chang, Annie.Liang
Phone Number : +86-13681832139
WhatsApp : +8613681832139
|Minimum Order Quantity :||Negotiable||Price :||Negotiable|
|Packaging Details :||Normal Corrugated Carton Packing for International Shipment||Delivery Time :||7 working days after receiving Order Pay|
|Payment Terms :||T/T, Western Union, L/C||Supply Ability :||1500pcs month|
|Place of Origin:||China||Brand Name:||Tanku|
|Certification:||SGS, ROHS||Model Number:||OEM|
|Product Name:||Carbon Fiber Rectangular Tube||Material:||100% Carbon Fiber|
|Shape:||Square Or Round||Pattern:||Twill, Plain|
|Color:||Black Or Custom||Size:||Custom Thickness And Length|
|Feature:||Great Replacement For The Low-grade Aluminum Wing Tubes||Port:||Shanghai|
UV Resistant Carbon Fiber Rectangular Tube,
3K Matte Carbon Fiber Rectangular Tube,
Twill Carbon Fiber Rectangular Tube
Anti-Ultraviolet Radiation UV Resistant Carbon Fiber Rectangular Tube

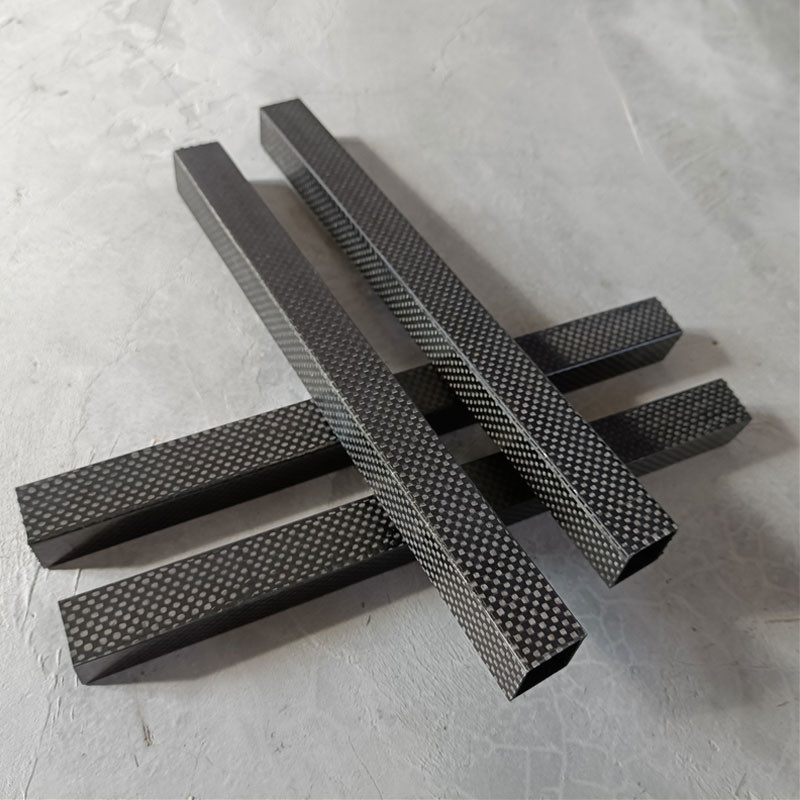

Carbon fiber square tube made entirely of high-quality carbon fiber. It is real carbon fiber, pressed and cured in the oven. With constant thickness, very high hardness, and very little weight. If what you are looking for are the benefits of the carbon tube, this is your product. If you need a tube with other lengths, diameters, or thicknesses, do not hesitate to contact us, we can manufacture it.
Rectangular carbon fibre tube manufactured by using the pultrusion technique in which the high-performance carbon fibres are all orientated parallel to the longitudinal axis (unidirectional) and internally reinforced with more unidirectional carbon fibres laminated by using pullwingding technology to achieve greater resistance to bending and torsion.
This type of profile has a high specific mechanical resistance (related to its weight), lightness, rigidity, great resistance to fatigue and vibrations, resistance to oxidation and corrosion, low coefficient of thermal expansion and durability.
Pultrusion is a technique of continuous production of linear profiles with a constant section. This process has many similarities to extrusion, the main difference is in the feeding system: in extrusion the material is pushed through the matrix (mould), in pultrusion it is extracted from the matrix. This procedure does not allow variations in shape, sections or curves. Products that can be obtained by this process can have sections or thicknesses of up to approximately 15mm, with epoxy resins and up to 70mm with polyester resins.
Products made with this technology have excellent tensile strength characteristics due to the linear orientation of the fibres in the direction of axis of the profile; if it is also necessary to have a good transversal resistence, a woven fabric is used as backing in specific quantities and weights.
|Product Name||Carbon Fiber Rectangular Tube|
|Material||100% Carbon Fiber|
|Color||Black or custom|
|Size||Custom thickness and length|
|Fiber Type||1. Carbon fiber+carbon fiber
2. Carbon fiber+ glass fiber
3. Carbon fiber+aramid fiber
|Application||1. Aerospace, RC model parts Helicopters Model
2. Manufacture fixtures and tooling
3. Industrial automation and robotics
4. Sports equipment
5. Musical instruments
6. Scientific apparatus
7. Medical device
|Our Product||Carbon fiber tube, carbon fiber plate, carbon fiber profiles.|
All our tubes admit a certain tolerance in their measurements, this comes from the necessary cuts and the manufacturing process itself. They can then present in some cases irregular edges that in no case affect the quality of them, but if the size.
Although we always try to send our tubes with a size equal to or greater than the one offered, which we do in 90% of cases, remember that there is a reasonable margin for which we will not accept claims.
For this reason, and to avoid misunderstandings, if you need an extremely precise tube in the cut or size, do not hesitate to let us know at the time of placing your order so we can take it into account.
