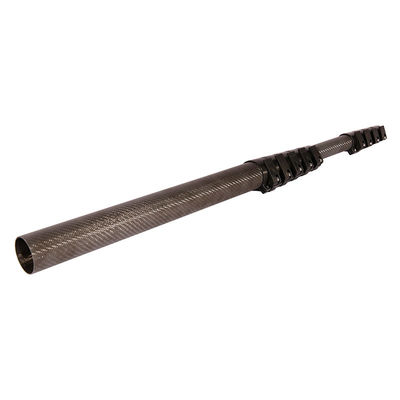

High Modulus 3K Telescopic Carbon Fiber Poles Rolled Wrapping

Minimum Order Quantity : 10 Sets Price : Negotiable
Packaging Details : 150*30*30cm/CTN, 10 Sets/CTN, Corrugated Carton for International Ocean Airlines shipping Delivery Time : 25 Days after Order Confirmation
Payment Terms : L/C, T/T, PayPal Supply Ability : 500 Sets/Month
Place of Origin: China Brand Name: 10M
Certification: SGS Model Number: 10M45FT

Detail Information

Features: Lightweight, High Strength Tube Material: Telescopic Carbon Fiber Tube
Clamp Material: CFR Nylon, Aluminum Usage: Windows Cleaning Waterfed Pole
Technology: Rolled-Wrapping Surface: 3K Plain 3K Twill
Standard: SGS Material: Carbon Fiber Or Composite
Surface Treatment: Glossy Or Matte Fiber: Carbon 3K 200 Gr / M2 Fabric Twill 2x2 (Twill)
High Light:

3K Plain Carbon Fiber Poles

,

3K Telescopic Carbon Fiber Poles

,

SGS Carbon Fiber Telescopic Pole

Product Description

High Quality High Modulus Customized 3K Telescopic Carbon Fiber Tube



One of the most established areas of our business is the design and manufacture of telescopic carbon fibre tubes.



For applications that require working at a distance, minimising component weight is essential to improve manoeuvrability and ease of operation. At up to a 5th of the weight of steel, and many times stronger, composites are therefore ideally suited to this purpose.



Some examples of carbon fibre telescopic tubing applications include:

  • High-level water fed window cleaning poles
  • Boarding and high-level access poles
  • Microphone booms
  • Camera tripods
  • Military and broadcasting antenna masts (push up, wind up and pneumatic)
  • IED and mine clearance poles
  • Motor racing refuelling booms

Specifications of telescopic carbon fiber poles:

  • Technology: Rolled-wrapping
  • Material: carbon fiber or composite
  • Thickness: 0.2-50mm
  • Color: Black or any color
  • Surface: Natural 3K woven, glossy or matte
  • Length: blow 5000mm
  • Section: According to customer demand
  • Model: Custom, ODM, OEM, as your order.
  • Tolerance:+/-0.05mm

Features:

  • The first telescoping carbon graphite outrigger available to the sports fishing enthusiast
  • Features our patented LIJIN Track Internal Tracking System "to always line up and never miss the hole"
  • The proprietary manufacturing process utilizes multiple layers of carbon graphite and UV stable epoxy tape counter wrapped using tension, pressure, and cure time to create the strongest weight to strength ratio possible
  • Lightest telescoping outrigger in the industry


Perfect for:
- Cleaning.
- Pruning
- Fumigation.
- Filming (image and sound).
- Advertising.
- Probes
- Etc.


Telescoping Carbon Fiber Poles is an electrically conductive material, so you have to take into account the necessary preventive measures depending on its use. It is recommended to use the fiberglass grip section to serve as an insulator.



Detailed Size:

Warning section 100mm Lgth
Top section(smallest) 22OD18ID
Section2 26OD2260ID
Section3 3030OD2690ID
Section4 3440OD31ID
Section5 3880OD3520ID
Section6 4330OD3970ID



CHARACTERISTICS:
• Extended total length: 5000mm. (Tolerance ± 10mm.)
• Total length collected: 1360mm. (Tolerance ± 10mm.)
• Outside diameter of the larger tube: 31mm. (Tolerance ± 0.2mm.)
• Wall of the tubes: 1mm. (Tolerance ± 0.2mm.)
• Total weight: 812gr. (Tolerance ± 50gr.)
• Fiber: carbon 3K 200 gr / m2 Fabric Twill 2x2 (Twill)
• Resin: Epoxy
• Orientation of the fibers: Bidirectional



45ft reach carbon fiber telescopic pole



Strong Clamps

CFR Nylon Injection moulded and Aluminum 7075 metal fitting

CFR Nylon Clamp for Carbon Telescopic Pole

Aluminum Fitting for Carbon Fiber Telescopic Pole



Roll-wrapped Carbon Fiber

Material option: UD Carbon Fiber, 3K

UD_3K_CarbonFiber





Customized Length acceptable

Regular length per section, 0.9 meter, 1.5 meters, 1.8 meters. Any customized length acceptable



Windows,Building, Gutter Cleaning

Max load 4KGS, windows cleaning waterfed poles

Cleaning waerfed pole Carbon Fiber
