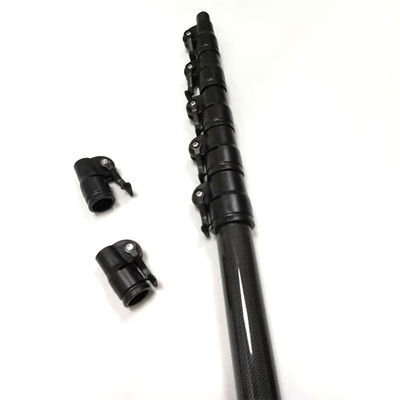

Roll Wrapped Telescoping Carbon Fiber Tubing 1360mm Length

Minimum Order Quantity : 10 Sets Price : Negotiable
Packaging Details : 150*30*30cm/CTN, 10 Sets/CTN, Corrugated Carton for International Ocean Airlines shipping Delivery Time : 25 Days after Order Confirmation
Payment Terms : L/C, T/T, PayPal Supply Ability : 500 Sets/Month
Place of Origin: China Brand Name: 10M
Certification: SGS Model Number: 10M45FT

Detail Information

Features: Lightweight, High Strength Tube Material: Telescoping Carbon Fiber Tubing
Clamp Material: CFR Nylon, Aluminum Usage: Windows Cleaning Waterfed Pole
Extended Total Length: 5000mm. (Tolerance ± 10mm.) Total Length Collected:: 1360mm. (Tolerance ± 10mm.)
Wall Of The Tubes: 1mm. (Tolerance ± 0.2mm.) Fiber: Carbon 3K 200 Gr / M2 Fabric Twill 2x2 (Twill)
High Light:

Telescoping Carbon Fiber Tubing


1360mm Length Carbon Fiber Tubing


Filming Carbon Fiber Telescopic Pole

Product Description

Customized Roll Wrapped Round Telescoping Carbon Fiber Tubing - High Strength


Telescoping Carbon Fiber Tubing:

One of the most established areas of our business is the design and manufacture of telescopic carbon fiber tubes.

For applications that require working at a distance, minimizing component weight is essential to improve maneuverability and ease of operation. At up to a 5th of the weight of steel, and many times stronger, composites are therefore ideally suited to this purpose.


Designed for special applications, these lightweights, very long, Telescoping Carbon Fiber Tubings are suitable for a wide variety of uses. Made with high-modulus, high-strength, carbon fiber tubing, poles weigh 40% less than equivalent fiberglass poles.


These lightweight poles are the lightest very long poles available. Using spring button locks in a fixed housing provides a positive lock at every segment, with every other segment able to double lock with the previous, allowing poles to be used fully locked at less than maximum length.


Poles may be used with a variety of tip end fittings or adapters:

  • Button tip (standard) spring button suitable for Lamp Changers & Adapters.
  • GPS tip 5/8 x 11 thread suitable for most pole-mounted electronics.
  • Universal Mount Adapter, a toothed ring with a wing screw. Special tools include a camera mount, a wide variety of hooks, forks, pins, tools, and other custom devices. Wireless 1oz VGA camera available, special order. Warning, tip maximum load is only 16oz for a fully extended pole.
  • Camera Mount Adapter, normal 1/4-inch thread with screw lock. Warning, tip maximum load is only 16oz for a fully extended pole.
  • Broom Thread Adapter, normal threads for the mop, brush, squeegee, or other cleaning tools.
  • Custom tools or miniature electronic devices may be modified to fasten to the end of the pole.

Perfect for:
- Cleaning.
- Pruning
- Fumigation.
- Filming (image and sound).
- Advertising.
- Probes
- Etc.

Telescoping Carbon Fiber Poles is an electrically conductive material, so you have to take into account the necessary preventive measures depending on its use. It is recommended to use the fiberglass grip section to serve as an insulator.


Detailed Size:

Warning section 100mm Lgth
Top section(smallest) 22OD18ID
Section2 26OD2260ID
Section3 3030OD2690ID
Section4 3440OD31ID
Section5 3880OD3520ID
Section6 4330OD3970ID


• Extended total length: 5000mm. (Tolerance ± 10mm.)
• Total length collected: 1360mm. (Tolerance ± 10mm.)
• Outside diameter of the larger tube: 31mm. (Tolerance ± 0.2mm.)
• Wall of the tubes: 1mm. (Tolerance ± 0.2mm.)
• Total weight: 812gr. (Tolerance ± 50gr.)
• Fiber: carbon 3K 200 gr / m2 Fabric Twill 2x2 (Twill)
• Resin: Epoxy
• Orientation of the fibers: Bidirectional
