Light Weight 100% 3K Carbon Fiber Sheet 500 X 500mm Carbon Sheet

Product Description

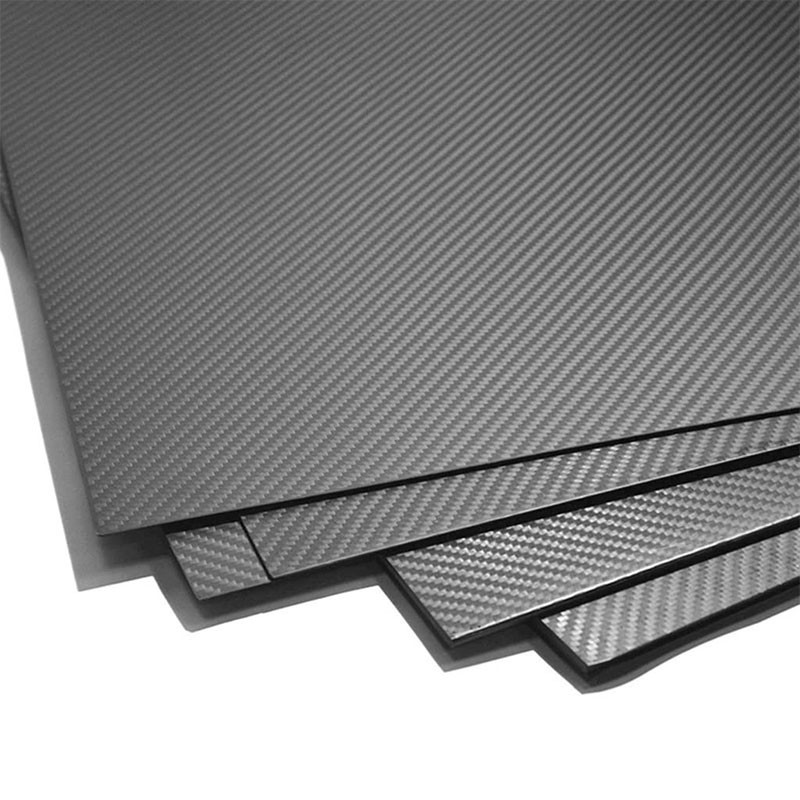

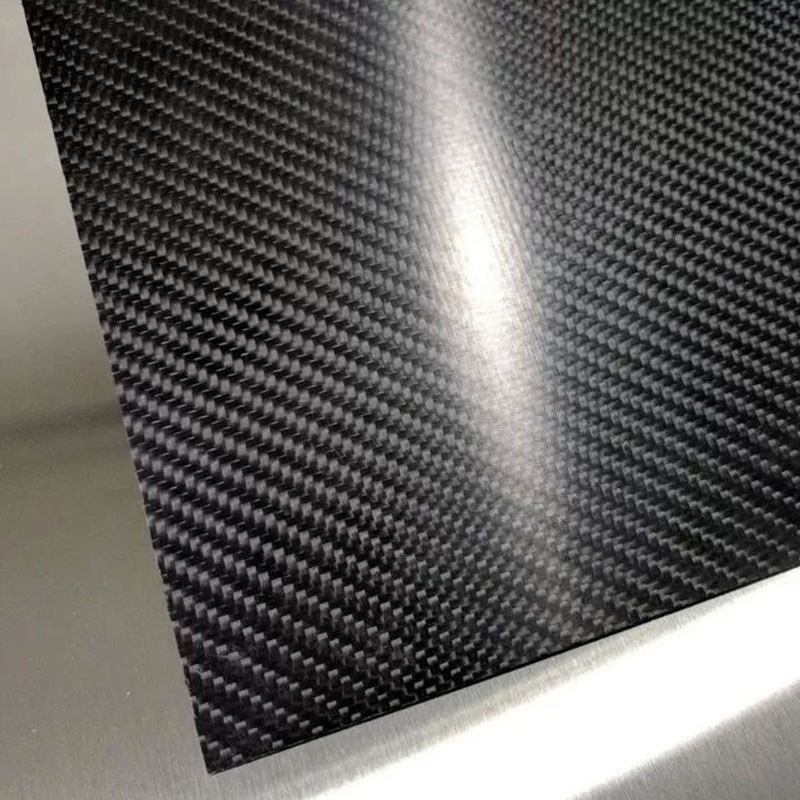

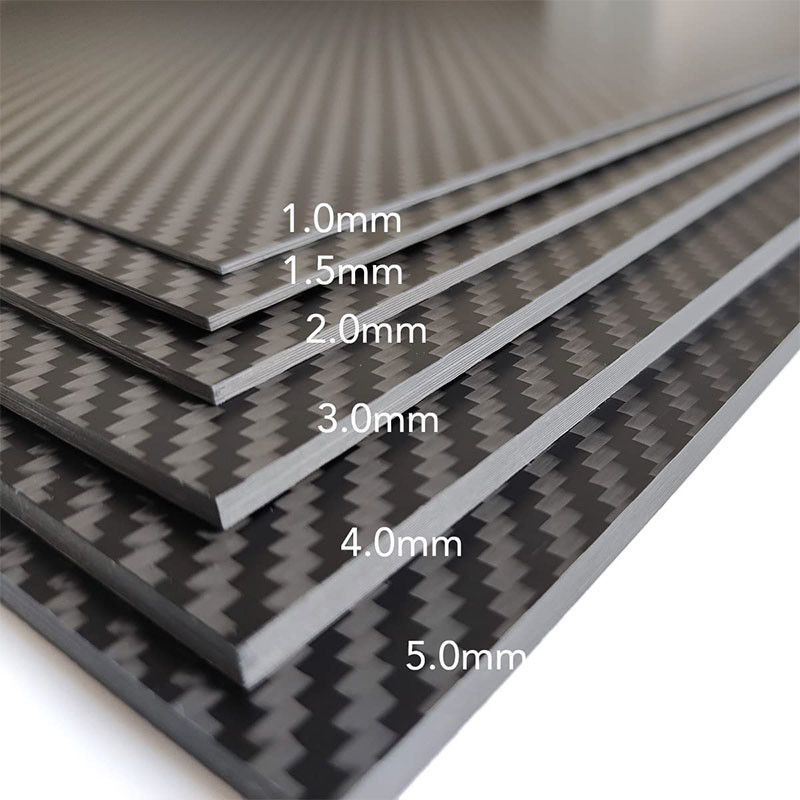

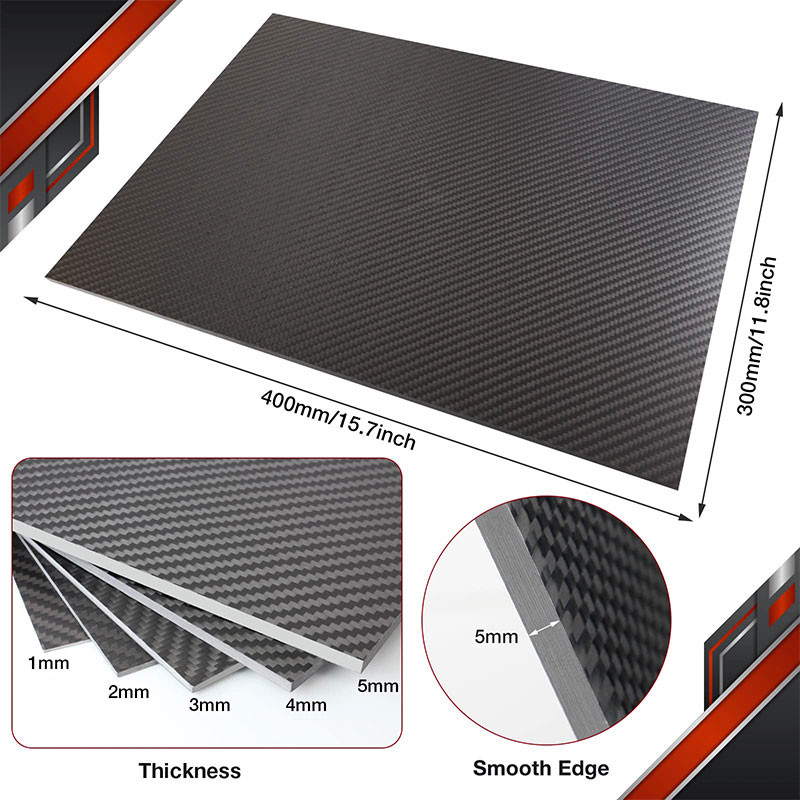

Light Weight 100% 3K Carbon Fiber Sheet 500 x 500mm | Carbon Sheet

Our 500x500mm high-quality carbon fiber sheets are made from 100% pure carbon without any filling material, These carbon fiber plates are finished with a twill or plain, matte, or gloss surface on both sides. The sheets are made with layered sheets of carbon fiber and resin, making them the same strength all the way through, so we can easily make various thicknesses for you.

Carbon fiber is usually combined with other materials to form a composite. When combined with epoxy resins and wound or molded it forms a carbon-fiber-reinforced polymer (often referred to as carbon fiber) which has a very high strength-to-weight ratio and is extremely rigid although somewhat brittle, usually called CFRP.

Our 500 x500mm carbon fiber sheet is manufactured using 100% carbon fibre reinforcement and epoxy resin matrix, cured under high pressure at high temperature, making them high strength and flat. The inner material is 0/90 (Balanced) Unidirectional carbon fiber prepreg without any filling materials, The surface material is 2 x 2 3K (3,000 filaments) twill or plain weave carbon fiber prepreg.

Application

Our 500x500 carbon fiber sheets are ideal for cutting to these products:

• FPV/UAV multi-axis aircraft, drone frames made of carbon fiber material with high strength and lightweight, so they are fast and anti-wrestling.
• Robot arms, improve production efficiency, because the carbon fiber composite material is lightweight, so it’s easy to carry.
• Cutting to carbon fiber products.
• RC car chassis.
• High-end sports equipment and surface decoration.

Single-Sided Carbon Fiber Plate Specification:
