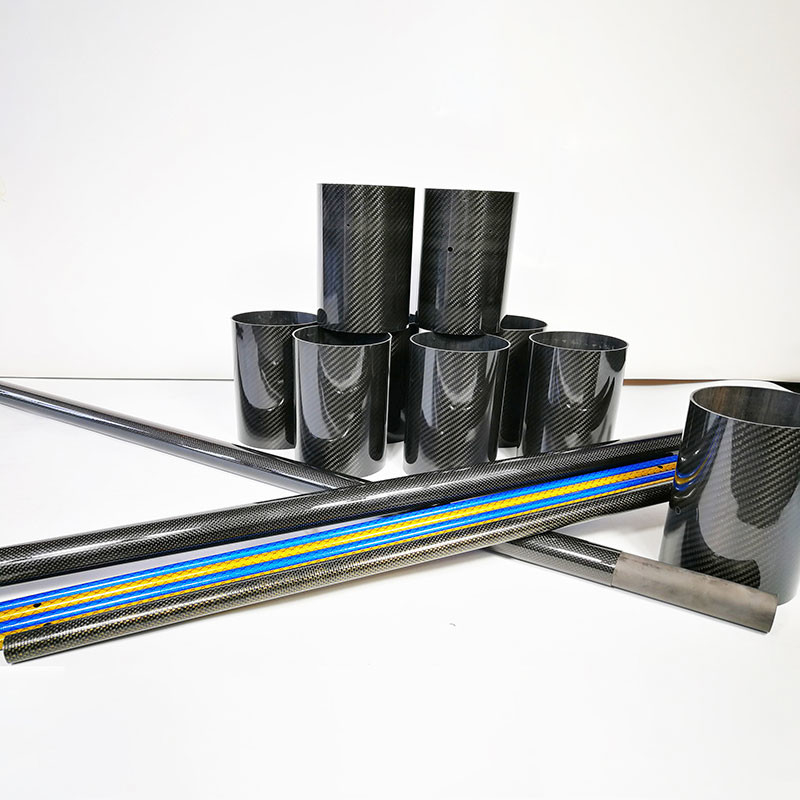

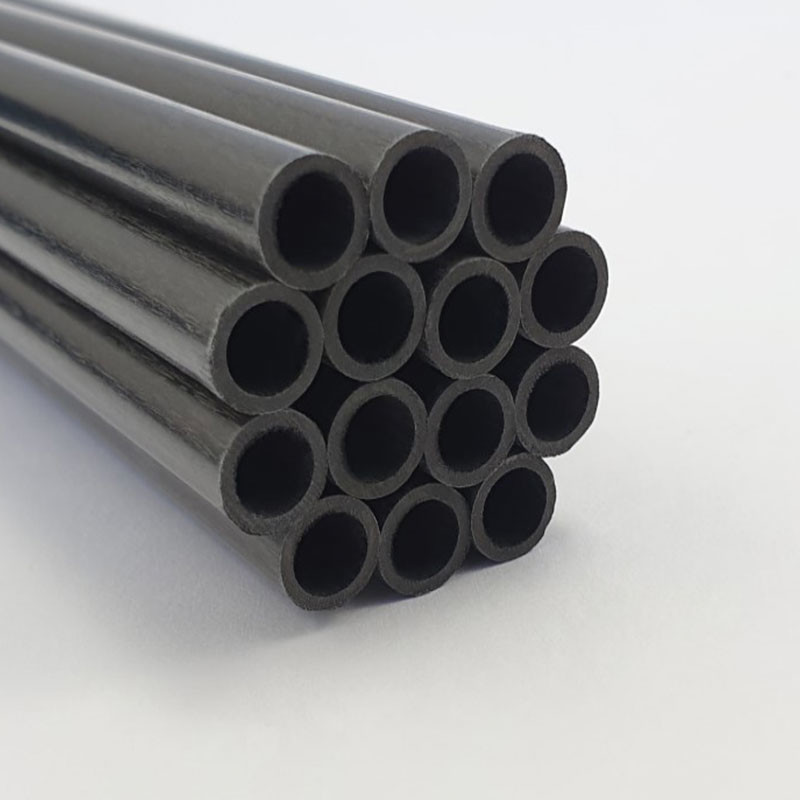

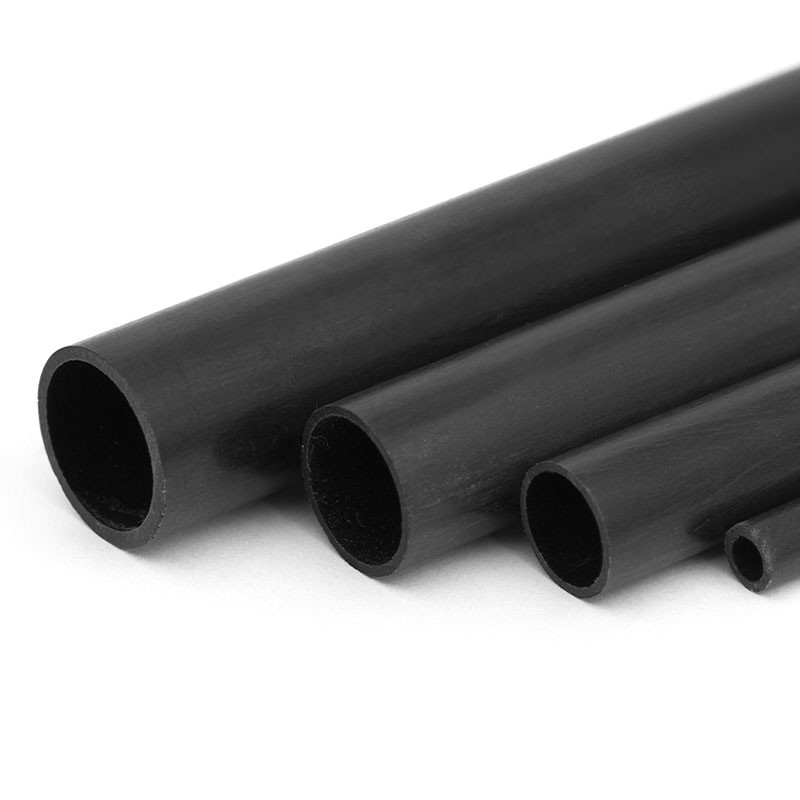

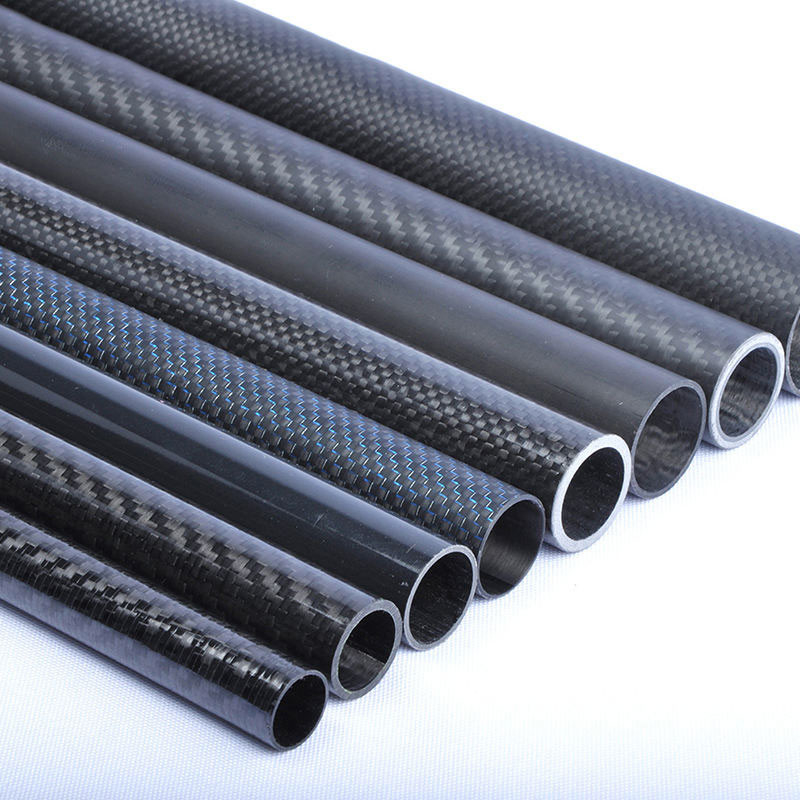

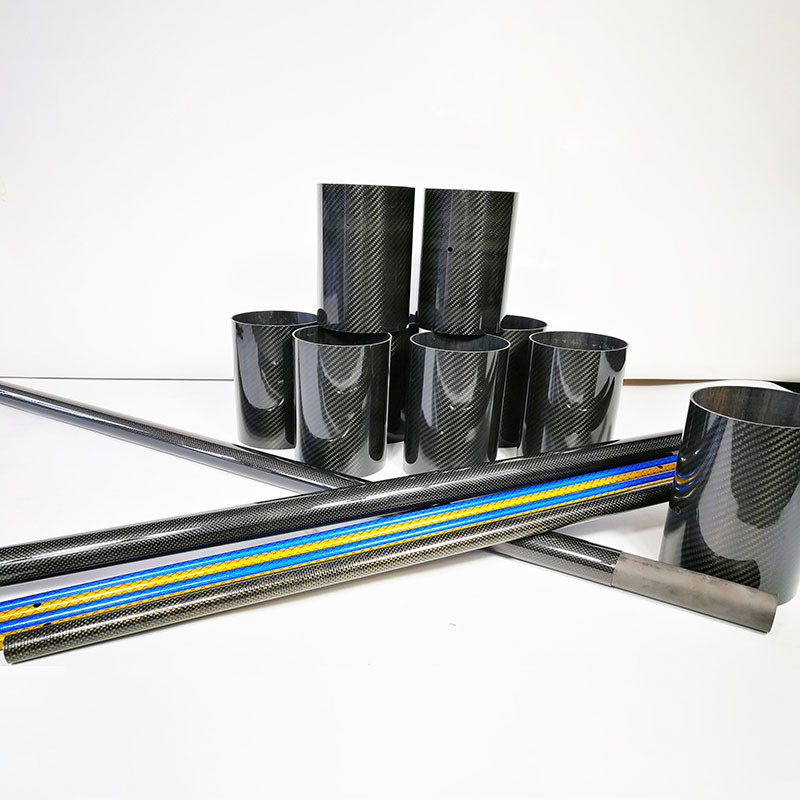

Customized Multiple Purpose Roll-Wrapped Carbon Fiber Tube / Tubing / Pipe / Rod

Product Description

Customize Multiple Purpose Roll-Wrapped Carbon Fiber Tube/Tubing/Pipe/Rod

A Carbon Fiber Composite Tube refers to a cylindrical structure made from a composite material consisting of carbon fibers embedded in a matrix, typically epoxy resin. Carbon fiber composites are known for their high strength-to-weight ratio, durability, and versatility.

Here's a general description of a Carbon Fiber Composite Tube:

1. Material Composition: Carbon Fibers: These are high-strength, thin fibers derived from carbon. They provide exceptional strength and stiffness to the composite material. Matrix: Epoxy resin or another polymer matrix holds the carbon fibers together, providing cohesion and transferring loads between the fibers.
2. Manufacturing Process: The production typically involves laying up layers of carbon fiber fabric or unidirectional fibers in a specific orientation. Resin is then applied, and the composite is cured to create a rigid and durable structure.
3. High Strength-to-Weight Ratio: Carbon fiber composites offer an excellent strength-to-weight ratio, making them suitable for applications where strength is crucial, and weight needs to be minimized.

4. Lightweight Nature: The inherent lightweight nature of carbon fiber makes composite tubes ideal for applications where reducing overall weight is a priority.

5. Versatility: Carbon fiber composite tubes find applications across various industries, including aerospace, automotive, marine, sports and recreation, robotics, and industrial sectors.

6. Corrosion Resistance: Carbon fiber is inherently resistant to corrosion, contributing to the durability and longevity of the composite tube.

7. Customization: Manufacturers often offer customization options, allowing for variations in diameter, length, wall thickness, and other specifications to meet specific project requirements.

8. Applications: Carbon Fiber Composite Tubes are used for structural components, support structures, and other applications where a combination of strength, durability, and lightweight design is essential.

What carbon fiber tube you can buy from us?

LIJIN manufacturing and wholesale multiple finishes with standard modulus carbon fiber tubes offer excellent strength and stiffness, it is 1.5X stiffer than aluminum and is the most economical grade composite tube. Finishes available be twill gloss and twill matte.

How to make carbon fiber tubing?

Our carbon fiber round tube is rolled unidirectional carbon fiber fabric into a mandrel, and roll wrapped a 3k finish fabric exterior. Unidirectional carbon fiber is the structural backbone of all our tubes, the 3k fabric weave that gives carbon fiber tubes their traditional ”carbon fiber look” is only the outside layer and helps with durability. Usually, any wall thickness can be made by changing the number of layers or combining different prepreg thicknesses (usually 0.15mm- 0.25mm thick per layer).

Our round tubes typically use layups designed for optimal performance in a wide range of conditions. We use 100% pure carbon fiber materials making carbon fiber tubing in a wide variety of diameters and lengths. Common diameter includes 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm carbon fiber tube, ... 40mm carbon fiber tube, our round tube standard length is 1000mm, If you need a carbon fibre tube with other lengths or diameters, or need colored carbon fiber tube, do not hesitate to contact us, we can cut and custom carbon fiber tubes to your specified.

Whether used in the construction of aircraft components, automotive parts, sporting equipment, or other engineering applications, Carbon Fiber Composite Tubes are valued for their exceptional mechanical properties and versatility. When considering such tubes for a specific application, it's crucial to communicate with manufacturers to ensure that the tube's specifications meet the project's requirements.
