Flexibility 100% Real Carbon Tubes 3K Wrapped Carbon Fiber Composite Tube
Contact Person : Terry.Chang, Grace Gu
Phone Number : +86-13681832139
WhatsApp : +8619537611058
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Normal Corrugated Carton Packing for International Shipment | Delivery Time : | 7 working days after receiving Order Pay |
Payment Terms : | T/T, Western Union, L/C | Supply Ability : | 1500pcs month |
Place of Origin: | China | Brand Name: | Tanku |
---|---|---|---|
Certification: | SGS, ROHS | Model Number: | OEM |
Detail Information |
|||
Product Name: | Carbon Fibre Roll Wrapped Tube | Shape: | Round/Oval |
---|---|---|---|
Pattern: | 3K Twill, Accept 1K, 2K, 4K, 5K, Etc | Material Finish: | 3K Glossy Twill Surface |
Production Process: | Roll-Wrapped | Weight: | 60g/m |
Density: | 1.5g/cm3 | Material: | 3K Roll Wrapped Carbon Fiber Twill Matte Finish |
High Light: | Glossy Twill Carbon Fiber Rod,Oval Roll Wrapped Carbon Fiber Tube,100% 3K Carbon Fiber Pipes |
Product Description

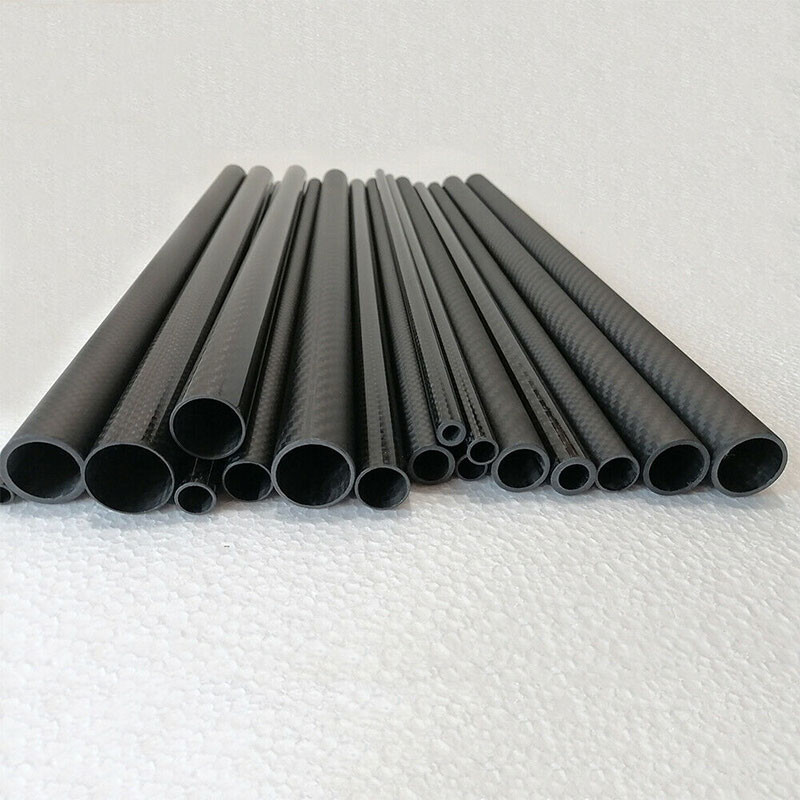

Small Tolerance Range Flexibility 100% 3K Carbon Fibre Roll Wrapped Tube
Roll wrapped carbon fiber tubes is the process we use for composite tubes that are smaller and shorter in length. Rock West Composites utilize prepreg materials, including carbon fiber, fiberglass, kevlar, flax, and hybrids when roll-wrapping tubes. This manufacturing process is primarily used for producing small to medium diameter tubes of 0.250" through 12.0" diameter and lengths up to 8' long. Rolled tubes are ideal for applications that require the highest bending stiffness and lowest weight, such as telescoping poles, automation robotics, idler rollers, and UAV components.
These tubes are produced by wrapping pre-impregnated (pre-preg) carbon fibre under tension around a mandrel and then cured in a specialist oven. This produces a very consistent and high-quality finished tube for many different applications such as building or repairing UAVs, robotics, and RC products. Tubes can be sourced in many different sizes to those shown - please get in touch if you require a different or custom size.

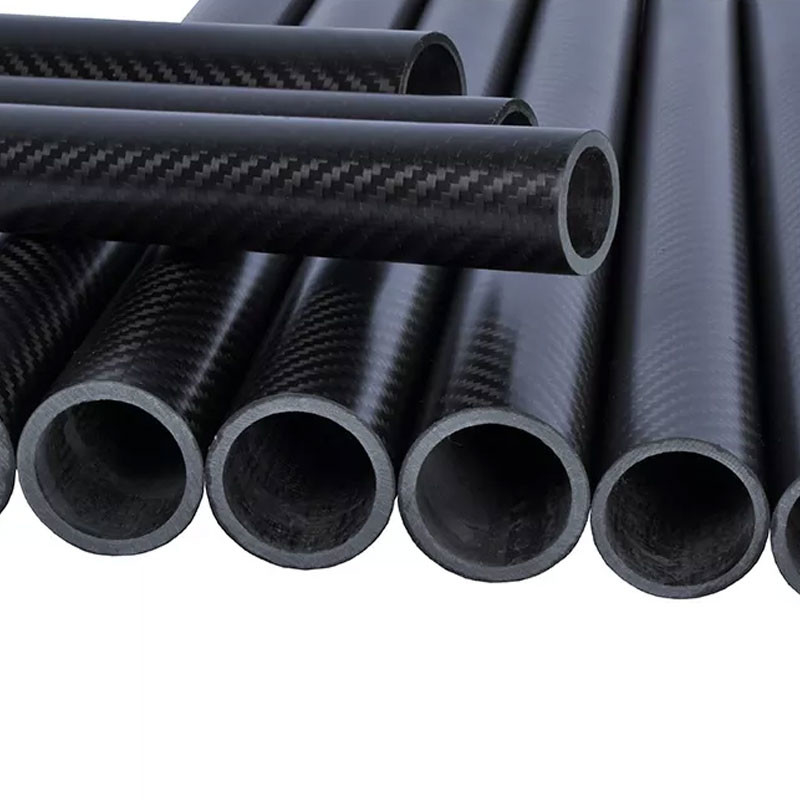

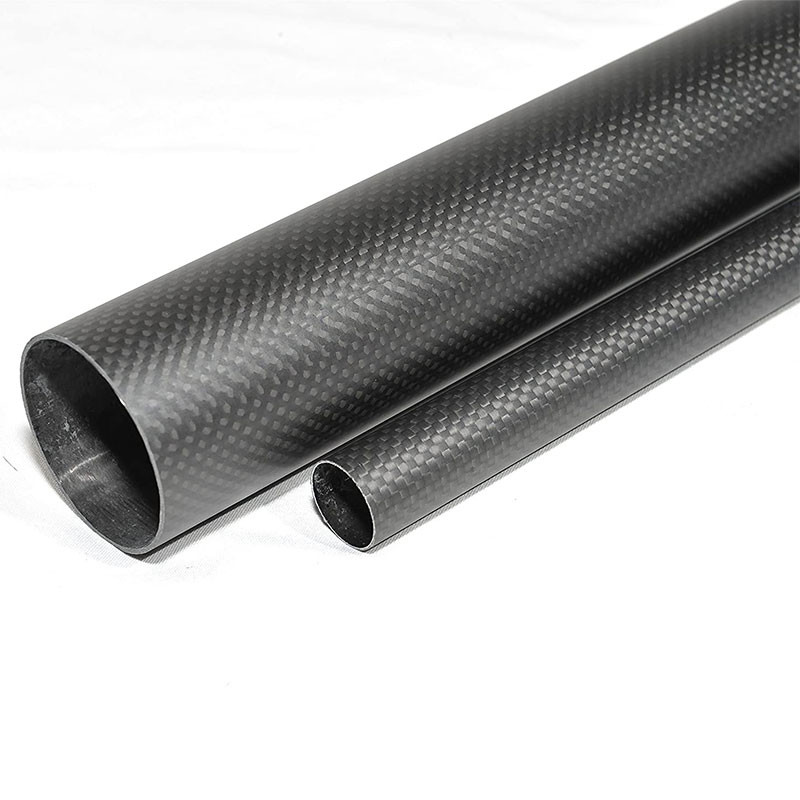

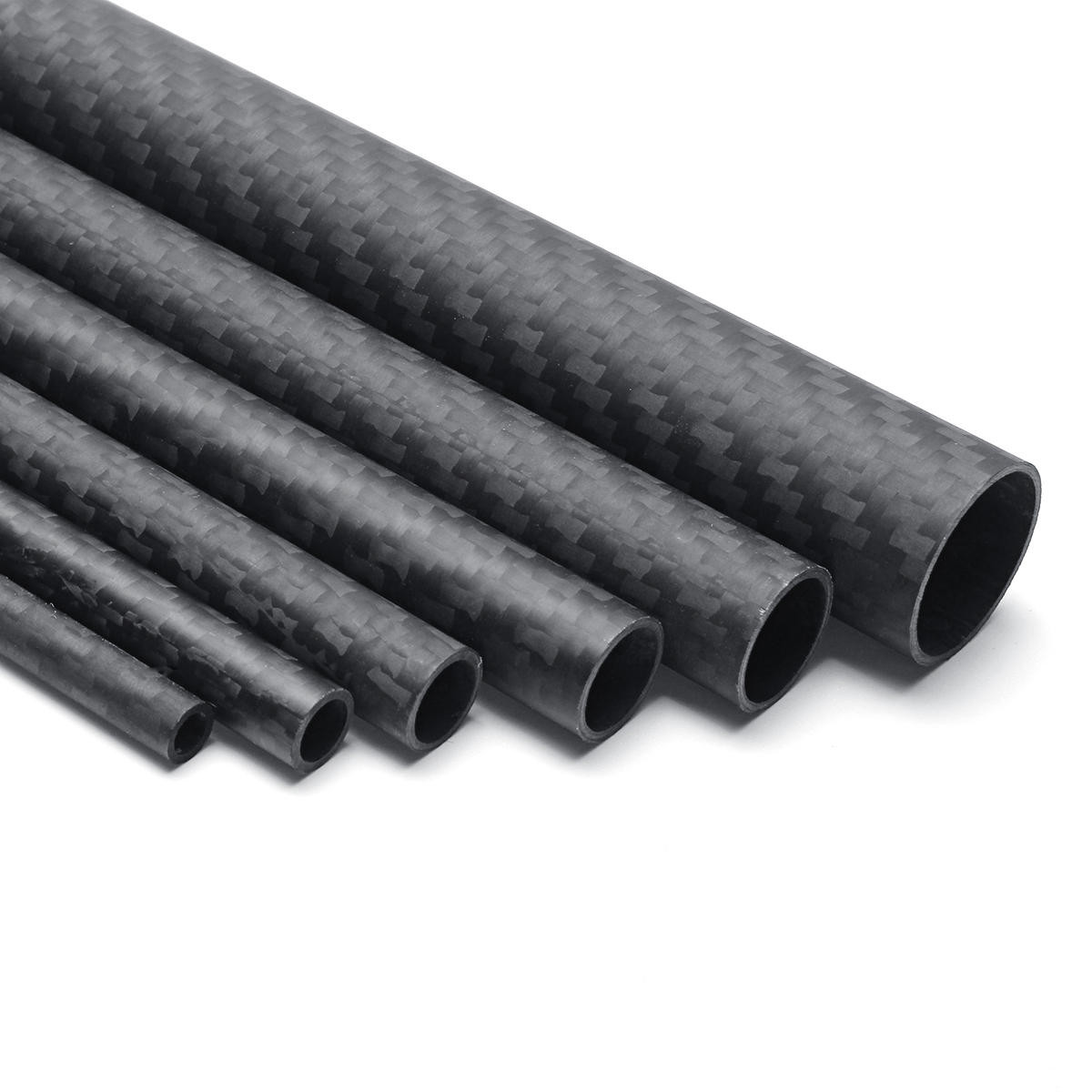

Carbon Fiber Twill Roll Wrapped Tubing have an outermost layer of 2x2 twill fabric which gives the tube a few advantages including better machinability, reduced splintering and the decorative aesthetics associated with carbon fiber. All our roll wrapped tubes feature a slight rib texture spiraling along their length where shrink-tape has been used in the manufacturing process. If need be, this can easily be sanded and polished away.
Features/Benefits
Uses Include
Material | Carbon Fibre Roll Wrapped Tube |
Shape | Round/Oval |
Technology | Roll-wrapped or pultrusion |
Dimension | The existing inner diameter of the mold is 4mm-50mm with a length of 1m. |
Customizable size: The maximum diameter can be 200mm, the longest can be 3m. | |
Surface | Black glossy/matte surface/painted |
Glossy 3k weave/matte 3k weave | |
Color metal wire weave | |
Feature | lightweight, high strength |
Working Temperature | Usually, -30-120 degrees, if special requirement, please let us know. |
Place Of Origin | China |
Function | Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products |
Tolerance | Diameter Tolerance: +/-0.1mm |
Length Tolerance | +/-1mm |
Typical Uses
Roll wrapped tubes are better for applications where the tube may be subject to a variety of forces including bend, twist and crush. These light 12mm tubes are suitable for demanding engineering applications including scale aircraft, gliders, helicopter U.A.V.’s, lightweight frames or structures, tubular vessels, poles, column supports or any construction that requires strength, rigidity and lightness yet appearance is also important. They are equally suited to other precision applications like robotics and automation.
